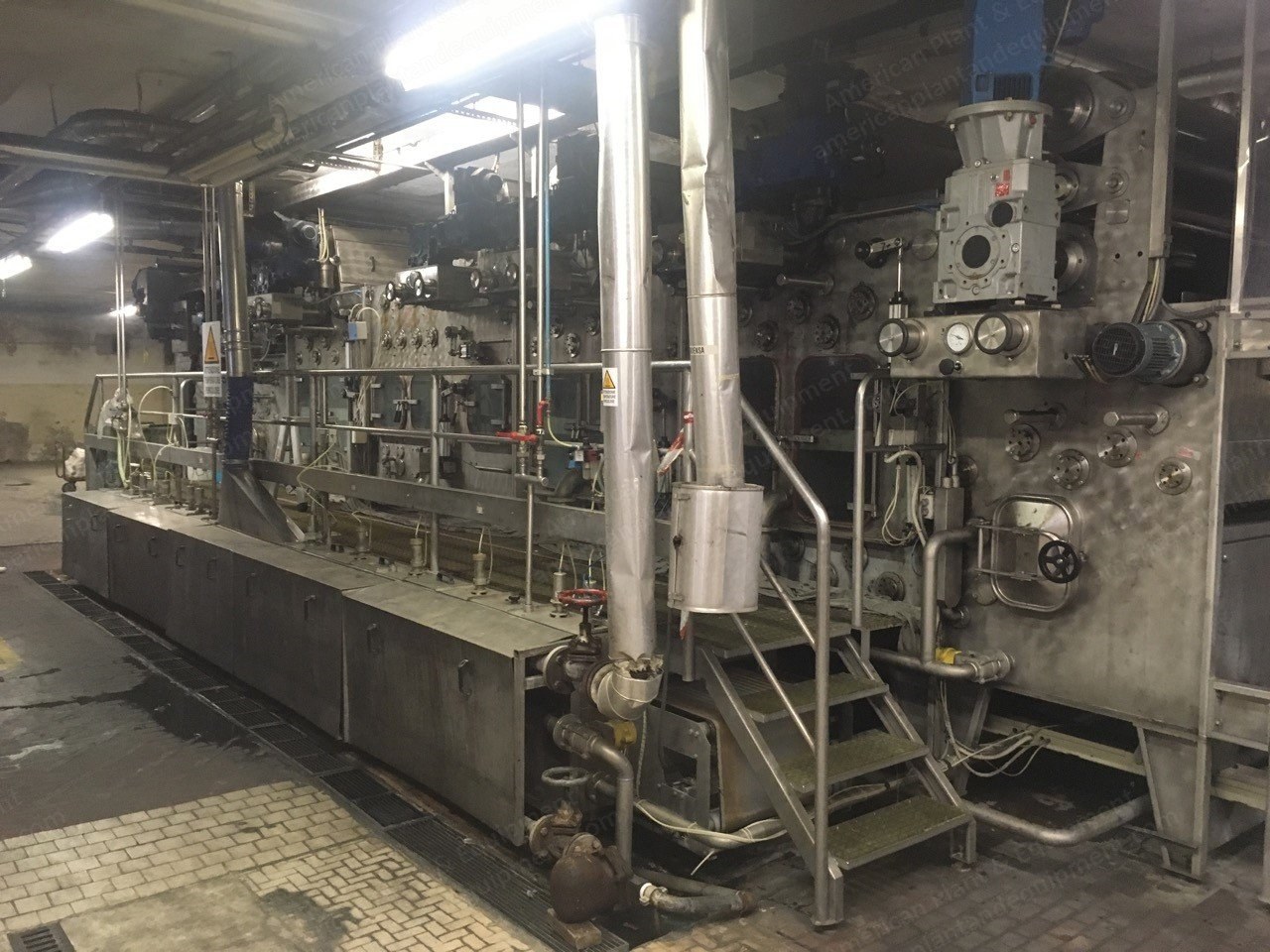

Cimi, Lavanova 2000, 1995, Continuous Washing Line, 1800mm Working Width, 5 Steam Heated Tanks

Cimi, Lavanova 2000, 1995, Continuous Washing Line, 1800mm Working Width, 5 Steam Heated Tanks

Description

  1. Overview
    1. Continuous washing line in open width
    2. Brand: Cimi
    3. Model: Lavanova 2000
    4. Year: 1995
  2. Specifications
    1. Rollers width: 2000 mm
    2. Useful working width: 1800 mm
    3. 5 steam heated tanks plus 1 tank for cooling (thermic shock)
    4. Introduction of the fabric by entry frame with adjustable braking device
    5. Slat widening and centering device with fluorescent bars (FLC)
    6. Double brushing unit
    7. Additional widening device with oscillating arms
    8. Belt filtering system on the whole length of the machine
    9. Exit of the fabric in big roll or plait
    10. Electric control board

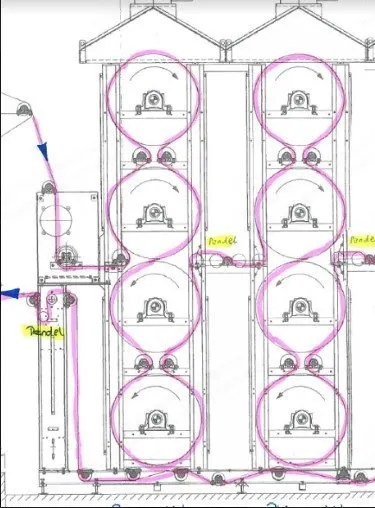

    11. Dancing rollers with loading bars
    12. The main motors of the washing line are controlled by inverter
    13. Thermic recovery system, which recovers the heat of the draining water, heats the cold and clean water and sends it again into the machine
