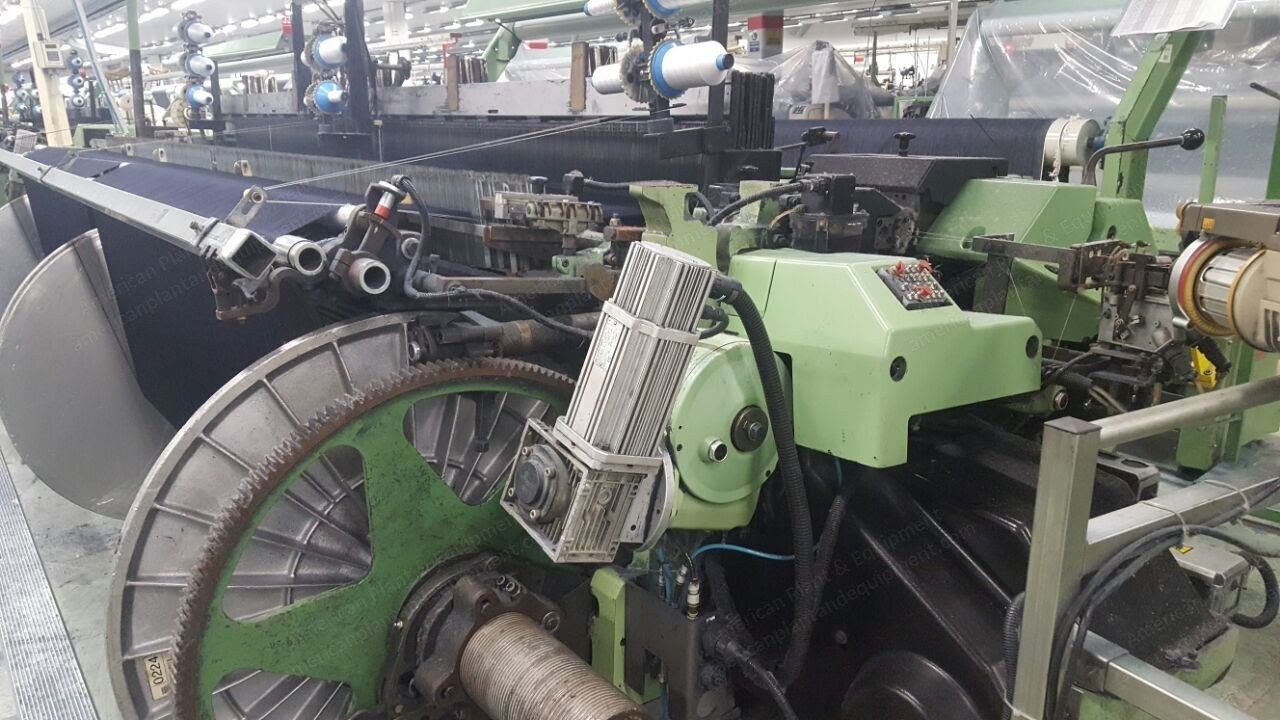

Sulzer, PU 153 VSD 110 KR D1, 153" (390cm) Width, 4 Colors, Staubli Dobby

Sulzer, PU 153 VSD 110 KR D1, 153" (390cm) Width, 4 Colors, Staubli Dobby

Description

  1. Overview
    1. Manufacturer: Sulzer
    2. Type: PU 153 VSD 110 KR D1
    3. Machine type: Projectile weaving machines
    4. Weft colors: 4
    5. Dobby: Staubli 2430kr2, 18 shaft capacity
    6. Shafts installed: 12 (7 machines) and 18 (1 machine)
  2. Specifications
    1. Split beam execution
    2. Warp beam flange diameter: 940 mm
    3. Heald frames: 6 per loom
    4. Warp beams: 1.5 per loom, diameter 940 mm
    5. Cloth rollers: 1.5 per loom
    6. Heddles: 5000 per loom
    7. Droppers: 5000 per loom
  3. Accessories per Loom
    1. Side tuck-in units
    2. 1 weft accumulator with el panel for 1 color loom
    3. 2 weft accumulators with el panel for 2 and 4 color looms
  4. Condition
    1. Machines are in good and complete working condition
    2. Presently running
