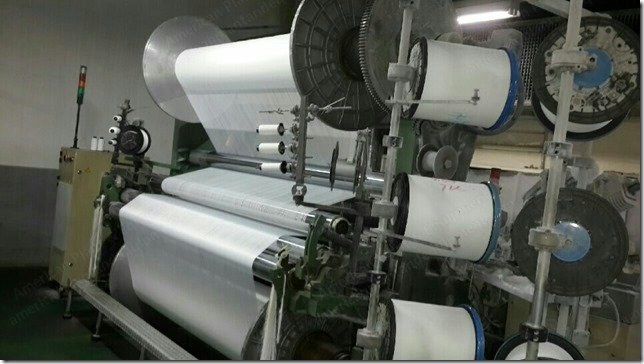

Picanol, Gamma-220-4-R, 1999, Rapier Looms, 2200mm and 2500mm Width, 4 Colors, Staubli 2670 Dobby

Picanol, Gamma-220-4-R, 1999, Rapier Looms, 2200mm and 2500mm Width, 4 Colors, Staubli 2670 Dobby

Description

  1. Overview
    1. Picanol rapier looms
    2. Type: Gamma-220-4-R with double beam
    3. Year: 1999
    4. Width: 2200 mm – 12 sets (double beam – 12 sets)
    5. Width: 2500 mm – 12 sets
    6. Without sumo (clutch type)
    7. Processing: cotton
  2. Specifications
    1. Staubli electronic dooby 2670 type
    2. 16 to 20 shafts
    3. 4 colors
    4. Electronic let-off
    5. Electronic take up
    6. Leno selvedge
    7. Temple type – normal
    8. Number of back rest roll: 2 pieces
    9. Number of weft feeder: 4 pieces
    10. Number of heald frame: 12 pieces
    11. Number of heddle wire: 6,000 pieces
    12. Number of warp stop bar: 6 pieces
    13. Number of dropper wire: 5,000 pieces
    14. Number of warp beam: 1.5 pieces (914 mm diameter)
    15. Cloth take-up type: on loom
    16. Number of cloth roller: 1.5 pieces
    17. Color selector type: quick step
    18. Voltage: 220 V
  3. Configuration
    1. 12 sets for width 220 cm with double beam attachment for fancy fabrics
    2. 12 sets for width 2500 mm
    3. 34 sets for width 2200 mm – single beam as normal
  4. Condition
    1. Running at mill floor
  5. Additional Information
    1. More information is available upon request
