NovaStar, R-95-V-EA-ACR/530, 1850mm Working Width, 20 Colors, Gas-Heated Dryer

NovaStar, R-95-V-EA-ACR/530, 1850mm Working Width, 20 Colors, Gas-Heated Dryer

Description

  1. Overview

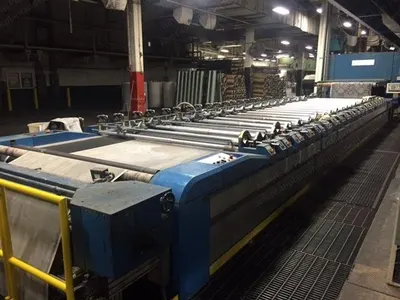

    1. NovaStar rotary screen printing machine
    2. Type: R-95-V-EA-ACR/530
    3. With original NovaStar open screen bearing system and magnet-system “plus” application technology protected by international patent and trademark rights
    4. Including individual ac-servo-motor screen drive with electronic synchronized control for each printing station
  2. Specifications
    1. Machine printing width maximum: 1850 mm (72 inches)
    2. Printing width supplied: 1490 mm (59 inches)
    3. Number of colors: 20
    4. Repeat range: 64-120.6 cm (25-47.5 inches)
    5. Repeat supplied: 688 mm (27 inches)
    6. Mechanical machine speed: maximum 100 yards/minute
    7. Accuracy of the machine drive: +/- 0.1 mm over the total table length
    8. Number of strands: 1
    9. Operator side: right
    10. Color feeding: left
    11. Feeding of narrow fabrics: right
    12. Drive side: left
    13. Machine color: RAL 5019 (blue)
    14. Customer service voltage: 3x 480 V, 60 Hz
    15. Customer control voltage: 110 V, single phase
    16. Permissible fluctuation: +/- 10%
  3. Included Area
    1. Fabric entry equipment
    2. 1 scray
    3. 1 operator platform
    4. 1 Kaelin lint removal system, type vacuuming
    5. 1 weft straightener
  4. Printing Machine
    1. Machine frame
    2. Main DC for printing blanket, speed = 100 meters per minute

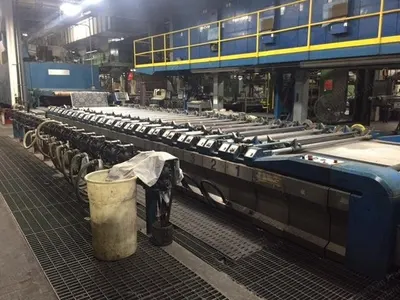

    3. Twenty printing stations with magnet table, magnet system “plus”
    4. Pneumatically operated screen tensioning
    5. Automatic color supply units with electrically operated level control
    6. 1 printing blanket (relatively new Habasit belt with approximate 6 weeks runtime)
    7. 1 printing blanket guiding system
    8. 1 printing blanket tensioning device
    9. 1 printing blanket gluing device
    10. 1 printing blanket washing device
    11. Digital screen drives with servo motor and motorized longitudinal repeat adjustment
    12. 1 computer control system, type ACR
  5. Available Accessories
    1. 15 color pipes
    2. 19 sets 27 inches repeat gears + tension rings
    3. Assorted parts + magnet roll rods
  6. Drying and Exit Equipment

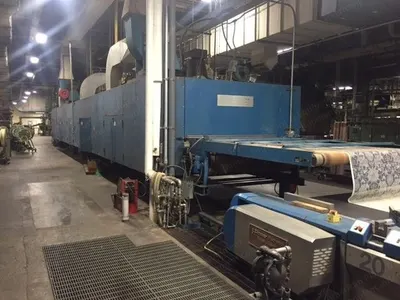

    1. 1 gas-heated dryer, type TR III
    2. 10 sections
    3. Water evaporation capacity at 180 degree C (356 degree F): 2040 kg/hour (4497 pounds per hour)
    4. Natural gas heating
    5. 3 passages with 3 times air blowing onto the fabric, or 1 passage with two
    6. 3 exhaust fans with 2-speed AC motors
    7. 2 conveyor belts
    8. 1 inspection stand
