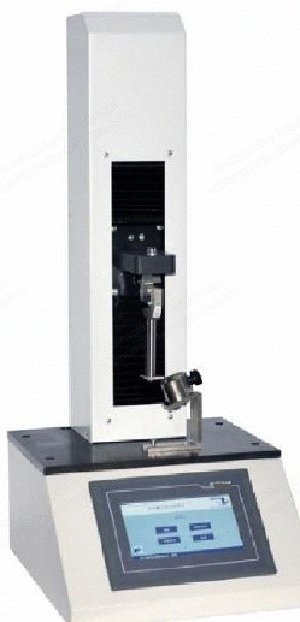

Description Overview Medical packaging tester designed for the measurement of force properties of a variety of medical packaging materials Performs tensile, compression, strength, tear, opening, penetration, breaking and pull tests of polymers, bags, ampoule, rubber stopper, syringe, needle Multiple fixtures available Versatile and indispensable to medical packaging facilities Control and Operation Hmi touch screen operation Plc control realizes precise control of the driving system and the overall performance of the instrument Precision ball screw for accurate speed and displacement Test speed is adjustable Dual direction test are available Limiting device and automatic returning Microprinter Professional software (optional) Specifications Test range: 200n (standard) Speed: 1 to 500mm/m Stroke: 350mm Dimension (mm): 400(l) x 340(w) x 800(h) Power: ac 220v 50hz Applications Penetration test of rubber stoppers in antibiotic bottles and hypodermic needles Fracture strength test of ampoule bottles Leak test of plastic packages under external pressure Connection force test between hypodermic needle and needle hub/cap Bottle stiffness test Bottle lid puncture test with animated finger Sliding resistance test of pistons Leak test of plastic packages Included Multiple fixtures available for multiple type of pulling and compression tests
