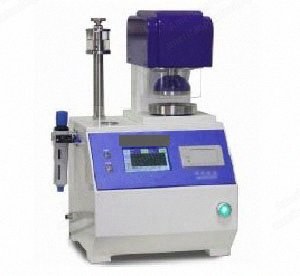

Description Overview Five inch touch screen operation High strength high-pressure oil circuit sealing system with double seal knob Delayed pressurization and pressure relief control Equipped with water vapor filter device, protection circuit device stability Equipped with calibration and manual pressurization and pressure relief control systems The cylinder part, the upper and lower clamping parts are 304 stainless steel With safety cover, and power supply anti-interference protection module Specifications Force resolution: 1/100000 Data collecting: 400/s Force accuracy: +/- 0.1% or less Resolution: 0.01 kpa Deformation error: ≤1mm Plates parallelism: ≤0.25mm Diaphragm resistance: (9±0.2) mm/(30±5) kpa Plate diameter: upper: 30.5±0.1mm, lower: 33.5±0.1mm (for paper) Plate diameter: upper: 31.5±0.1mm, lower: 31.5±0.1mm (for board) Transmit hydraulic volume: 95±5ml/min (for paper), 175±5ml/min (for board) Clamping force: 100kpa to 1200kpa (adjustable) Unit conversion: kg/cm2, kpa, lbf/in2
