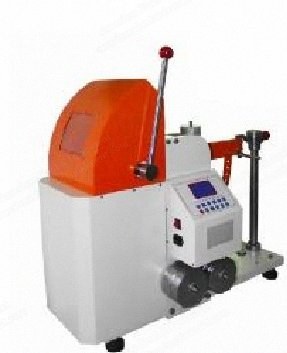

NovaStar, MC208, Puncture Strength Tester, LCD Display, 1-48J Test Range, 900x410x800mm (New)

NovaStar, MC208, Puncture Strength Tester, LCD Display, 1-48J Test Range, 900x410x800mm

Description

  1. Features
    1. Lcd display, pvc manual type panel
    2. Pvc menu type operational panel
    3. Microcomputer control with data statistic, storage and printing function
    4. Auto measuring and intelligent judgment, real time display of test result
    5. Four gears adjustable
    6. Protection design and stable performance
  2. Technical Data
    1. Sample size: 25.4 x 25.4 mm
    2. Test range: (1 to 48) J
    3. Four gears: A <6 J; B <12 J; C <24 J; D <48 J
    4. Resolution: 0.001 J
    5. Pressure head: (100 ± 2) kPa
    6. Friction sleeve resistance: <0.25 J
    7. Pyramidal head: edge length 60 mm x 60 mm x 60 mm, height 25 ± 0.7 mm
    8. Dimension: 900 mm x 410 mm x 800 mm
