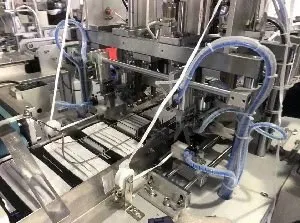

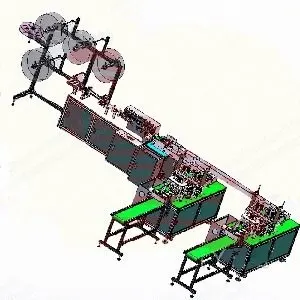

Full-automatic one-time plane mask forming machine used for forming one-time rectangular ear hanging three drawer masks.
One main machine equipped with two ear belt spot welding machines (one for two).
Driving motor is a servo motor, providing high reliability, easy operation, accurate transmission, stable control, adjustable speed, low cost and convenient maintenance.
Especially suitable for the production of high-quality masks.
Specifications
Temperature: 10 to 35 °C, humidity 5 to 35%, no flammability and noncorrosive gas.
Voltage: 220 V.
Power frequency: 50 Hz per 60 Hz.
Total power of equipment: 8.5 kW.
Ultrasonic frequency: 5 to 20 kHz.
Max feeding with overall dimension of equipment: 6100 x 3300 x 1800 mm.
Machine weight: 2 tons.
Production efficiency: 80 to 120 tablets per minute (each working station 60 pcs per minute, as there are two working stations).
Operator: 1 person.
