Cotton Spinning Plant, 31920 Spindles, 1973 to 2013

Cotton Spinning Plant, 31920 Spindles, 1973 to 2013

Description

  1. Overview
    1. Blow room with 2 cotton lines and 2 polyester lines.
    2. Makers: Rieter, Trutzschler, Cherry Hara, Toyoda, Mingcheng, Murata.
    3. Year range: 1987 to 2012.

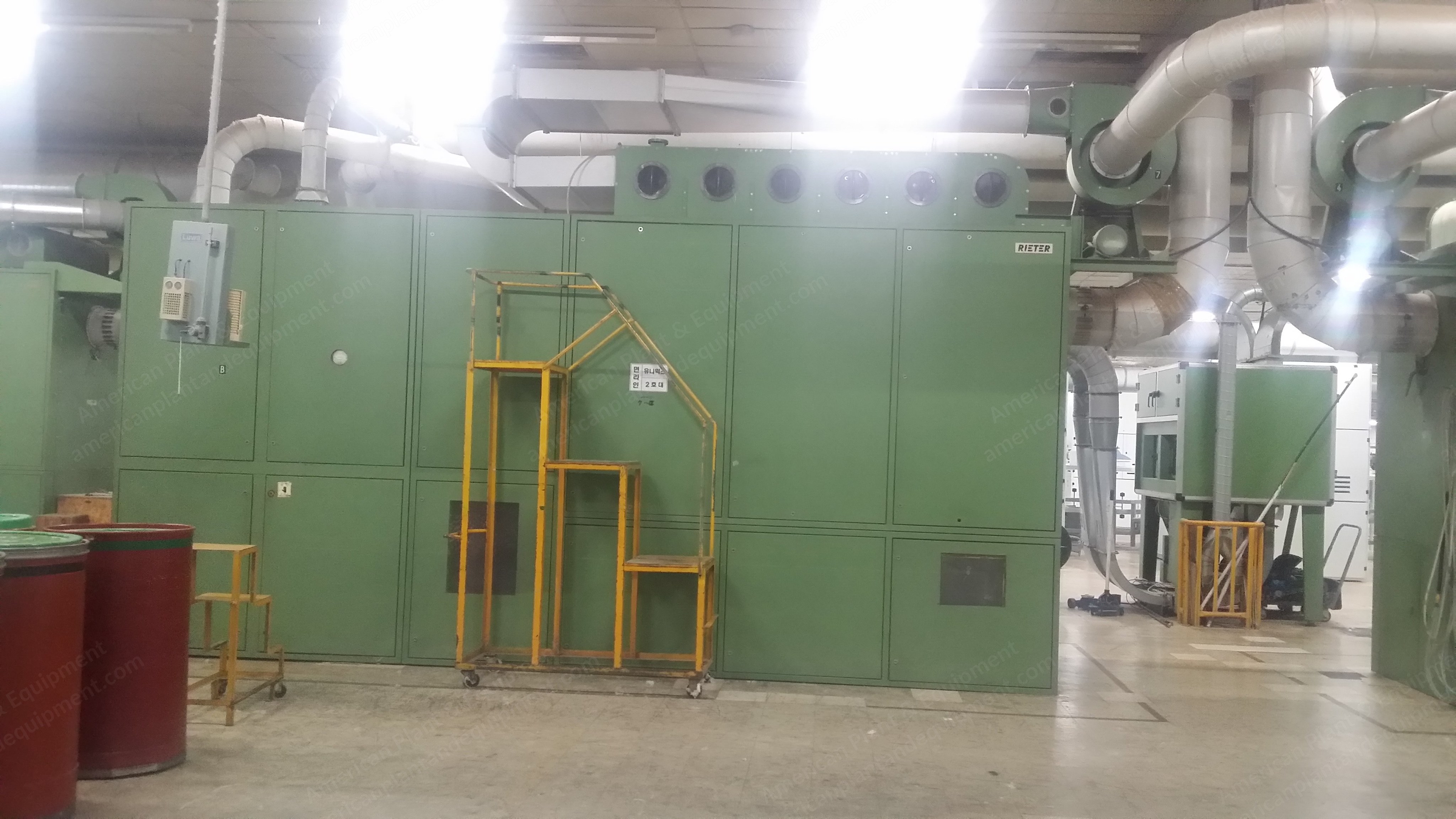

  2. Item 001a: Trutzschler Carding Machine
    1. Type: TCO3.
    2. Year: 2005.
    3. Chute feed: FDK9430016.
    4. 3 licker-in.
    5. Can size: 40 in diameter x 42 in height.
    6. Quantity: 12 sets.
  3. Item 001b: Cherry Hara Hi-Lap Machine
    1. Maker: Cherry Hara.
    2. Type: HL85A.
    3. 2 sets year: 1987.
    4. 1 set year: 1989.
    5. 1 set year: 1990.
    6. Doubling: 20 x 6.
    7. Lap size: 150 x 222.
    8. Draft: 4/4.
    9. Spring.
    10. Spool length: SLM (232), RLM (300).
    11. Quantity: 3 sets.

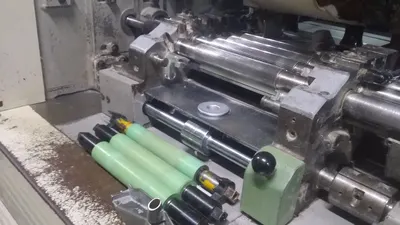

  4. Item 001c: Rieter Comber Machine
    1. Maker: Rieter.
    2. Type: E7/5.
    3. 17 sets year: 1987.
    4. 4 sets year: 1991.
    5. Nips per minute: 250.
    6. Cans: 24 x 48.
    7. Double head: 8.
    8. Draft: 3 over 5.
    9. Quantity: 5 sets.
  5. Item 001d: Toyoda Draw Frame (Long Creel)
    1. Type: DX-7A.
    2. Year: 2002.
    3. Creel: long creel.
    4. Can size: 20 in x 42 in height.
    5. Auto can change.
    6. 2 delivery.
    7. Without auto leveller.
    8. Quantity: 1 set.

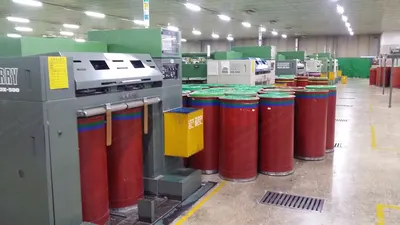

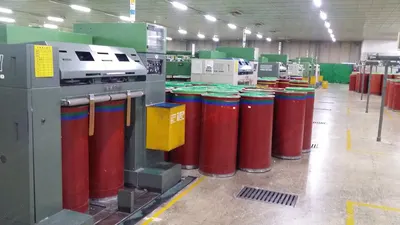

  6. Item 001e: Toyoda Draw Frame (Short Creel)
    1. Type: DX-7A.
    2. Year: 2002.
    3. Creel: short creel.
    4. Can size: 20 in x 42 in height.
    5. Auto can change.
    6. 2 delivery.
    7. Auto leveller.
    8. Quantity: 1 set.
  7. Item 001g: Mingcheng Draw Frame
    1. Type: DV2 and DV2-AL.
    2. Year: 2006.
    3. Can size: 20 x 42.
    4. Draft: 4 over 4.
    5. Auto leveller: 1 set with auto leveller, 2 sets not auto leveller.
    6. 440 V x 60 Hz.
    7. Quantity: 3 sets.
  8. Item 001h: Draw Frame
    1. Type: DX500.
    2. Year: 1988.
    3. Draft: 4 over 5.
    4. Can size: 20 x 42.
    5. With Dogetech auto leveller (year 2005).
    6. 440 V / 60 Hz.
    7. Quantity: 3 sets.

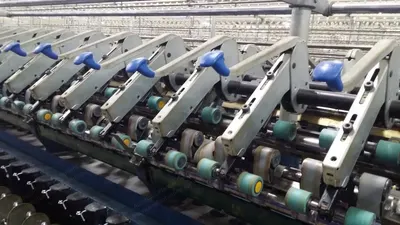

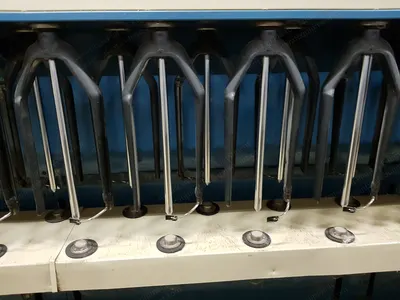

  9. Item 001i: Toyoda Roving Machine
    1. Year: 1987.
    2. Type: FL16.
    3. Number of spindles: 108 spindles.
    4. Drafting: PK1500.
    5. Staff length: 520 mm.
    6. 4 roller version.
    7. With auto tensioner.
    8. 9.5 kW.
    9. Oil bath.
    10. With travelling cleaner.
    11. 440 V x 60 Hz.
    12. With bobbin: 85,000 pcs.
    13. Quantity: 10 sets.

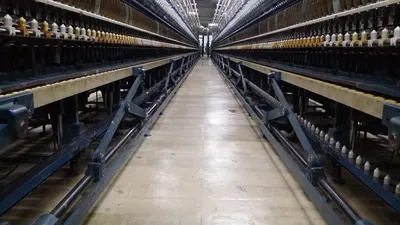

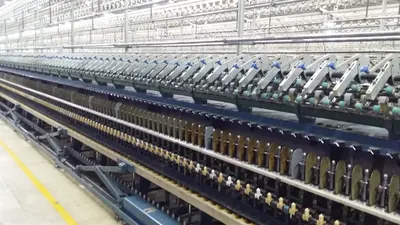

  10. Item 001j: Toyoda Ring Frame
    1. Type: RY-5.
    2. Year: 1987 to 1988.
    3. 24 sets x 864 spindles.
    4. Ring gauge: 75 mm.
    5. Ring diameter: 41 mm (30 sets x 864 spindles), 38 mm (6 sets x 864 spindles).
    6. Spindle: 210 mm.
    7. Bobbin: 210 mm.
    8. Pendrum: SKF2025 (1251331 S) and PK225 (961635).
    9. Oil bath.
    10. Main motor: 37 kW.
    11. With auto doffer.
    12. With travelling cleaner.
    13. With bobbin: 5,000 per set.
    14. Power: 440 V x 60 Hz.
    15. Quantity: 36 sets.
  11. Item 001k: Murata Auto Winder (CBF)
    1. Type: 7-II (CBF).
    2. Year: 1988.
    3. 60 drums.
    4. CBF.
    5. Steel drum: 2.5 W.
    6. Youk cradle.
    7. With measuring device.
    8. Cone angle: 5 deg 57 min.
    9. Air splicing nozzle: G2.
    10. Overhead travelling cleaner.
    11. Central suction blow.
    12. Yarn clearer: Uster Quantum (2 sets), Uster Quantum-2 (2 sets).
    13. FD channel.
    14. 440 V x 60 Hz.
    15. Quantity: 6 sets.
  12. Item 001l: Murata Auto Winder (CBF)
    1. Type: 21C (process coner).
    2. 1 set year: 2009.
    3. 2 sets year: 2010 to 2012.
    4. Year started: 2011.
    5. Drums: 60.
    6. Type of feed: CBF.
    7. Yarn clearer: Uster Quantum 2 (1 set), Uster Quantum 3 (2 sets).
    8. FD channel.
    9. Conicity: 5 deg 57 min.
    10. Traverse: 6.
    11. Steel drums.
    12. Waxing: available.
    13. Splicer: G2Z.
    14. Measuring head: IMK C20.
    15. Auto doffer.
    16. Suction: individual downwards.
    17. OHTC: original Murata.
    18. 440 V x 60 Hz.
    19. Option: 2 trolley each set.
    20. Quantity: 3 sets.
  13. Item 002: Blow Room (Cotton Lines)
    1. Makers: Trutzschler, Jingwei, Rieter, Loptex.
    2. Year range: 1987 to 2006.
    3. Rieter Unifloc B 7/3R, year 1987, A1/2 (2.3 mts, 25 mts), quantity: 1.
    4. Rieter Unifloc auto feeder, year 1987, A1/2 (1.7 mts, 15 mts), quantity: 1.
    5. Jingwei circular FA002A, year 2006, diameter 6 mts, quantity: 1.
    6. Jingwei circular FA002A, year 2006, diameter 6 mts, quantity: 1.
    7. Rieter waste opener B 2/5 (cotton), year 1987, 750 mm x 4,000 mts, with conveyor, not condenser, quantity: 1.
    8. Rieter waste opener B 2/5 (polyester), year 1987, 750 mm x 4,000 mts, not conveyor, with condenser, quantity: 1.
    9. Rieter Unimix, year 1987, quantity: 1.
    10. Rieter Unimix mixing machine, year 1987, quantity: 1.
    11. Rieter Unimix, year 1987, quantity: 1.
    12. Rieter Unimix, year 1987, quantity: 1.
    13. Trutzschler cleaner CL-P, year 2005, quantity: 1.
    14. Rieter ERM B-50, year 2002, quantity: 1.
    15. Rieter ERM B5/5 cleaning machine, year 1987, quantity: 1.
    16. Rieter ERM B5/5, year 1987, quantity: 1.
    17. Rieter ERM B5/5, year 1987, quantity: 1.
    18. Rieter ERM B5/5, year 1987, quantity: 1.
    19. Rieter mono cylinder B4/1, year 1987, quantity: 1.
    20. Loptex auto sorter Loptex, year 2006, quantity: 1.
    21. Loptex auto sorter Loptex ETC-1, year 2006, quantity: 1.
