NovaStar, BL148, Mechanical Cushion Airbag Production Line, Max Loading Width 1200mm, 380V (New)

NovaStar, BL148, Mechanical Cushion Airbag Production Line, Max Loading Width 1200mm, 380V

Description

  1. Overview
    1. Mechanical cushion airbag production line, model BL148

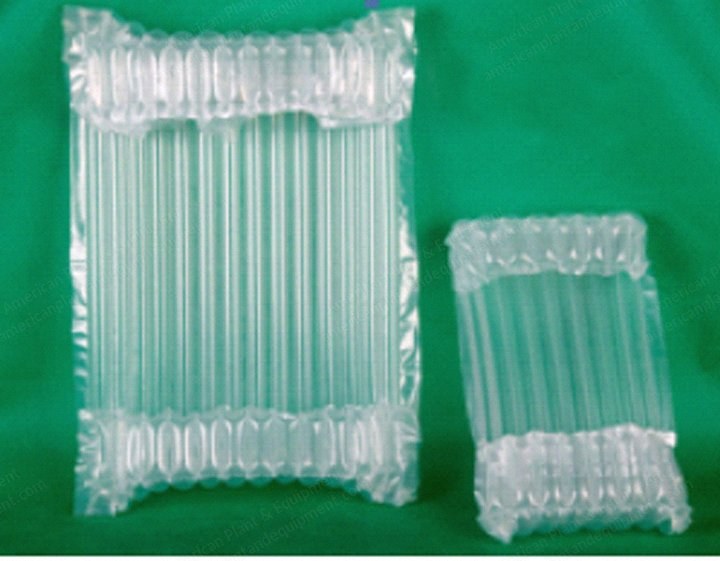

    2. Suitable for making all kinds of airbag
    3. Suitable for making cushion bag
    4. Suitable for making filling bag by PE co-extruded film
  2. Product Advantages
    1. Low cost
    2. Saving space
    3. Re-cycling
    4. Easy packing
    5. Manpower saving
    6. No pollution
    7. Long time airtight for stock and transportation
  3. Machine Features
    1. Automatic machine controlled by PLC and inverter, with easy operation control panel
    2. Parameter setting effect immediately, tracked by electronic eyes, smooth and accurate
    3. Widely frequency range of inverters are controlling the whole production line, stepless speed changing; individual release and pick up motors make production more smooth and effective
    4. Release and pick up roll holders are using air expansion shaft, easy load and unload
  4. Specifications (Standard BL148)
    1. Model: BL148
    2. Part A air column making speed (meter/min): 9 to 12 (adjustable)
    3. Part B air bag making speed (pcs/min): ≤50
    4. Max loading width (mm): 1200
    5. Max loading diameter (mm): ￠500 (= length 2000m)
    6. Roll holder diameter (mm): ￠74mm
    7. Total power (kW): 14.5+3.2 (Part A + Part B)
    8. Net weight (kg): 2000+1200+700 (Part A + Part B + folder)
    9. Noise (dB): ≤55dB
    10. Yield (%): ≥98%
    11. Pressure (N/mm2): 15
    12. Power supply: 380V 50Hz
    13. Raw material: PE co-extruded film, etc.
  5. Dimensions (Length × Width × Height, mm)
    1. Part A: 5400×1585×1470
    2. Part B: 3185×1295×1380
    3. Folder: 1900×1600×1600
  6. Included
    1. Part A air column making unit
    2. Part B air bag making unit
    3. Folder unit
