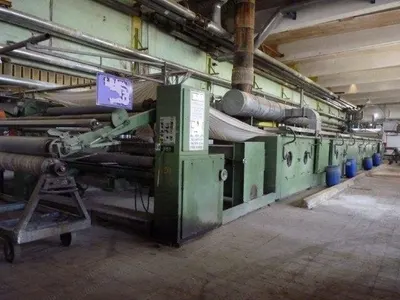

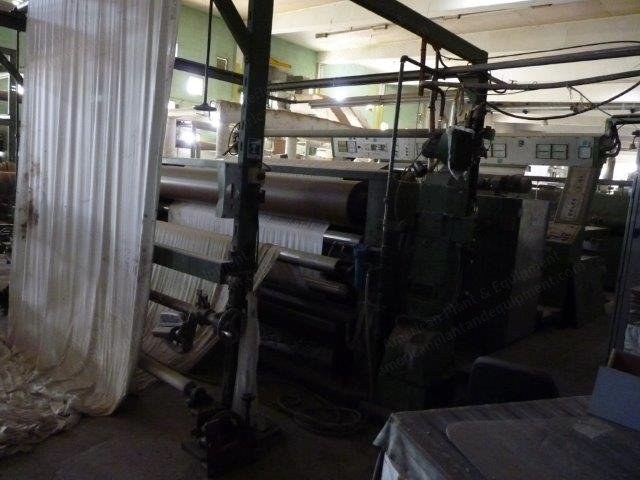

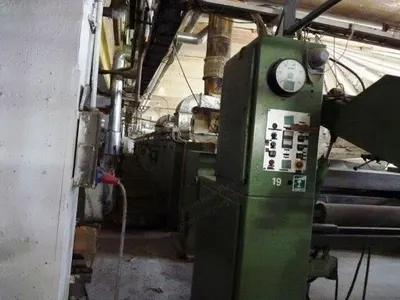

Babcock, Stenter Range, 1986, 2900mm Max Fabric Width, 8 Chambers, Combined Pin Clip Chain

Babcock, Stenter Range, 1986, 2900mm Max Fabric Width, 8 Chambers, Combined Pin Clip Chain

Description

  1. Overview
    1. Babcock stenter range
    2. Year: 1986
    3. Max fabric width: 2900 mm
  2. Entrance Section
    1. High entrance frame
    2. One pair of Erhardt & Leimer KF20 pneumatic guiders
    3. Driven draw roller and compensator

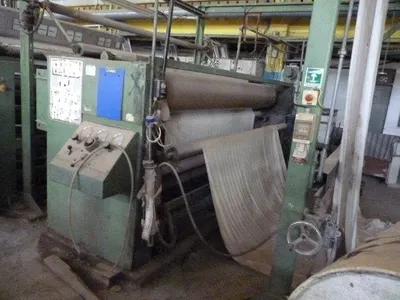

  3. Padder
    1. Artos padder
    2. 2 bowls in horizontal arrangement
    3. Rubber v rubber
    4. Face width: 3100 mm
    5. Stainless steel trough
    6. Pneumatically raised on to s/s displacement rollers
    7. Pneumatic pressure loaded by bellows
    8. Chemicals tank stirrer

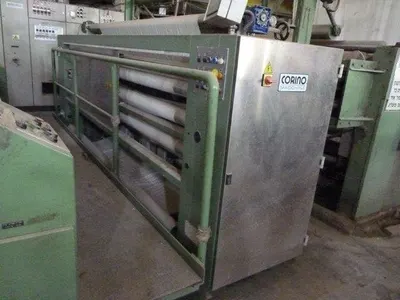

  4. Weft Straightener
    1. Corino-Mahlo weft straightener for bow and skew
    2. 6 detector heads
    3. 2 bowed rollers
    4. Skew rollers

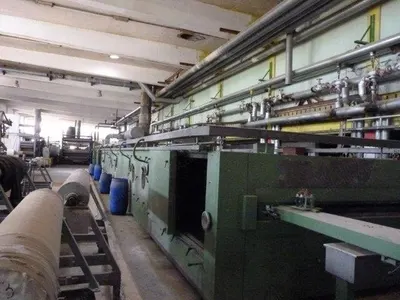

  5. Stenter
    1. Babcock-Artos stenter

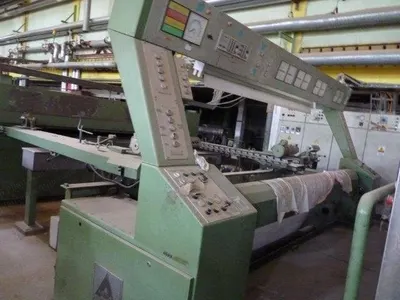

    2. Entrance desk with overfeed/tension control
    3. Overhead instrument display bridge for Mahlo FMC and humidity control
    4. Entrance field of 6 m

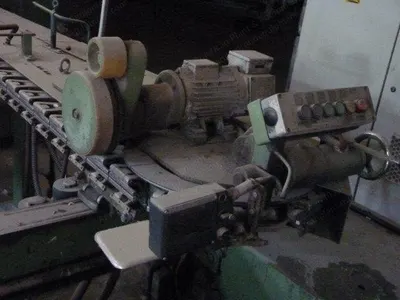

    5. Horizontal return combined pin and clip chain
    6. 8 chambers heated thermic fluid
  6. Batching and Controls

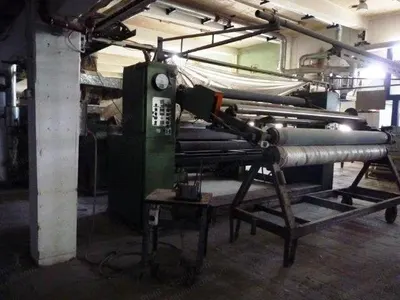

    1. Surface driven a-frame batcher
    2. Control panel
    3. 4 temperature control valves
