Ahiba, Renigal, Fostoria, Textile Laboratory Equipment Package, Dyeing Machines, Pad Infrared Dryer, Pad Steamers

Ahiba, Renigal, Fostoria, Textile Laboratory Equipment Package, Dyeing Machines, Pad Infrared Dryer, Pad Steamers

Description

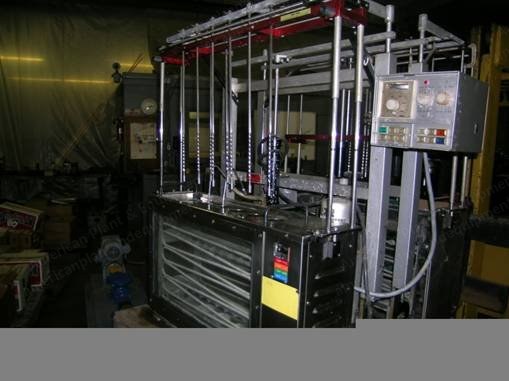

  1. Item 001 - Ahiba Texomat Dyeing Machines
    1. Quantity: 6 units available
    2. Atmospheric dyeing
    3. 12 positions
    4. 220 V
    5. 60 Hz
    6. 6 kW
    7. OAD: 33" W x 15" D x 43" T
    8. Available with 200, 400, 800 cc glass tubes
    9. Available with 400 cc stainless tubes
    10. Other parts such as sample holders, preparation tube rack, rubber tube rings, and rubber stopper for vacant tubes
  2. Item 002 - Ahiba Polymat Dyeing Machines
    1. Quantity: 4 units available
    2. Pressure dyeing
    3. Can be fitted with carriers and different sized vessels (at additional costs) for dyeing
    4. 220 V
    5. 3 phase
    6. 150 cc, 250 cc vessels available
    7. Rollmatics, mopracks and drip trays
    8. Sample holders

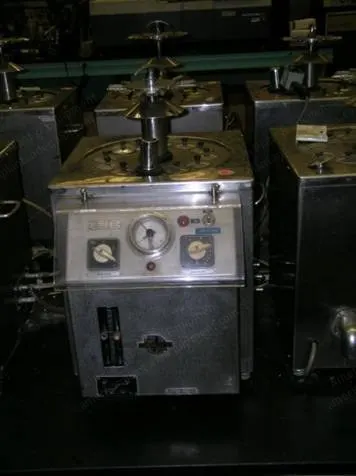

  3. Item 003 - Renigal Dyeing Machines
    1. Quantity: 10 units available
    2. Atmospheric dyeing
    3. 12 dye positions
    4. S/S tubes
    5. Glass tubes
    6. Pressure tubes
    7. Tube prep holders
    8. Several types of sample holders
    9. 220 V

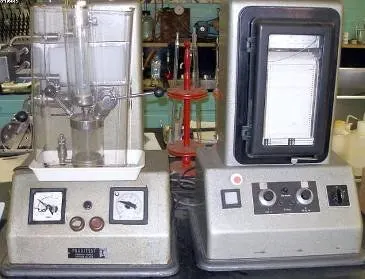

  4. Item 004 - Praxitest Dyeing Machine
    1. Quantity: 1
    2. R&D dyeing
    3. Exhaustive curves
    4. Dye aux performance
    5. Comes with operation manual
    6. Used to determine the optimum conditions in which material will absorb the maximum amount of dye based on time, temperature, and textiles auxiliaries used
    7. With manuals
    8. 220 V
    9. Cat 7310

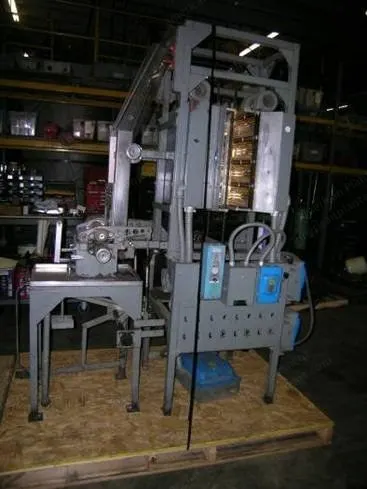

  5. Item 005 - Fostoria Pad Infrared Dryer
    1. Quantity: 2 units
    2. Continuous dyeing
    3. Dryer model 73-156
    4. Working width: 10"
    5. Used to simulate continuous dyeing process with infrared lamps simulating heat cans
    6. Fitted with gold plate to evenly reflect and distribute heat
    7. IR lamp temperatures are independently controlled and adjusted
    8. One motor operates both dryer and padder
    9. Chain driven
    10. 240 V
    11. 57.6 amps
    12. 24 kW
    13. 3 phase
    14. OAD: 28" W x 65" L x 86" T
    15. Fostoria makes only customized units of this type based on customer's wants and needs
    16. This type of padder is not off the shelf
    17. It has excellent accuracy based on a weighted system
    18. Engineered by DuPont/Fostoria for accurate pad infrared predry

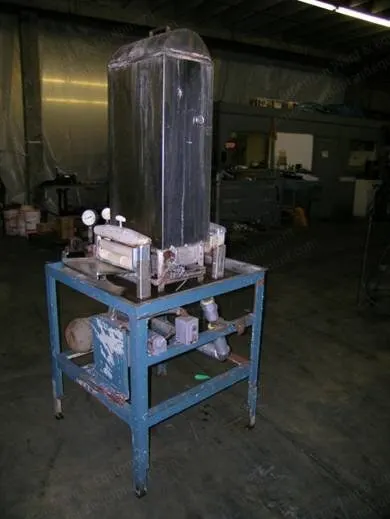

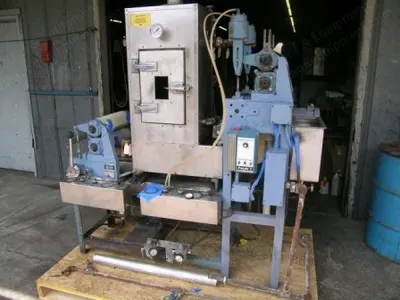

  6. Item 006 - Proctor and Schwartz Pad Steamers (Continuous Dyeing and Printing)
    1. Quantity: 1 unit
    2. Proctor Swartz 14" pad rolls, 10" working width vertical steamer
    3. Used for continuous processing utilizing a pair of L&W rolls at entrance and exit
    4. Most suited for use with vat dyes or reactive dyes
    5. Has safety chain to stop motors
    6. Has a Reeves drive for each roll set
    7. 220 V
    8. Speed of rolls must be manually set
    9. OAD: 63" W x 28" D x 73" T
  7. Item 007 - Proctor and Schwartz Pad Steamers (Continuous Dyeing and Printing)
    1. Quantity: 1
    2. Proctor Swartz 14" pad rolls, 10" working width vertical steamer
    3. Used for continuous processing and/or print development
    4. Uses L&W rolls at entrance and exit
    5. Uses rheostat for speed control of both drives
    6. 220 V
    7. Speed of rolls must be manually set
    8. OAD: 72" W x 36" D x 74" T
    9. Has built-in cool water bath at tail end

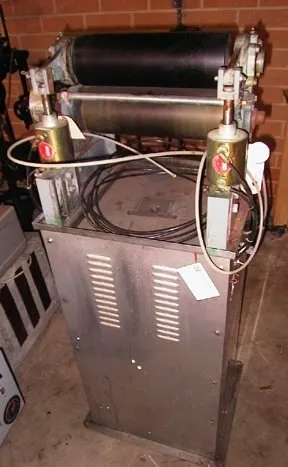

  8. Item 008 - Custom Pad Steamer
    1. Quantity: 1
    2. 220 V
    3. Pad roll width 10 1/2"
    4. Air pressure rolls on each end
    5. Varispeed drive motor
  9. Item 009 - Custom Magnetic Print Table
    1. Quantity: 1
    2. Print surface 30" wide, 40" long
    3. 115 V
    4. Uses air for print stroke
    5. OD: 36" H x 35" W x 60" L
    6. Uses air and 115 V elec for stroke speed and magnetic pull
  10. Item 010 - Prosperity Steam Drying Press
    1. Quantity: 1
    2. The steam press has a 19" x 48" head
    3. Safety feature requires both hands to engage triggers before top can be closed
  11. Item 011 - New York Steam Drying Press
    1. Quantity: 1
    2. With electric boost heating
    3. 220 V
    4. Air required to operate
    5. Steaming area: 47" L with a 19" width tapering down to 9"
    6. OAD: 58" W x 48" D x 58" T (with press opened)
    7. Uses electrical, air and steam
    8. Also equipped with timers
    9. Model: ESEALD-40

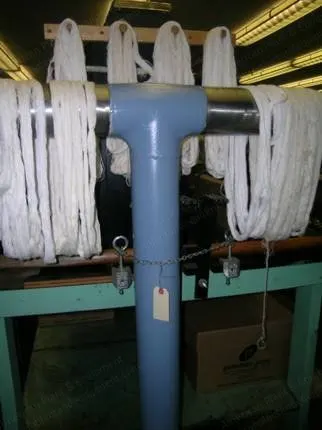

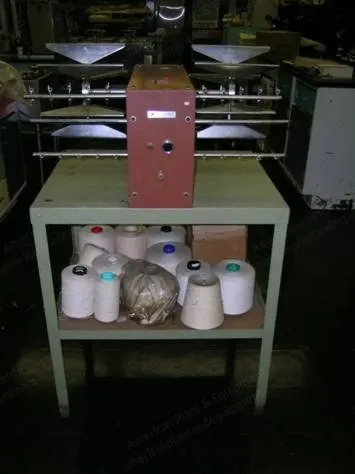

  12. Item 012 - Skein Winding Reel Automatic
    1. Quantity: 1
    2. 10 positions
    3. Industrial Lab Equipment Co
    4. 110 V with counter
    5. 12" diameter, 36" circumference

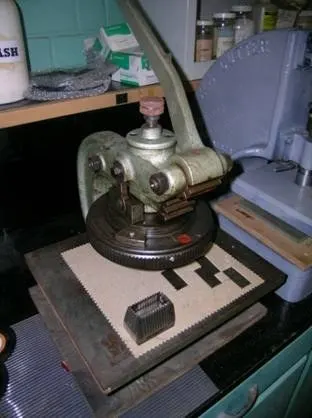

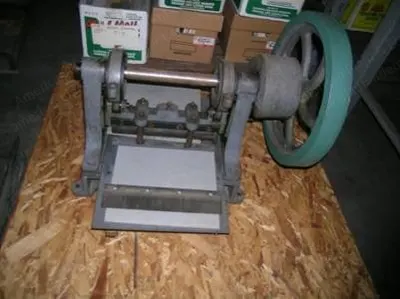

  13. Item 013 - Naef Sample Cutting Punch Press with 1" x 2" Die
    1. Quantity: 1
    2. Serrated
    3. Manually operated with serrated die
    4. Model B 1446
    5. Swiss made
  14. Item 014 - Macbeth Viewing Light
    1. Quantity: 2 units available
    2. 4 light sources: daylight, horizon, cool white fluorescent and UV
    3. 120 V
    4. 50/60 Hz
    5. 2,000 watts
    6. Inside dimensions: 36" W x 24" D x 26" T
    7. OAD: 36" W x 24" D x 37" T
    8. Model: SPL 75B
  15. Item 015 - Diano Viewing Light
    1. Quantity: 1 unit
    2. 3 light sources: UV, tungsten, daylight
    3. 110 V
    4. 3 phase
    5. Inside dimensions: 19" D x 47" W x 14" T
    6. OAD: 21" D x 48" W x 23" T

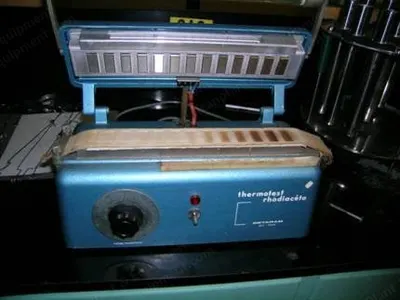

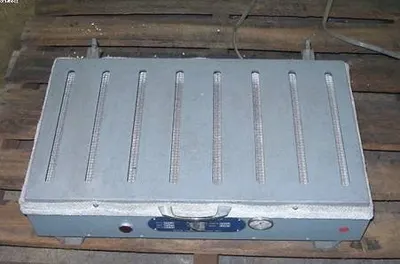

  16. Item 016 - Rhodiaceta Sublimation Testers
    1. Quantity: 3 units
    2. Sublimation tester
    3. Place dyed material and clean white cloth together into unit
    4. The head of the unit has 12 temperature heads
    5. The material is heated until you have determined at what temperature does the dye begin to break down and release its color to other material
    6. 2 machines are set up for 110 V
    7. One machine is set up for 220 V
    8. Temperature range 80°C - 320°C
    9. Instruction manual provided
  17. Item 017 - Atlas Scorch Testers
    1. Quantity: 3 units
    2. 5" x 5" surface
    3. 1x Atlas Scorch Tester ST 480 Type SO 5A, 5" x 5" plate
    4. 1x Atlas Scorch Tester ST 506 Type SO 5A, 5" x 5" plate
    5. 1x Atlas Scorch Tester ST 627 Type SO 5A, 5" x 5" plate
    6. 110 V
  18. Item 018 - Hunter IR Reflectance
    1. Quantity: 1
    2. Model: D40-IR
    3. 110 V
    4. OAD: 14 1/2" W x 17" D x 12" T
  19. Item 019 - Blue M Water Baths
    1. Quantity: 5 units
    2. Magnetic
    3. Model number MW-1120-C
    4. 230 V
    5. 60 Hz
    6. Single phase
    7. Maximum watts: 1600
    8. One unit with Chromalox temperature control and 12 positions
    9. Openings measure 2 7/8" diameter
    10. 2 units with Blue M temperature controls, 12 and 15 positions
    11. OAD: 14 1/2" W x 29" D x 16" T

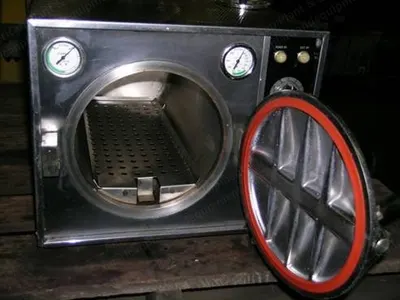

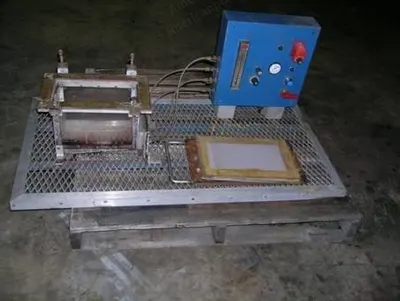

  20. Item 020 - Custom Steam Conditioning Chamber
    1. Quantity: 1
    2. 220 V
    3. Sample drawer 9 1/2" W x 15" deep
    4. OD: 27" H x 24" x 24"
    5. Can be used to develop prints
  21. Item 021 - Custom Rug Dyeing Apparatus
