Mica Processing Plant Liquidation, Wet & Dry Processing

Mica Processing Plant Liquidation, Wet & Dry Processing

Description

  1. Overview
    1. Items from a mica processing facility for both wet and dry processing

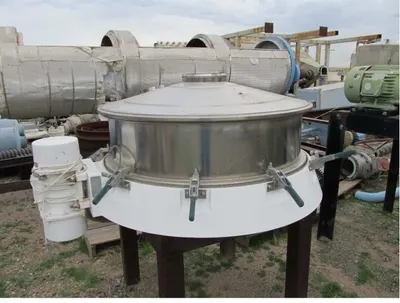

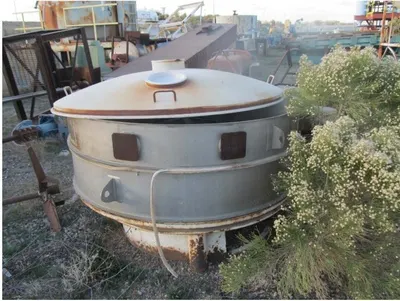

    2. Major items include a Heyl & Patterson 48” x 24’ high temp fluid bed dryer, Shriver 48” x 48” filter press, Cedarapids 25” x 40” jaw crusher, RSG 36” diameter 20 micron mechanical air classifier, Alpine 6’ diameter classifier, Flex-Kleen 15,000 cfm dust collector, (4) chaser muller-type mills, Alfa Laval NX310 decanter centrifuge, Bird 18” x 42” decanter centrifuge, (1) 16” x 16’ double screw Holoflite, Eagle 24” x 24’ screw classifier, (1) 4-roll crusher, Sweco screens, hammer mills, bins, feeders, tanks and more

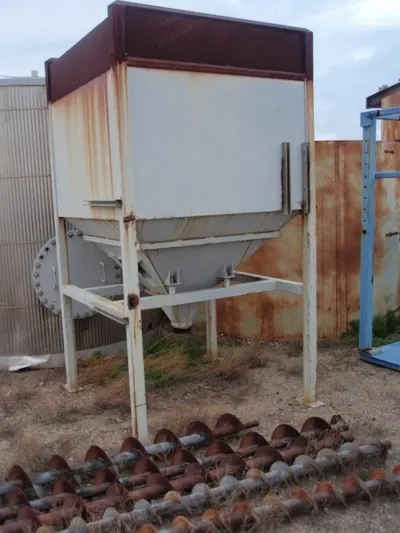

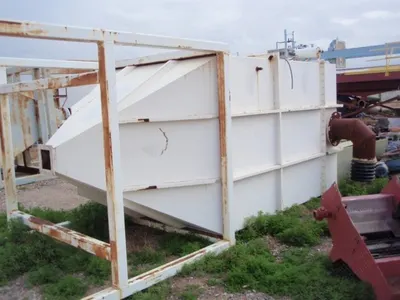

  2. Item 001: Bin
    1. 8’ x 8’ x 18’ tall, mild steel, on legs
    2. 8’ x 8’ x 18’ tall with pyramid bottom
    3. On stand
    4. 10” diameter flanged discharge with bin vibrator
    5. Mild steel construction

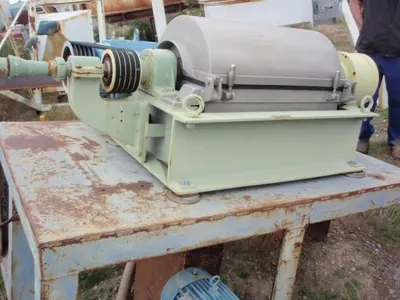

  3. Item 002: Centrifuge, Decanter, Alfa-Laval, NX310 B31, Stainless Steel
    1. Alfa-Laval decanter centrifuge
    2. Model (type) NX310 B31/4187/1
    3. Complete with 20 hp, 230/460 volt, 1765 rpm, TEFC motor
    4. Vari-speed back drive
    5. Internal drum diameter 353 mm
    6. Maximum sludge density 3.4 kg/dm3
    7. Maximum speed 3250 rpm
    8. Reconditioned and used very little thereafter

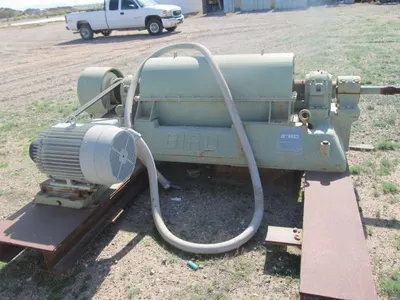

  4. Item 003: Centrifuge, Decanter, Bird, 18” x 42”, Stainless Steel, 30 Hp
    1. Bird decanter centrifuge
    2. 18” x 42” bowl
    3. Stainless steel construction
    4. Complete with 30 hp, 230/460, 755 rpm motor
    5. Maximum rpm 2400
    6. Last used in minerals application

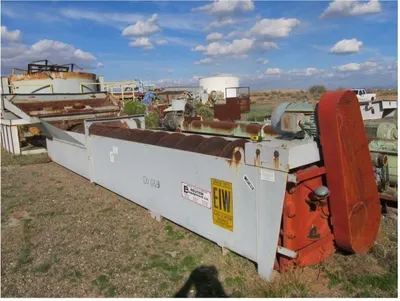

  5. Item 004: Eagle Screw Classifier, 24” x 24’, 15 Hp
    1. Eagle screw classifier
    2. Approximately 24” diameter x 24’ long
    3. Mild steel
    4. Complete with 15 hp motor through chain and sprocket drive
    5. Flared tank
    6. Condition good

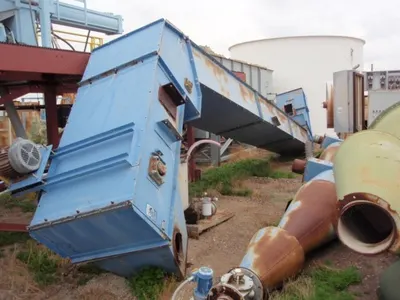

  6. Item 005: Cambelt Conveyor, Belt, 30’ High, Z-Type
    1. Cambelt conveyor
    2. Elevator type
    3. 6’ horizontal section
    4. 30’ high vertical section
    5. 6’ high horizontal section
    6. Complete with 7.5 hp 220/440 1760 rpm motor
    7. Chambelt model number CWR-2430.6
    8. Year: 1999
    9. Speed 175 fpm

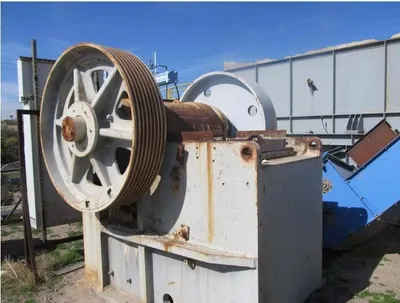

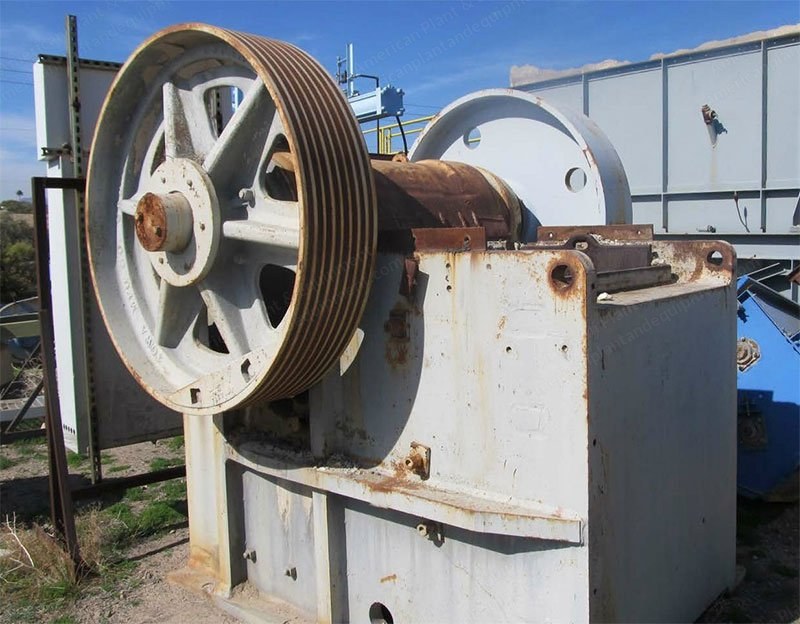

  7. Item 006: Cedarapids Jaw Crusher, 25” x 40”, 125 Hp
    1. Jaw crusher
    2. 25” x 40”
    3. Manufactured by Cedarapids
    4. Single toggle design
    5. Complete with 125 hp
    6. 230/460 volt motor through belt drive
    7. Bearings and jaws appear to be in good condition
    8. Last used to crush soft mica ore

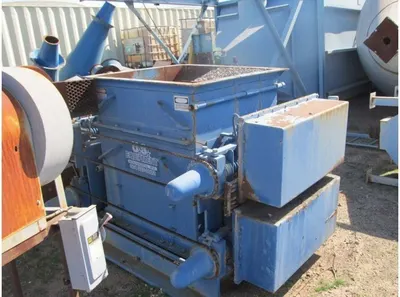

  8. Item 007: Roll Crusher, 12” x 36”, (4) Corrugated Rolls, 50 Hp
    1. Roll crusher
    2. 4-roll double roll crusher
    3. Each of the 4 rolls measures 12” x 36”
    4. With corrugation of different sizes
    5. Manufactured by US Equipment Distributors, Inc.
    6. Model number 36-DA
    7. Rolls appear to be in good condition
    8. Complete with 50 hp
    9. 220/440 volt motor
  9. Item 008: Metal Detector, 36” x 12”, Advanced Detection Systems
    1. Metal detector
    2. 36” wide x 12” high opening
    3. Manufactured by Advanced Detection Systems
    4. No conveyor

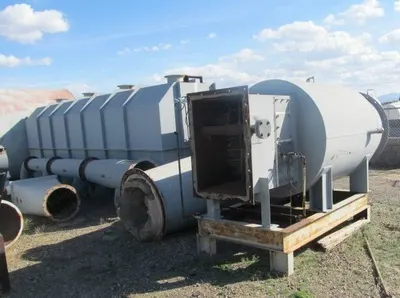

  10. Item 009: Heyl & Patterson Fluid Bed Dryer, 4’6” x 21’, High-Temp
    1. Fluid bed dryer
    2. 4’6” wide x 21’ long bed
    3. Manufactured by Heyl & Patterson
    4. High temperature
    5. Refractory lined chamber designed for 700°F last used on mica
    6. Propane burner
    7. 4.5 million btu/hour
    8. Baghouse dust collector
    9. 7,700 cfm @ 4.5/1, 30 hp
    10. 4,500 cfm fluidizing blower
    11. 7,700 cfm exhaust blower at 230°F
    12. Includes ductwork, instrumentation, controls and drawings
    13. Condition excellent
    14. Year: 1999
    15. Dismantled and ready to load

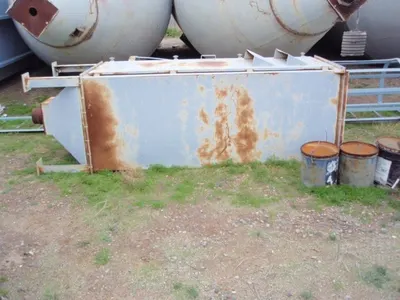

  11. Item 010: Dust Collector, Baghouse, 1,000 Sf, 7500 Cfm
    1. Dust collector
    2. Approximately 1,000 square feet
    3. 7500 cfm
    4. Manufactured by CP Environmental Filters Inc
    5. Model number 84-NF-100-C
    6. Chamber measures 80” x 80” x 10’ high
    7. With 5’ deep cone bottom
  12. Item 011: Flex-Kleen Dust Collector, Baghouse, 2,500 Sf, 15,000 Cfm
    1. Dust collector
    2. Baghouse
    3. Manufactured by Flex-Kleen
    4. Approximately 2,500 square feet cloth area
    5. 15,000 cfm air through put
    6. Chamber dimensions are 90” x 96” x 20’ high
    7. Plus pyramid cone bottom
    8. Last used in high temperature application for fluid bed dryer
  13. Item 012: Griffin Environmental Dust Collector, Baghouse, 300 Sf, 1,200 Cfm
    1. Baghouse
    2. Approximately 300 square feet
    3. 1,000 cfm
    4. Manufactured by Griffin Environmental Company
    5. Model number 36KS
    6. 36 bag, 8’ high
    7. Overall dimensions: 36” x 36” x 14’ high including cone bottom

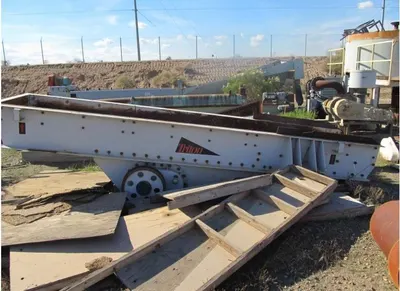

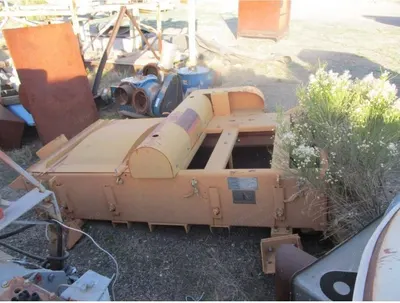

  14. Item 013: Triton Vibratory Feeder, 40” x 15’, 5’ Grizzly Section
    1. Vibrating grizzly feeder
    2. Manufactured by Triton
    3. 40” wide x 15’ long pan
    4. Plus 5’ grizzly section
    5. Model number TF-4016
    6. Requires 25 hp motor

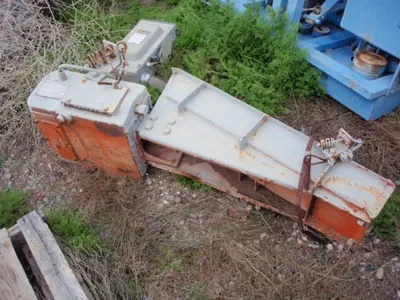

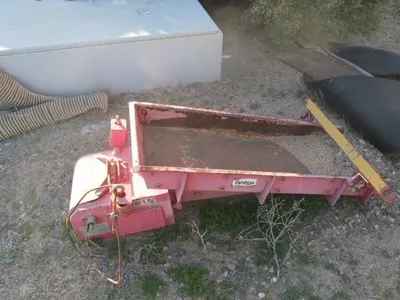

  15. Item 014: Syntron Vibratory Feeder, 1’ x 3’, Mdl F-22-C-Dt
    1. Syntron vibratory feeder
    2. 1’ wide x 3’ long
    3. Model number F-22-C-DT
    4. Rated at 115 volt
    5. 60 hz
    6. 10 amps
  16. Item 015: Syntron Vibratory Feeder, 2’ x 3’, Mdl Fh-220-Dt
    1. Syntron vibratory feeder
    2. 2’ wide x 3’ long
    3. Model no. FH-220-DT
    4. Vibratory motor rated at 460 volt
    5. 60 hz
    6. 5 amps

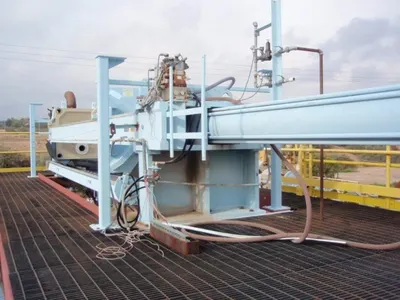

  17. Item 016: Eimco Shriver Filter Press, 48” x 48”, Ppl, Shriver, 55 Cf, 769 Sf
    1. Eimco Shriver filter press
    2. 48” x 48” (1200 mm x 1200 mm) polypropylene plates
    3. Model number M1200FB-22-RP/MEME-HS-225-2.0X32
    4. 32 chambers
    5. 2” cake thickness
    6. 761.9 square feet
    7. 55.0 cubic feet cake capacity
    8. Filter pressure 150 psi
    9. Center feed
    10. Cake wash manifold
    11. Air blow back for cake discharge
    12. 204 ton hydraulic closing with 25 hp power pack
    13. Cake drops into stainless hopper with clam shell discharge
    14. Year: 1999
  18. Item 017: Double Screw Holoflite, 16” x 16’ Long, C/St, Hot Oil, Dbl Screw
    1. Double screw Holoflite
    2. Each screw is 16” diameter x 16’ long
    3. Mild steel construction
    4. Screws are enclosed in a cylindrical chamber
    5. Approximately 3’ diameter x 17’ long
    6. No Johnson joints
    7. Screws are driven by 5 hp motor through gearbox
    8. 16” diameter flange discharge
    9. On stand

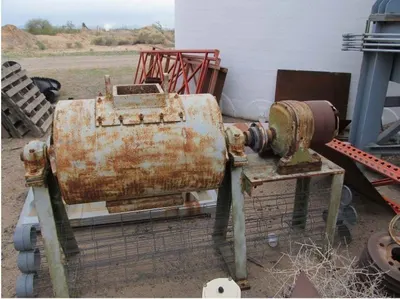

  19. Item 018: Ball Mill, Batch, 30” x 24”, Ceramic, 2 Hp
    1. Ball mill
    2. Batch type
    3. 30” diameter x 24” long grinding chamber which is ceramic lined
    4. Complete with 2 hp motor through gear reducer
    5. On stand
    6. Condition of liners good
    7. There may not be a running door

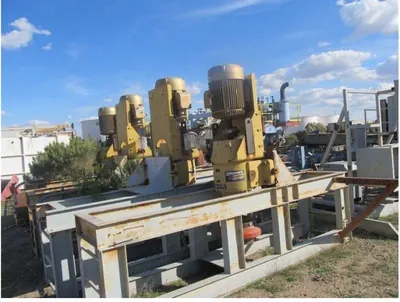

  20. Item 019: Chaser Mill, Mica, 50 Hp, Muller Type, 8’ Dia. Tub
    1. Chaser mill
    2. Last used for mica processing
    3. Each complete with a 50 hp TEFC
    4. 230/460 volt
    5. 3-phase
    6. 1780 rpm motor
    7. Connected to a Rexnord gear reducer
    8. Ratio 54.4:1
    9. Crushes with muller rolls
    10. Approximately 18” diameter x 18” face
    11. 6’ diameter grinding chamber is mounted on I-beam legs
    12. Quantity: 4

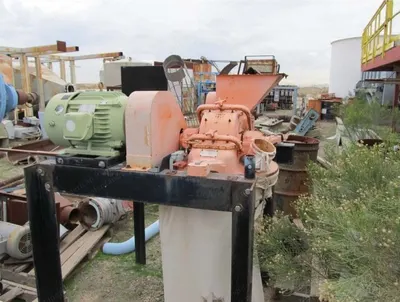

  21. Item 020: Pulva Hammer Mill, Size B, 20 Hp
    1. Hammer mill
    2. Manufactured by Pulva Corp
    3. Size B
    4. Complete with 20 hp
    5. 220/440 volt motor
    6. On stands
    7. Good condition
  22. Item 021: Hockmeyer Dispersion Mixer, 50 Hp, S/St, Hydraulic
    1. Hockmeyer dispersion mixer
    2. Complete with 50 hp
    3. 1770 rpm
    4. 440 volt motor
    5. Hydraulic raise
    6. Shaft measures 2.5” diameter x 48” long
    7. Disc type blade
    8. Stainless steel contact
    9. No tank
