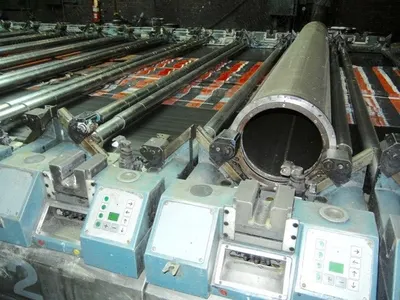

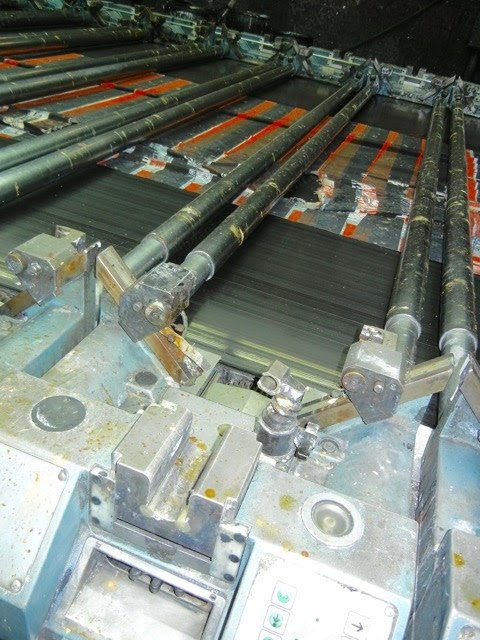

Zimmer, RSD 573, 2000, Rotary Screen Print Machine, 112" Print Width, 12 Colors, Aztec Dryer

Zimmer, RSD 573, 2000, Rotary Screen Print Machine, 112" Print Width, 12 Colors, Aztec Dryer

Description

  1. Overview
    1. P. Zimmer rotary screen print machine
    2. Year: 2000
    3. 12 colors
    4. Model: RSD 573
  2. Specifications
    1. Belt width: 119 in wide
    2. Print belt length: 67.5 ft long
    3. Magnets: 112 in wide
    4. Push button on print heads electronic for registration of patterns
    5. Max printing: 112 in wide
    6. Repeat range: 25-47.5 in
    7. Max speed: 100 yards/min
    8. Operating side: left
    9. Color supply: right
    10. 480 volts
    11. 60 cycles
    12. 3 phases
    13. Control voltage single phase 115 V AC, 24 V DC
  3. Dryer
    1. Aztec dryer
    2. 4 combustion motors
    3. 8 circulating fans
    4. 2 exhaust fans
    5. 480 volt system
    6. 5 doors on each side of housing
    7. Opening in oven for fabric: 124 in
    8. Housing: 15 ft x 100 ft long
    9. 48 in for combustion motors and circulating fan
