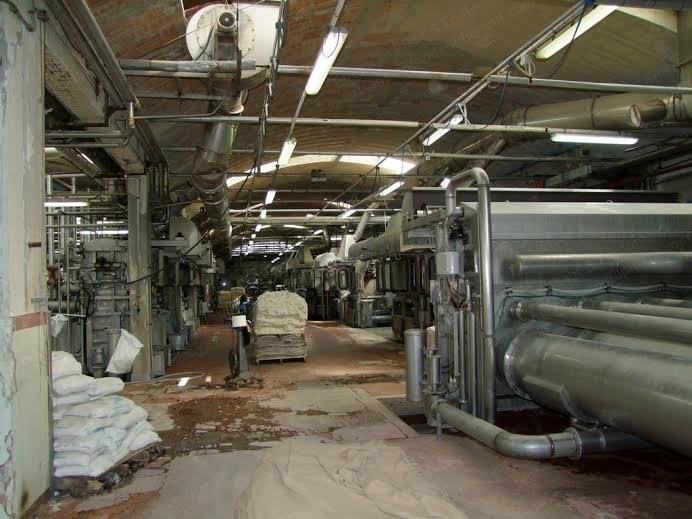

Complete Dyeing Plant in Rope Form, 1989 to 2005, 53 Tubes, 5570 kg Total Capacity

Complete Dyeing Plant in Rope Form, 1989 to 2005, 53 Tubes, 5570 kg Total Capacity

Description

  1. Overview
    1. Complete dyeing plant in rope form for woven and knitting fabrics.
    2. Total production of the dyeing plant in 24 hours per day: from 16,700 kg to over 30,000 kg, the production can vary according to the type of dyeing that you want to do: reactive, direct etc.
    3. The dyeing plant can process fabrics into compositions: natural, artificial and synthetic, such as: cotton, wool, linen, nylon, viscose, rayon, acetate, triacetate and their mixed, also wool/polyester.
  2. Condition
    1. All machines described below are currently working and are all fully functional, so the dyeing plant can be inspected in full operation.

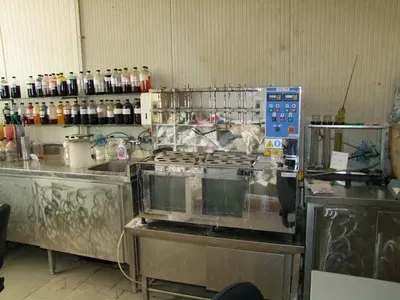

  3. Complete Laboratory
    1. Lamp for samples.
    2. Machine for dyeing open sample discontinuous.
    3. Spectrophotometer.
  4. Samples and Small Production Department
    1. Dyeing machine, overflow system, manufacturer Minox, nominal load capacity 30 kg, 98°C, atmospheric pressure, year 1989, quantity 1.
    2. Dyeing machine, overflow system, manufacturer Minox, nominal load capacity 20 kg, 98°C, atmospheric pressure, year 1989, quantity 1.
    3. Dyeing machine, overflow system, manufacturer Minox, nominal load capacity 20 kg, 98°C, atmospheric pressure, year 1989, quantity 1.
    4. Dyeing machine, overflow system, manufacturer Minox, nominal load capacity 30 kg, 98°C, atmospheric pressure, year 1989, quantity 1.
    5. Dyeing machine, overflow system, manufacturer Laip, nominal load capacity 20 kg, 98°C, atmospheric pressure, year 1992, quantity 1.
    6. Total 5 tubes/ropes.
    7. Total nominal load capacity 120 kg for each dyeing cycle.

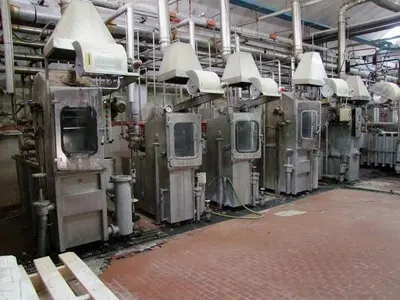

  5. Production Department
    1. Dyeing machine, overflow system, manufacturer Laip, 3 tubes/ropes, nominal load capacity 100 kg for each tube/rope, total nominal load capacity 300 kg, 108°C, 0.4 bar, year 1990, quantity 1.
    2. Dyeing machine, overflow system, manufacturer Laip, 3 tubes/ropes, nominal load capacity 100 kg for each tube/rope, total nominal load capacity 300 kg, 108°C, 0.4 bar, year 1990, quantity 1.
    3. Dyeing machine, overflow system, manufacturer Laip, 5 tubes/ropes, nominal load capacity 150 kg for each tube/rope, total nominal load capacity 750 kg, 98°C, atmospheric pressure, year 1997, quantity 1.
    4. Dyeing machine, overflow system, manufacturer Famit, 4 tubes/ropes, nominal load capacity 100 kg for each tube/rope, total nominal load capacity 400 kg, 98°C, atmospheric pressure, year 1997, quantity 1.
    5. Dyeing machine, overflow system, manufacturer Minox, 1 tube/rope, nominal load capacity 100 kg, 98°C, atmospheric pressure, year 1989, quantity 1.
    6. Dyeing machine, overflow system, manufacturer Famit, 2 tubes/ropes, nominal load capacity 100 kg for each tube/rope, total nominal load capacity 200 kg, 98°C, atmospheric pressure, year 1992, quantity 1.
    7. Dyeing machine, overflow system, manufacturer Famit, 6 tubes/ropes, nominal load capacity 100 kg for each tube/rope, total nominal load capacity 600 kg, 98°C, atmospheric pressure, year 1992, quantity 1.
    8. Dyeing machine, overflow system, manufacturer Laip, 6 tubes/ropes, nominal load capacity 150 kg for each tube/rope, total nominal load capacity 900 kg, 98°C, atmospheric pressure, year 2005, quantity 1.
    9. Dyeing machine, overflow system, manufacturer Laip, 2 tubes/ropes, nominal load capacity 100 kg for each tube/rope, total nominal load capacity 200 kg, 108°C, 0.4 bar, year 1992, quantity 1.
    10. Dyeing machine, overflow system, manufacturer Laip, 2 tubes/ropes, nominal load capacity 100 kg for each tube/rope, total nominal load capacity 200 kg, 108°C, 0.4 bar, year 1992, quantity 1.
    11. Dyeing machine, overflow system, manufacturer Laip, 1 tube/rope, nominal load capacity 100 kg, 108°C, 0.4 bar, year 1992, quantity 1.
    12. Dyeing machine, overflow system, manufacturer Laip, 4 tubes/ropes, nominal load capacity 100 kg for each tube/rope, total nominal load capacity 400 kg, 108°C, 0.4 bar, year 1992, quantity 1.
    13. Dyeing machine, overflow system, manufacturer Laip, 1 tube/rope, nominal load capacity 100 kg, 108°C, 0.4 bar, year 1990, quantity 1.
    14. Dyeing machine, overflow system, manufacturer Minox, 4 tubes/ropes, nominal load capacity 125 kg for each tube/rope, total nominal load capacity 500 kg, 108°C, 0.4 bar, year 2002, quantity 1.
    15. Dyeing machine, overflow system, manufacturer Minox, 4 tubes/ropes, nominal load capacity 125 kg for each tube/rope, total nominal load capacity 500 kg, 108°C, 0.4 bar, year 2002, quantity 1.
    16. Total 48 tubes/ropes.
    17. Total nominal load capacity: 5,450 kg for each dyeing cycle.

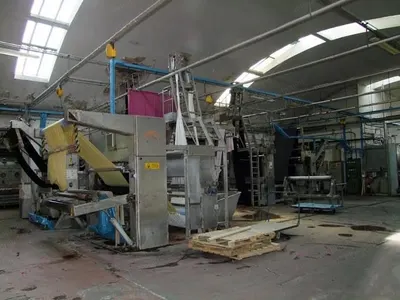

  6. Squeezers Department
    1. Line composed of rope opener and squeezer, manufacturer Famit, year 1995, quantity 1.
    2. Line composed of rope opener and squeezer, manufacturer Beta, year 1996, quantity 1.
    3. Line composed of rope opener and squeezer, manufacturer Beta, year 1991, quantity 1.
