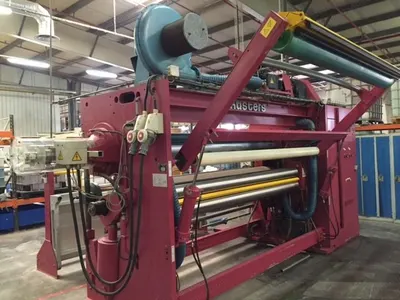

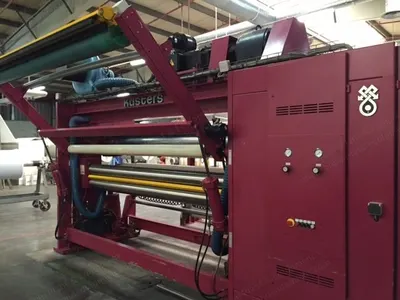

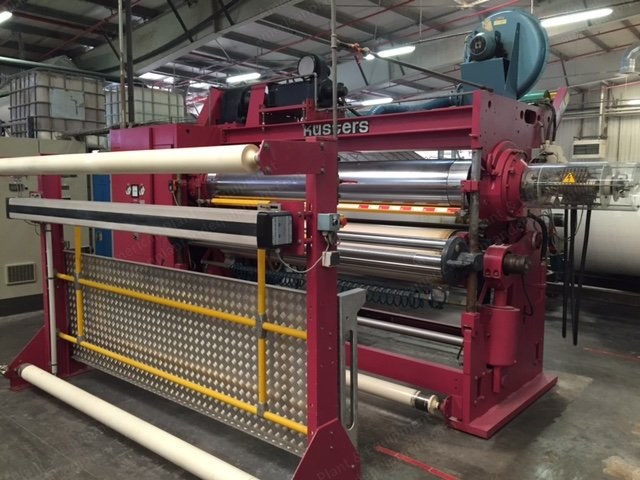

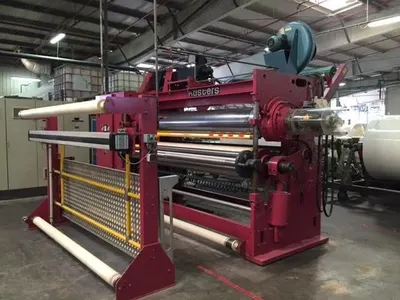

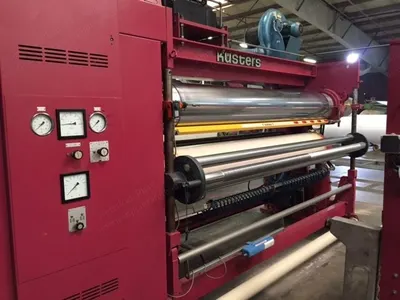

Kuesters, 212.50 / 2400 WB, 2001, 2 Rollers Calender, Working Width 2400mm, 72 Tons Pressure

Kuesters, 212.50 / 2400 WB, 2001, 2 Rollers Calender, Working Width 2400mm, 72 Tons Pressure

Description

  1. Overview
    1. Working width: 2400 mm
    2. Year: 2001
    3. Type: 212.50 / 2400 WB
    4. Control: Conventional

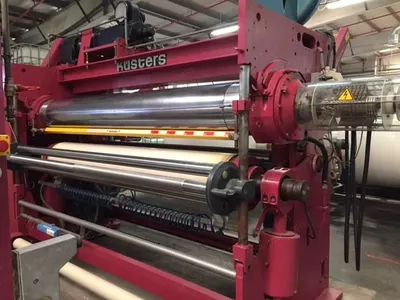

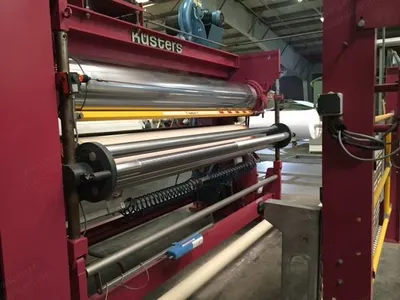

  2. Roller Specifications
    1. Rollers width: 2600 mm
    2. Top roller, steel, diameter: 400 mm
    3. Roller covering: Chrome plating
    4. Bottom roller (S-roll), diameter: 435 mm
    5. Roller covering: Flexroll – Manchon
  3. Heating and Pressure
    1. Heating: Electric-steam
    2. Total pressure: 72 tons
    3. Line pressure: 300 N/mm
  4. Electrical and Power
    1. Electric current: 400 V / 50 Hz
    2. Main engine: 38 kW
    3. Heating: 65 kW

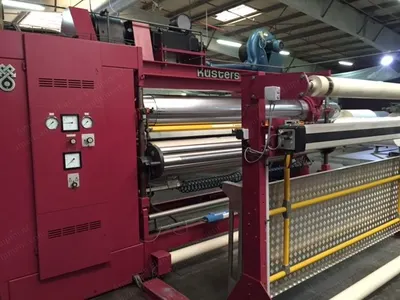

  5. Controls and Equipment

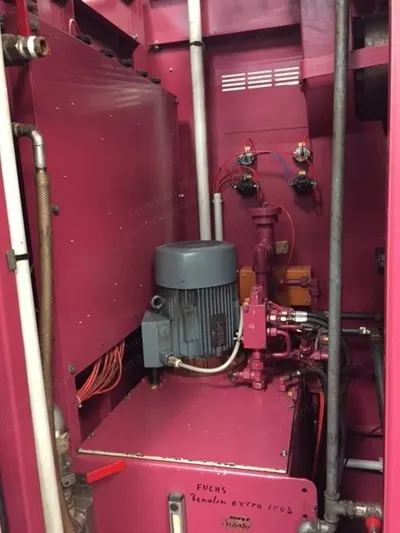

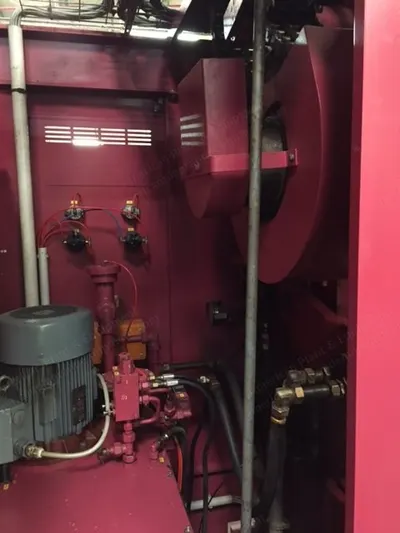

    1. Control console for hydraulic
    2. Equipment: Metal detector, seam guard, rising roll batcher
  6. Dimensions and Weight
    1. Weight: ca. 15 t
    2. Floor space requirement ca.: 6.0 x 6.0 x 2.80 m
