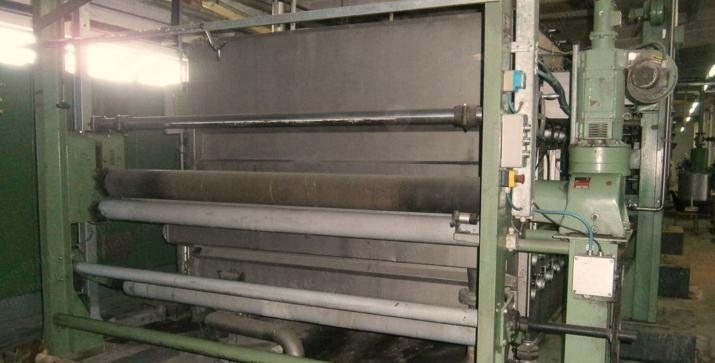

Kusters, Washing Scouring Range, 1994, 2000mm Working Width, 2200mm Roller Width

Description

Overview
1. Kusters washing scouring range
2. Brand: Kusters
3. Year: 1994
4. Roller width: 2200 mm
5. Working width: 2000 mm
Entry Section

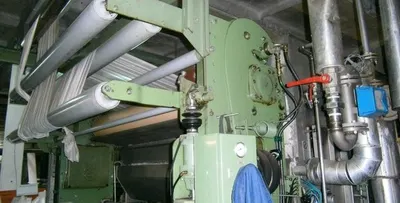

1. Entry with fabric unwinder, type 288.09
2. Driven cylinders diameter: 177 mm, covered by gum and Erhardt + Leimer pneumatic cloth guides
Washing Units

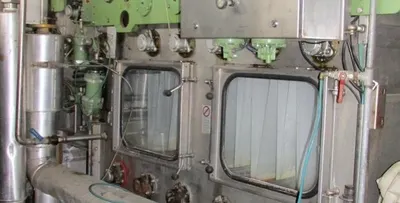

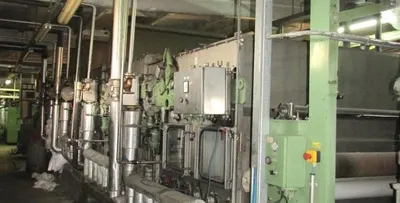

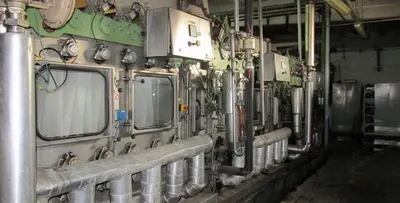

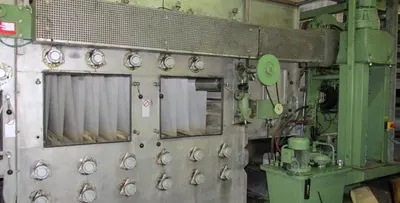

1. Compacta D, model 236.30 washing unit
2. Fabric content: 30 m each one
3. Tension controlled and reduced due to driven internal cylinders
4. With bath separators inside the tank
5. With hydraulic seals to avoid steam exit
6. 12 cylinders underbath (6 of them diameter 177 mm and 6 diameter 147 mm) mounted on external ball bearings
7. 6 cylinders above diameter 147 mm mounted on external ball bearings
8. Synchronization unit with 2 cylinders diameter 147 mm, pneumatically controlled
9. Quantity: 4 washing compartments
Internal Squeezers
1. Quantity: 5
Squeezing Units

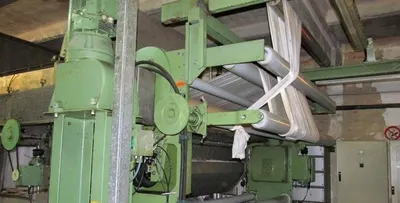

1. Squeezing unit at the exit
2. High efficiency squeezing padder, model 222.58
3. 2 bowls: 1 swimming roll diameter 190 mm / 1 gum diameter 270 mm
4. Max pressure: 15,000 kg
5. Exit on big roll arm device
6. Total fabric capacity: 120,000 mm
Control Panels
1. Main power electric panel board
2. Panel to control all the parameters
