Dye capacity from 300 g to 1500 g, temperature range from 20 °C to 140 °C
Suitable for knitted fabrics, woven fabrics, leather, yarn, zippers, trademarks, loose fiber, lace, and more
5 g sample to bulk production 500 kg, 10,000 times (reproducibility is not perfect)
5 kg sample to bulk production 500 kg, 100 times (reproducibility is perfect, greatly decreases the possibility of back return rate)
Features

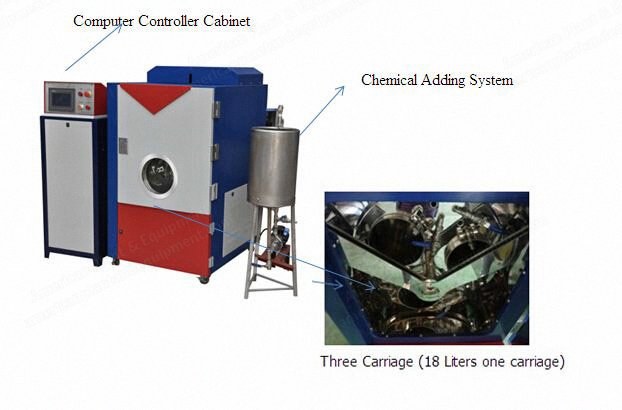

Three independent carriages of 18 liters (12 liters at the maximum) for dyeing three colors at one time, enabling color contrast testing and dyestuff (red, yellow, blue) compatibility testing
Easy operation and full automatic control: automatically measures the inlet of hot and cold water (water temperature automatically adjusted), automatic drain off water and clean the carriage to avoid the trouble of taking down the carriage
Special-designed dosing device to add addition at setting amount at setting time
Specifications
Dye pot: 3 pieces
Dye material: S.S 316L
Volume of dye pot: total 18 liters
Rotating speed: 0.2 to 60 r/min
Temperature scope: room temperature to 140 °C
Temperature accuracy: ±0.5 °C
Temperature rising speed: 0.2 to 4 °C/minutes
Cooling way: water cooled
Heating medium: heat conduct oil
Power supply: 9 kW, 480 V
Dimension: 800 x 950 x 1500 cm L x W x H
Weight: around 300 kg
