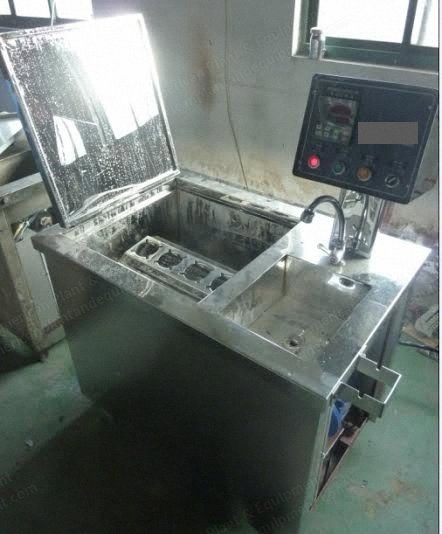

NovaStar, DG486, Glycerin Beaker Dyeing Machine, 12 to 24 Positions, 20 to 140C (New)

NovaStar, DG486, Glycerin Beaker Dyeing Machine, 12 to 24 Positions, 20 to 140C

Description

  1. Overview
    1. Glycerin beaker dyeing machine / high temperature sample dyeing machine
    2. Model: DG486
    3. Made of stainless steel mirror surface
    4. Also applies to washing fastness tests
  2. Specifications
    1. Dyeing temperature range: 20 to 140°C
    2. Heating rate: 0 to 3.5 °C/min
    3. Cooling rate: 6°C/min
    4. Heating method: electric heating
    5. Heating medium: glycerin
    6. Temperature controller: program type or microprocessor type
    7. Dyepot position: 12, 24
    8. Dyepot size A: 150 ml - height 140 mm - diameter 42 mm
    9. Dyepot size B: 300 ml - height 110 mm - diameter 75 mm
    10. Dyepot size C: 450 ml - height 140 mm - diameter 75 mm
  3. Technical Data - Model HS12
    1. Model: HS12
    2. Power consumption: 6 kW
    3. Volume of heating medium: 50 L
    4. Machine dimension (L x W x H): 840 x 690 x 1300 mm
    5. Machine weight: 150 kg
  4. Technical Data - Model HS24
    1. Model: HS24
    2. Power consumption: 10 kW
    3. Rated power: 480 V
    4. Volume of heating medium: 65 L
    5. Machine dimension (L x W x H): 960 x 780 x 1300 mm
    6. Machine weight: 170 kg
