Polyester Yarn Plant Spare Parts

Description

Blending

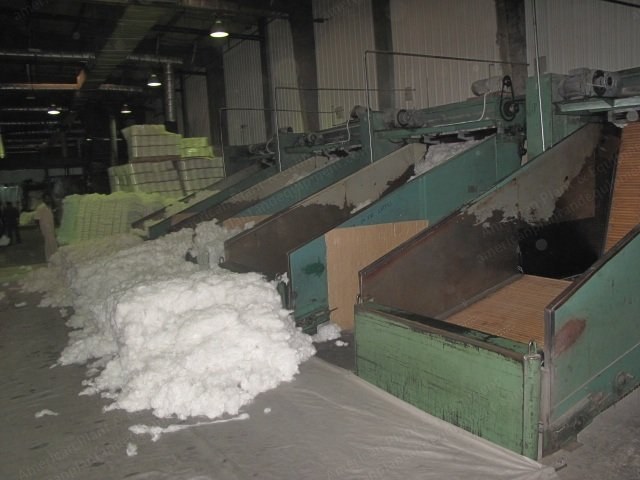

1. Item 001: Blending feeder
2. Brand: Davis & Furber Machine Co. North Andover Mass. U.S.A.
3. Year: 1970 to 1977
4. Model: 690
5. Blender lattics working width: all 4 blender feeder working with individual motor and attached with conveyer
6. Conveyer: one conveyer attached
7. Cross blender: 1
8. Picker: 1
9. Spin finish tank: 1
10. Fan: 1
11. Bale press: 1
Carding

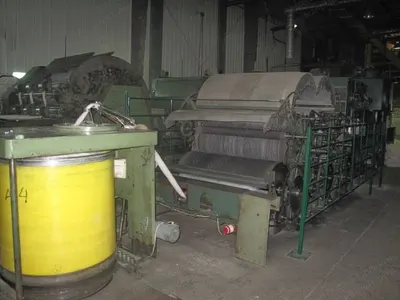

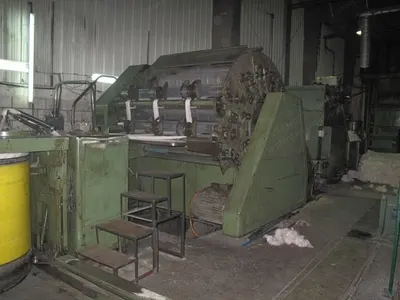

1. Item 002: Card No 1
  1. Brand: James Mackie & Sons Ltd. Belfast
  2. Frame: FC 7742
  3. Cylinder diameter: 60 inch, speed: 230 rpm, 1 cylinder
  4. Licker-in speed: 63 rpm, 2 lick
  5. Transfer roll speed: 201 rpm, 2 roll
  6. Worker roll diameter: 7½, 7 roll
  7. Stripper roll speed: 96/184/220, 7 roll
  8. Doffer top diameter: 14½ inch, speed: 74 rpm, 1 roll
  9. Doffer bottom diameter: 14½ inch, speed: 74 rpm, 1 roll
  10. Feed rolls speed: 8 rpm, 4 roll
2. Item 003: Card No 2
  1. Brand: Davis & Furber Machine Co. North Andover Mass. U.S.A.
  2. Double cylinder and double doffer card
  3. Cylinder diameter: 30 inch, speed: 240 rpm
  4. Doffer diameter: 30 inch, speed: 18 rpm
  5. Stripper roll diameter: 8 inch, speed: 340 rpm
  6. Total 6 stripper roll
Drafting

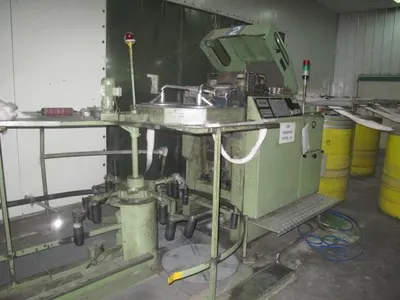

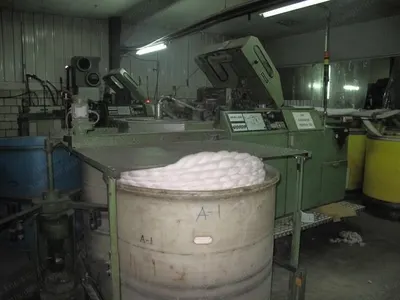

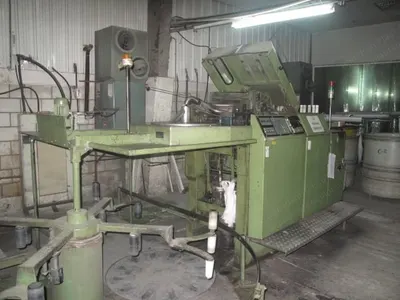

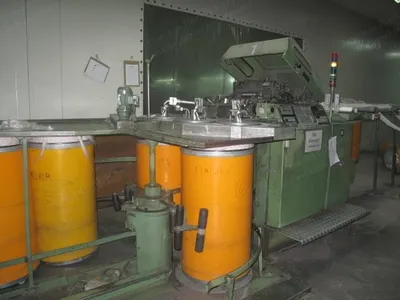

1. Item 004: Running machine
  1. I passage HMG
  2. Model: Servo WR 80-400
  3. Year: 1984
  4. Type: Autoleveller
  5. Drafting: Chain gill
  6. Creel: 6 end creel
  7. Can size: 1000 mm x 1200 mm
