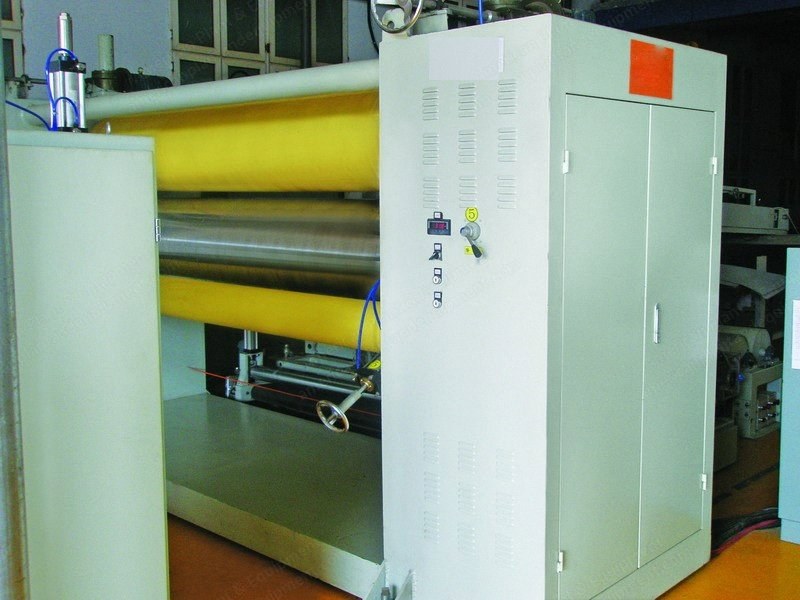

NovaStar, DG494, Nonwoven Calender, Working Width 2400mm, Thermal Oil Heating, 63.7kW (New)

NovaStar, DG494, Nonwoven Calender, Working Width 2400mm, Thermal Oil Heating, 63.7kW

Description

  1. Overview
    1. Calender machine
    2. Working width: 2400mm (a set of two steel thermo-rollers)
    3. Heating: thermal oil heating system
    4. Surface temperature: ambient temperature to 250°C
    5. Tolerance: ≤±2°C
    6. Linear speed: 1.5 to 7.5 m/min
    7. Installed power: 63.7 kW
  2. Roller Specifications
    1. Thermo-rollers are made of seamless tube (35mm x Φ420mm) with fine surface finish
    2. Proportional temperature controller
    3. Water cooled bearing
    4. Pneumatic lifting for upper roller for gap setting
  3. Dimensions and Weight
    1. Dimensions: 4000mm (L) x 1200mm (W) x 2000mm (H)
    2. Weight: 4000 kg
