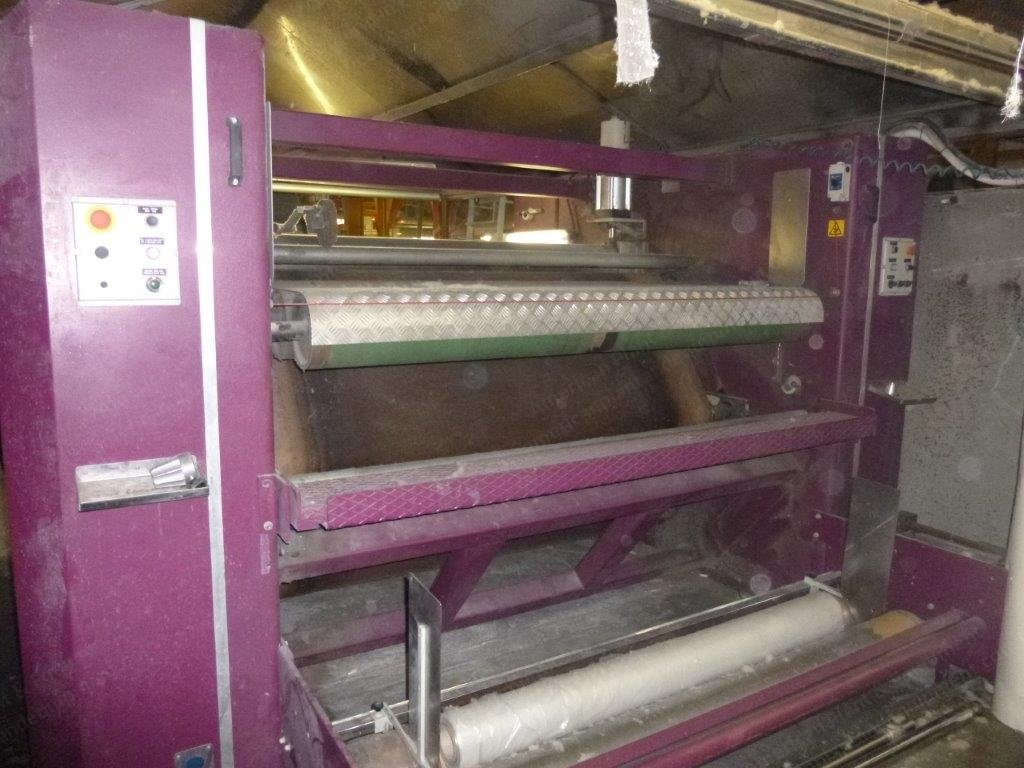

Monti Antonio, 906, 1998, 1800mm Working Width, 1000mm Cylinder Diameter

Monti Antonio, 906, 1998, 1800mm Working Width, 1000mm Cylinder Diameter

Description

  1. Overview

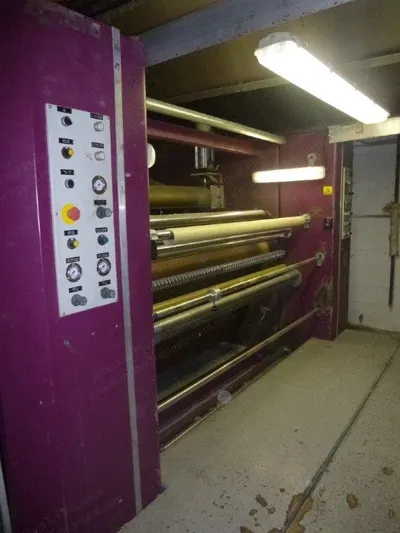

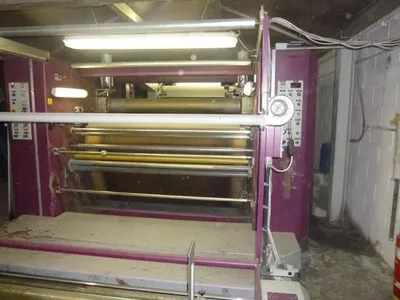

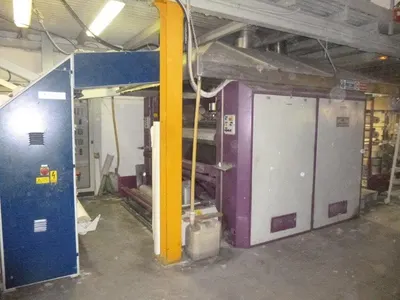

    1. Monti Antonio calender machine for transfer, lamination, thermosetting and inspection
    2. Brand: Monti Antonio
    3. Model: 906
    4. Year: 1998
    5. Rollers width: 2000 mm
    6. Useful working width: 1800 mm
    7. Fabric entry from unwinding group
    8. Fabric exit from calender machine: 2 possibilities in small roll, one in the up and the other in down

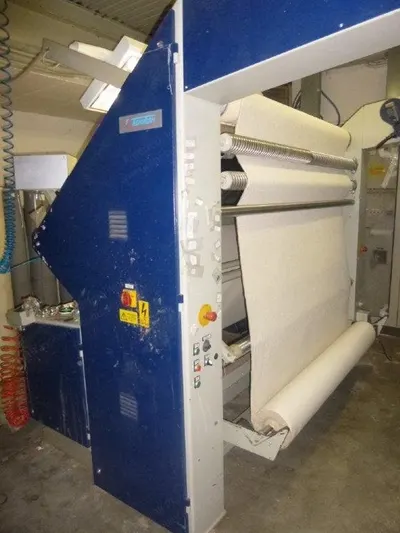

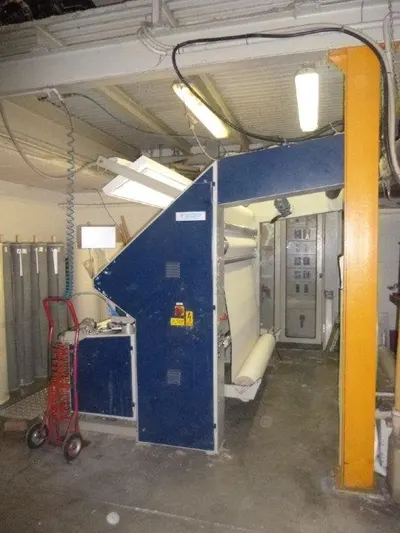

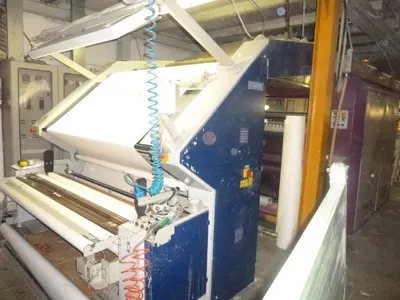

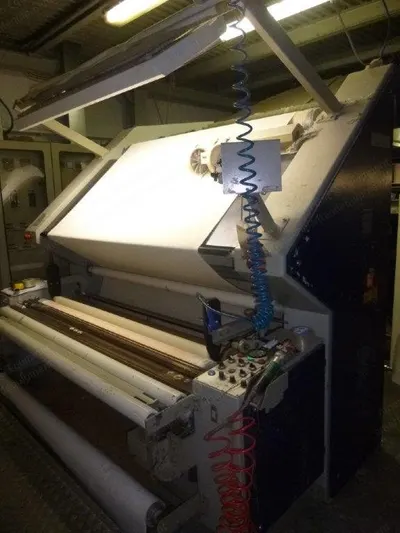

    9. Fabric exit from inspection machine: through an inspection machine, manufacturer Tecnoteam, with fabric exit in small roll
  2. Applications
    1. Transfer printing
    2. Direct inks reactivation
    3. Thermosetting
    4. Heatsetting
    5. Film/web thermobonding
    6. Plastification and coating with film
    7. Transfer printing of polyurethane, PVC and synthetic leather
    8. Metallization and gold lamination
    9. Transfer of special effects (e.g. snake skin)
    10. Embossing using release paper
    11. Heatsetting of "crush" effect
    12. Application of "black out" films and barriers
  3. Printing Cylinder Characteristics
    1. Diameter: 1000 mm (39.37)
    2. Width: 2000 mm (78.74)
    3. Working width: 1600 mm (62.99) / 1800 mm (70.87)
  4. Heating System and Temperature Control
    1. The cylinder is heated by three resistors (heating element) in a vacuum sealed diathermic oil bath, in complete absence of air and pressure (Monti Antonio S.P.A system)
    2. The temperature of the cylinder is set by a touch screen and is regulated through an electronic card; the temperature control is equipped with an alarm system and a limitation system of maximum temperature (230 °C)
  5. Tension Controls
    1. Tension control for printing or bonding material: entry - pneumatic brake and fabric manual brake; exit - independent motor, adjustable by potentiometer
    2. Tension control for printing paper or fusing film: entry - disk brake with pneumatic adjustment; exit - independent motor, adjustable by potentiometer
    3. Tension control for protection paper: entry - disk brake with pneumatic adjustment; exit - independent motor, adjustable by potentiometer
  6. Other Devices

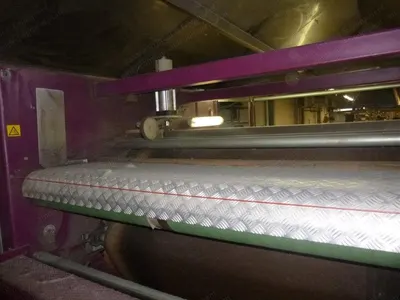

    1. Silicone upper pressing cylinder with adjustable pneumatic pressure and gauging bell distance between pressing cylinder and heated cylinder
