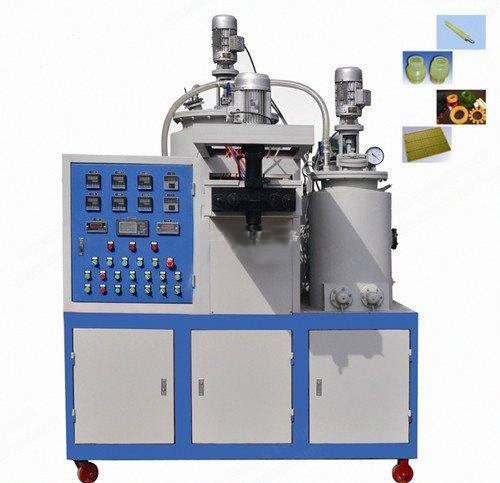

NovaStar, FG176, Low Pressure Elastomer Polyurethane Casting Machine, SCM Controlled (New)

NovaStar, FG176, Low Pressure Elastomer Polyurethane Casting Machine, SCM Controlled

Description

  1. Mix Head
    1. Mixing by agitator for better mixing performance.
    2. New-designed pouring valve for precision dosing; high degree of vacuum ensures no visual cellular.
    3. Color additive available.
    4. Individual equipped controller for mix head.
  2. Metering Unit
    1. High precision, low speed positive displacement gear pump.
    2. Variable output adjusted by VFD.
    3. Shaft seal with coupling and DOP.
  3. Components Storage and Temperature Conditioning
    1. Jacketed tanks with visual level tube.
    2. Digital pressure gauge for control and visualization of pressure with max. alarm value.
    3. Electrical resistance heater for temperature conditioning.
    4. Low speed agitator for even temperature distribution.
  4. Electrical Control System
    1. Fully controlled by SCM (single chip microcomputer).
    2. OP7 operator panel is simple; user can set machine parameters, status showing pouring time, temperature control and cleaning control, etc.
    3. Alarm function with acoustic warning.
  5. Specifications
    1. Model #1: output 200 to 800 g/min, prepolymer tank 120 L, MOCA tank 30 L, power 17 kW.
    2. Model #5: output 1000 to 5000 g/min, prepolymer tank 150 L, MOCA tank 30 L, power 19 kW.
    3. Model #10: output 3000 to 8000 g/min, prepolymer tank 220 L, MOCA tank 40 L, power 23 kW.
    4. Model #15: output 5000 to 15000 g/min, prepolymer tank 220 L, MOCA tank 40 L, power 26 kW.
    5. Model #20: output 8000 to 24000 g/min, prepolymer tank 300 L, MOCA tank 40 L, power 33 kW.
