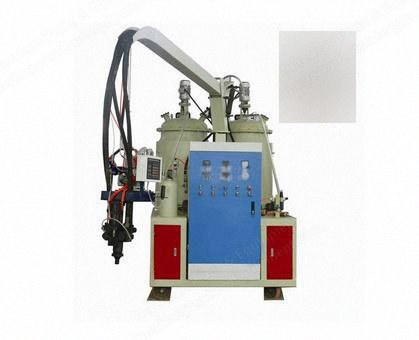

NovaStar, FG178 Series, Low Pressure Flexible Polyurethane Foaming Machine, Jacketed Tanks, SCM Controlled (New)

NovaStar, FG178 Series, Low Pressure Flexible Polyurethane Foaming Machine, Jacketed Tanks, SCM Controlled

Description

  1. Mix Head
    1. Mixing by agitator for better mixing performance
    2. New-designed pouring valve for precision dosing
    3. Auto-cleaning function mix head
    4. Color additive available
    5. Individual equipped controller for mix head
  2. Metering Unit
    1. High precision, low speed positive displacement gear pump
    2. Variable output adjusted by VFD
    3. Shaft seal with coupling and DOP
  3. Components Storage and Temperature Conditioning
    1. Jacketed tanks with visual level tube
    2. Digital pressure gauge for control and visualization of pressure with max. alarm value
    3. Electrical resistance heater for temperature conditioning
    4. Low speed agitator for even temperature distribution
    5. Chiller for option
  4. Electrical Control System
    1. Fully controlled by SCM (single chip microcomputer)
    2. OP7 operator panel is simple that user can set machine parameter, status showing pouring time, temperature control and cleaning control etc.
    3. Alarm function with acoustic warning
  5. Specifications
    1. Model #1: output 3.3 g/s min. to 13.3 g/s max., tank 60 L, power 6 kW
    2. Model #5: output 16.6 g/s min. to 66.6 g/s max., tank 80 L, power 8 kW
    3. Model #15: output 50 g/s min. to 250 g/s max., tank 120 L, power 9 kW
    4. Model #35: output 100 g/s min. to 600 g/s max., tank 120 L, power 12 kW
    5. Model #60: output 250 g/s min. to 1000 g/s max., tank 200 L, power 13 kW
    6. Model #120: output 666.6 g/s min. to 2000 g/s max., tank 200 L, power 15 kW
