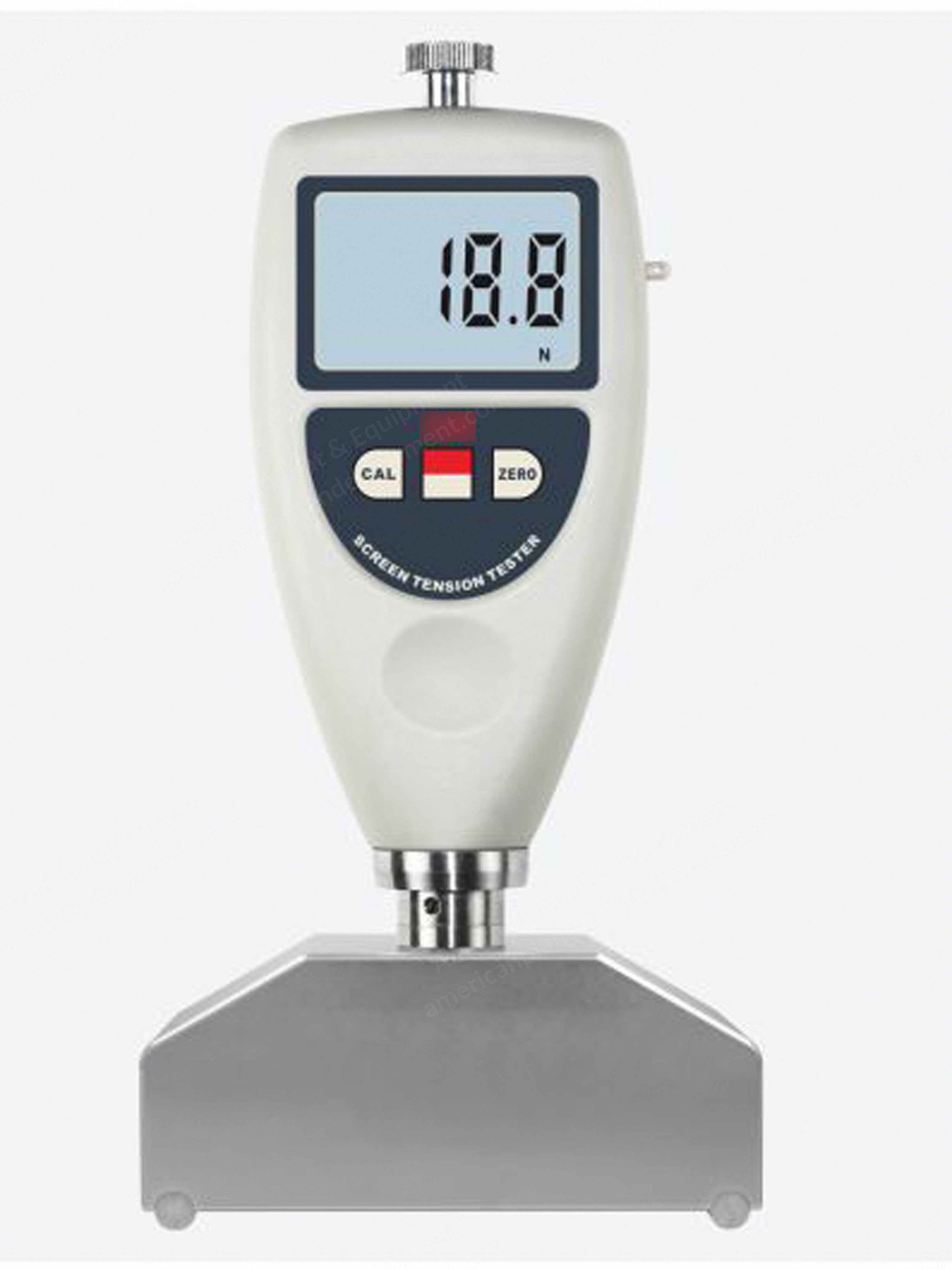

Description Overview Screen tension tester applicable to general wire mesh tension and steel mesh tension measurement. Suitable for screen printing and screen stencil measurement with high accuracy. Ideal and necessary tool for production of precise screen and steel mesh. Product Features Lcd digital display, eliminating reading error. Unit conversions between n/cm and kg/cm. Use usb data output and rs-232 data output to connect with pc. Provide bluetooth data output choice. Specifications Range: 0 to 60 n/cm, 0 to 6.0 kg/cm. Resolution: 0.1. Power supply: 4 x 1.5 v aaa (um-4) battery. Size: 175 x 95 x 40 mm. Weight: 490 g (not including batteries). Operating Environment Temperature: 0 to 40 °c. Humidity: 10 to 90 % rh. Included Accessories Standard accessories: main unit, calibration block, carrying case, operation manual. Optional accessories: usb data output, rs-232 data output, bluetooth data output. Printing Task and Determination of Screen Tension Ultra high tension wire mesh: circuit board and measuring scale, tension 16-20 n/cm. High strength wire mesh: multicolor and four-color printing (mechanical printing), tension 16-20 n/cm. High precision ultra fine wire mesh: high precision multi layer circuit printing, tension 25-30 n/cm. High precision polyester net (standard monofilament): multicolor and four-color printing (manual printing), tension 8-12 n/cm. Ordinary polyester net (standard monofilament): flat object, tension 8-12 n/cm. Nylon mesh: curve surface or rough object, tension 8-12 n/cm.
