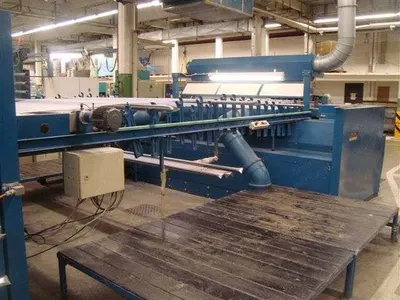

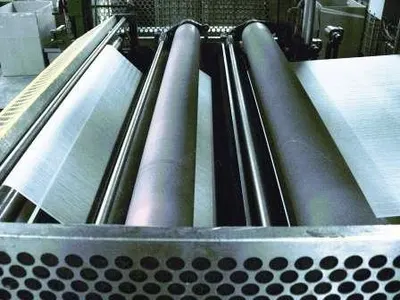

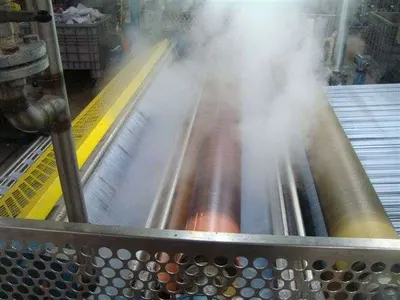

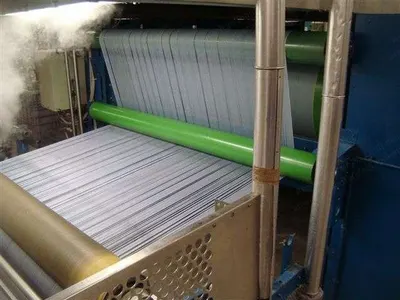

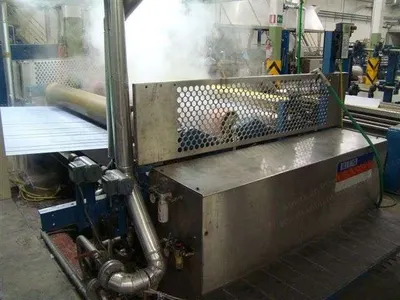

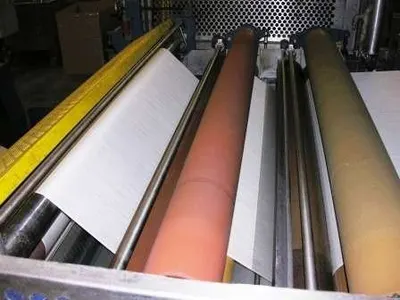

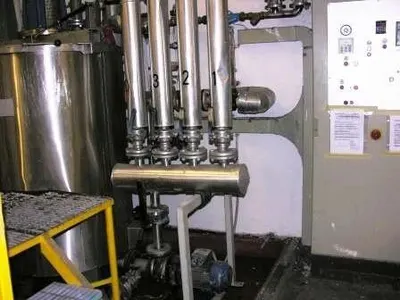

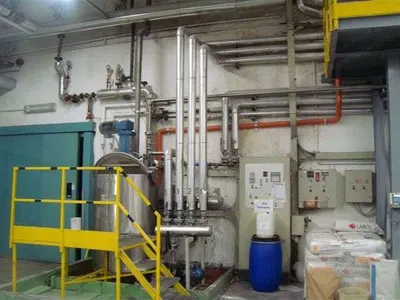

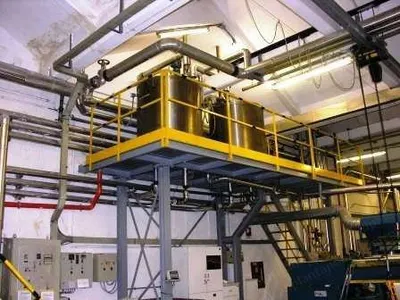

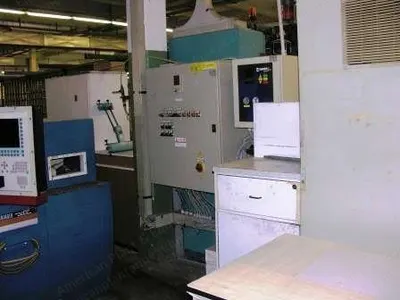

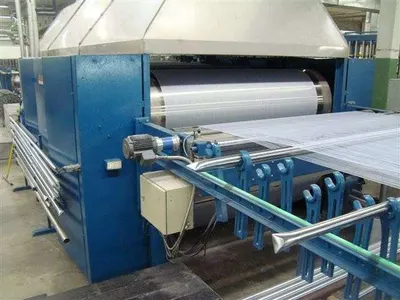

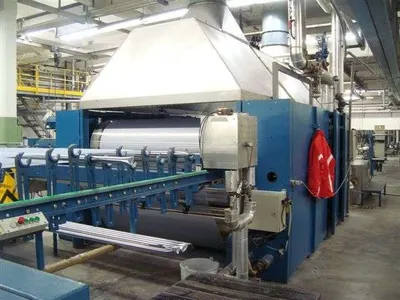

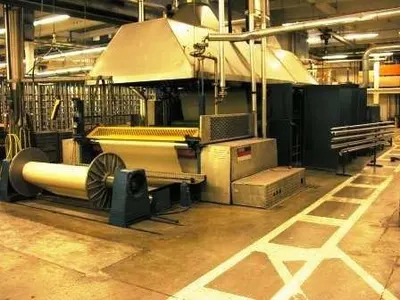

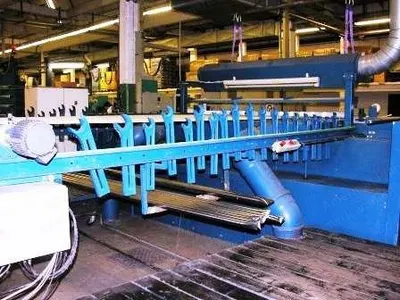

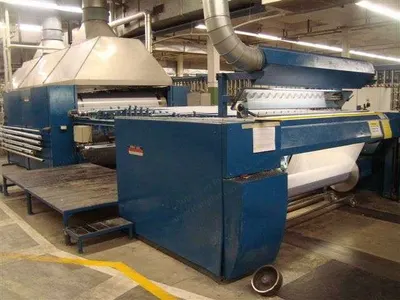

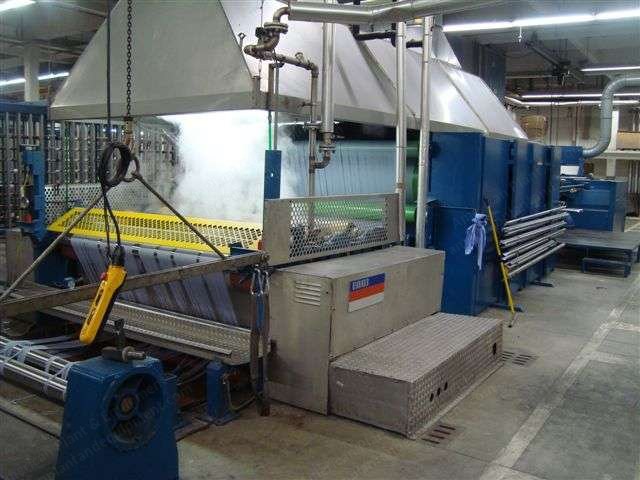

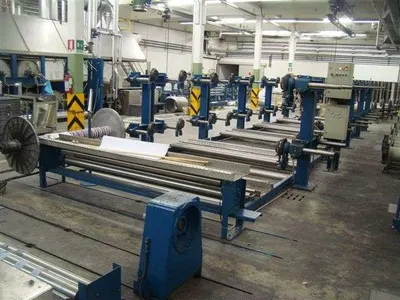

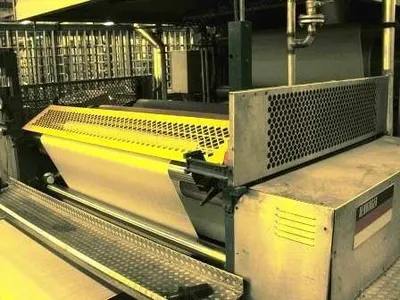

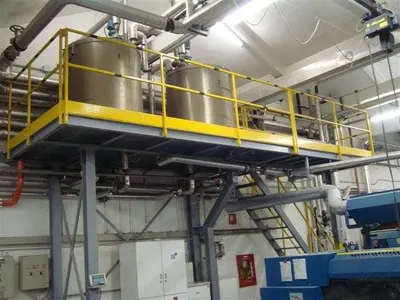

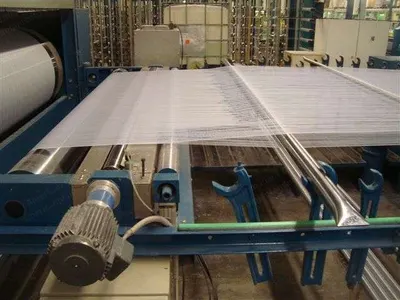

Description Overview Benninger-Zell high productive sizing range Model: Ben-Sizetec Type machine: BB –S/ZT4/4TKD Year: 1994 Item 001: Benninger Beams Creel Model: ZA20 For 20 fractional beams each width 2200mm (flange to flange) Max flange diameter: 1000mm With air pneumatic braking system Unwinding tension 160N for beam with flange diameter: 1000mm at the air pressure of 6 bar Beam-loading-unloading carrier with on-floor rails Item 002: Benninger Beam Creel 1 Position Model: SWA For feeding from sectional warp Beam flange diameter: 1000mm With cells of charge for tension yarn regulation Breaking system with steel strip With the fields of brake lining and servo pneumatic piston Item 003: Electronic Drafting Force Measuring Systems Model: MW Item 004: Benninger Size Boxes Model: TDK Tank inox steel capacity 240 lt Entry with 3 cylinders: 1 cylinder inox steel, 1 cylinder covering rubber diameter: 205mm, 1 cylinder inox steel Cylinders width: 2400mm Working width: 2200mm Each box with 2 pairs of squeezing cylinders and 2 double immersion cylinders covering rubber Adjustable squeezing pression up to 5.000 dan (kgf) Pneumatic device for pressure and lifting of the cylinder Automatic regulation of squeezing pressure by Ben-Sizetec system Automatic size feeding device Handymat sizing box control system with display Wet separating field for impregnating box for separation of the warp in two layers With 1 teflon-covered steam-heated measuring cylinder and 1 teflon-covered steam-heated deviating cylinder Item 005: Zone of Divide in Semi Wet By 2 rolls compensator for cells of charge for tension yarn regulation Item 006: Benninger Compact Dryer Type: ZT8 8 drying cylinders width 2400mm, 6 of them tefloned Diameter: 800mm Saturated steam 3.5 bar Max temperature 147°C 4 electronic temperature regulations Comand by means of 3 phases motor and inverter Standard hooder with 2 fans 1 cylinder with electronic / pneumatic compensation device CV oiling and waxing device at the exit Item 007: Zone of Divide in Drying By 7 rolls of separation for sectional warp beams and 19 rolls of separation for fractional warp beams Item 008: Mahlo Humidity Electronic Control and Regulation Type RMS-7S Dust suction and filtering system Item 009: Benninger High Productive Headstock/Beaming Model: BB Minimun working width: 1200mm Maximun width: 2400mm Maximum working width: 2300mm Suitable for beams up to max flange diameter: 1000mm Speed from 0.4 to 125 m/min Chain tension 1500 dan Inverter control Extensible reed Power unit for driving the warp beam to 3 cylinders 1 pressing device for warp beam with 3 rolls Automatic loading & unloading and doffing for beams Electronic system for tension control of warp Programmer computerized microprocessor automatic control system type Ben Sizetec for control hardware with primary elaboration and hardware PLC Software primary elaborator and software PLC with monitor and modem Item 010: Electrical Panel External General Command of the Machine Size kitchen Working capacity 1200 lt With automatic temperature regulation system Water counter 2 storage tanks, working capacity 1000 lt each Temperature regulation
