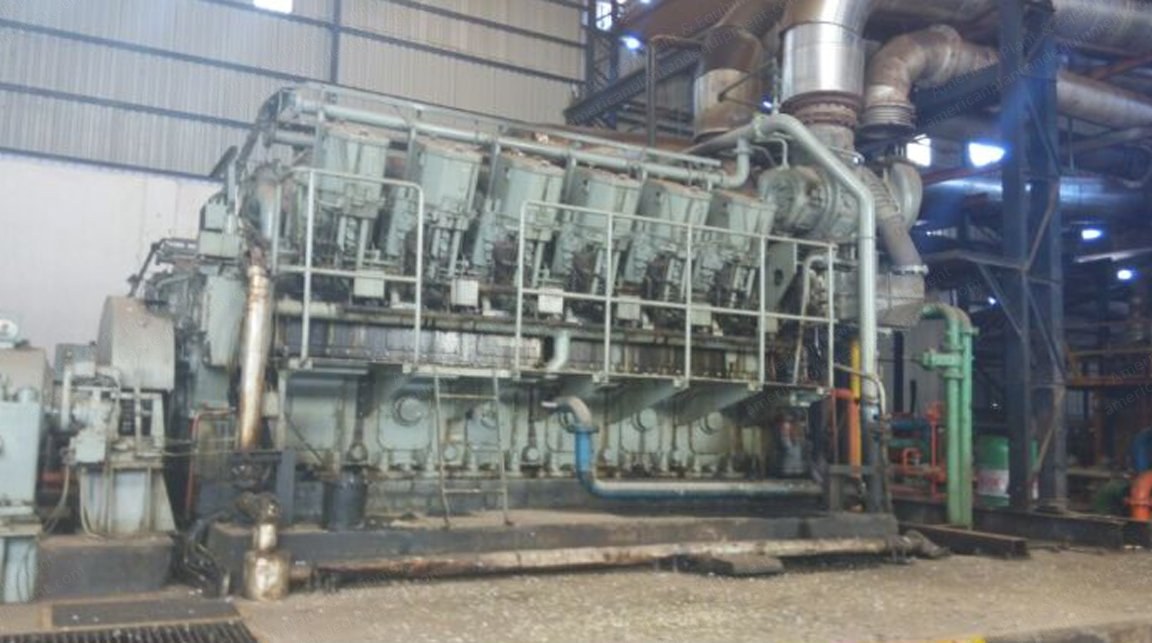

Fuji, 12VH32, 6.4 MW, 50Hz, 600 RPM Diesel Generating Set

Fuji, 12VH32, 6.4 MW, 50Hz, 600 RPM Diesel Generating Set

Description

  1. Overview
    1. Fuji Diesel Generating Set
    2. 3.2 MW x 2 = 6.4 MW
    3. Type: 12VH32 4 cycle
    4. Overload power: 5700PS (site elevation: less than 500 M. (ambient temp.: 45 * C, engine cooling water temp: 35.C)
    5. Overload power: 6270PS (+10* of rated horse power: 1 hr every 12 hours)
    6. Rated speed: 600 rpm
    7. Mean piston speed: 9.4 m/sec
    8. Cylinders: 12
    9. Cylider bore x stroke: 320 x 470mm: 4 stroke
    10. Break mean effactive pressure: 18.8 kgf/ cm2
    11. Compression ratio: 12.1
    12. Max. combustion pressure: 150 kg/ cm2
    13. Specific fuel oil consumption: 137 g/PS *h +5% at 100% load (net cal. value of used oil 10200 kcal/kg)
    14. Lube oil consumption: less than 0.8 EPS, H
    15. Description of fuel oil: light oil (HSD. LOD), heavy oil (LSHS)
    16. Description of lube oil for deisel engine: API CD class, SAE 40
    17. Description of lure oil for supercharger: turbine oil (SAE 20 or 30)
    18. Starting system: compressed air
    19. Hours run: 16000 hrs. to 17,000 hrs
    20. Quantity: 1
