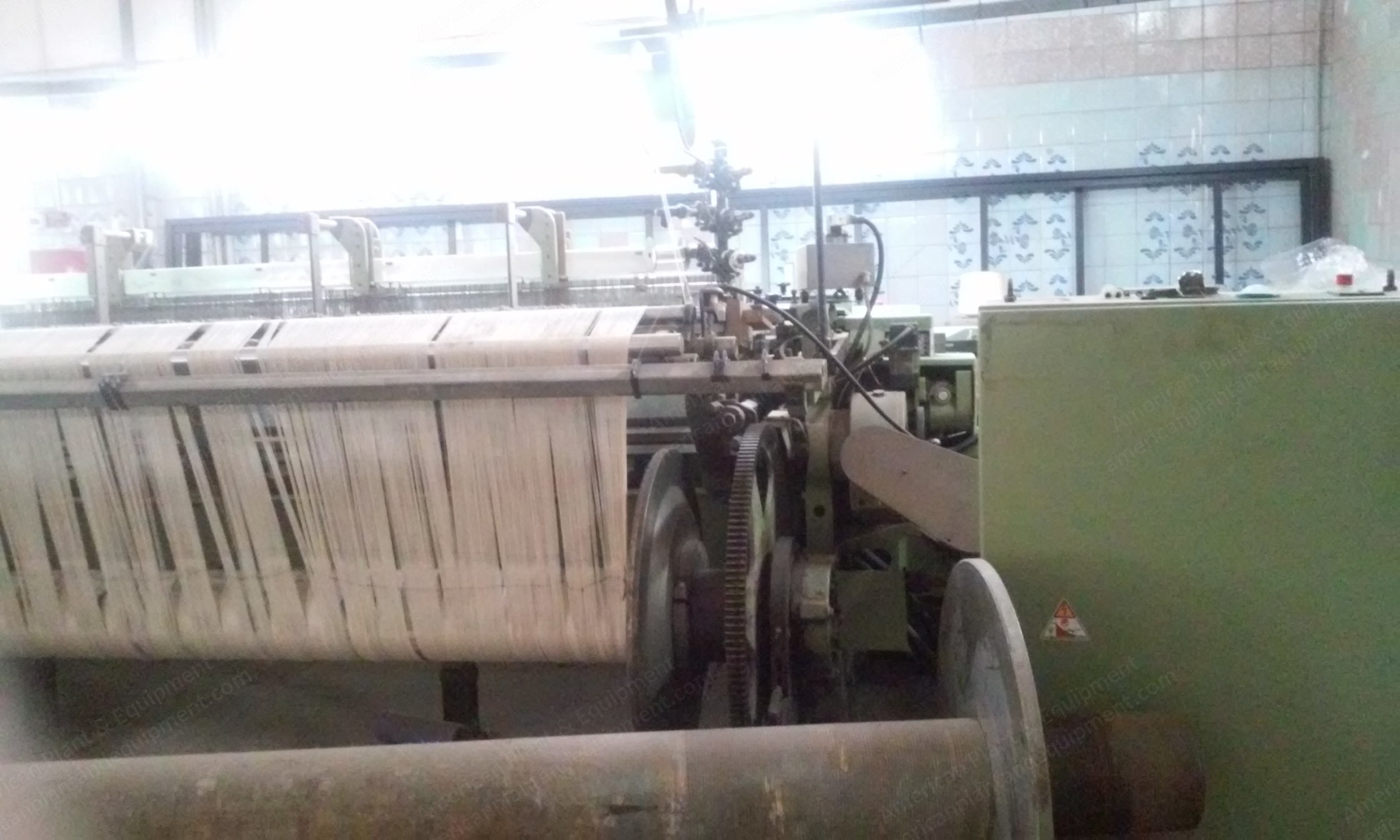

Sulzer, P7M R3 B 280 N2 SP 012, 1999, Working Width 2800mm, Staubli 2665 MR3 Dobby, Reinforced for Heavy Fabrics

Sulzer, P7M R3 B 280 N2 SP 012, 1999, Working Width 2800mm, Staubli 2665 MR3 Dobby, Reinforced for Heavy Fabrics

Description

  1. Overview
    1. Sulzer projectile weaving machine
    2. Model: P7M R3 B 280 N2 SP 012
    3. Year: 1999
    4. The loom was specially reinforced in year 2016 for heavy fabrics
  2. Specifications
    1. Working width: 2800 mm
    2. Machine structure in R3 design
    3. Main drive: 5.0 kW, 380 V, 50 Hz
    4. Reinforced sley, 4 degrees
    5. Microprocessor controlled devices
    6. Connector for data monitor
    7. Frequency controlled main drive motor
    8. Blow off device at picking lock with external air supply, 6 pressure bar
    9. 1 electronic pick counter for 5 shifts integrated in the system
    10. 1 light barrier
    11. 1 reinforced main drive R3 design
    12. 2 electronically controlled warp let-offs for half warp-beams for disc diameter up to 940 mm, tube diameter 216 mm, incl. sensors and electrical connections
    13. 1 warp tensioner reinforced, supplementary warp deflection, R3 design
    14. 1 warp stop motion
    15. 6 contact bars for warp stop motion
    16. 1 reinforced dobby Stäubli 2665 MR3 with 10 jacks
    17. 10 reinforced shaft drives for distance between end eyes of heald of 331 mm
    18. 1 floating take-up roller Ø 140 mm, R3 design
    19. 1 set of guide teeth in block form, divided half/half
    20. 1 set projectiles D12
    21. 1 set of half cross leno klocker at picking and receiving side, with cutting device incl. take-up device for cut selvedges
    22. 1 half cross leno klocker in the center, with cutting device, for 2 width weaving
    23. 2 separate thread bobbins for auxiliary selvedge
    24. 2 electronically controlled weft yarn brakes, system Sulzer
    25. 2 electronic weft detectors, type Löpfe L1
    26. 1 temple pair with temple cylinders, short, with pressure from above, complete
    27. 1 spreader bar
    28. 1 slow motion gear with automatic pick finding and shaft levelling device
    29. 1 lubrication device GS
    30. 1 step board, warp beam side
    31. 2 full warp beams, disc Ø 800 mm, tube Ø 216 mm
    32. 1 bobbin stand with bobbin holders
    33. 2 weft feeders Iro Galaxy

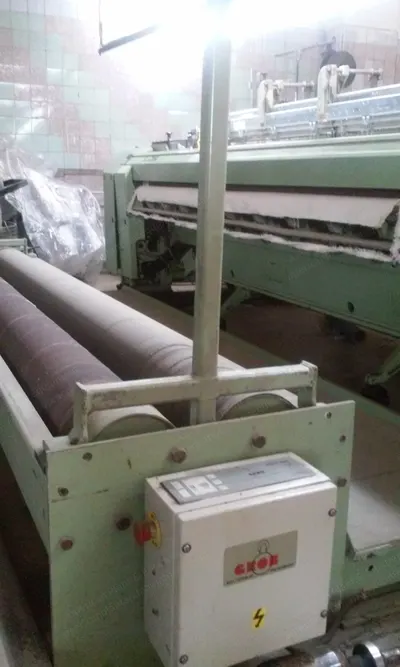

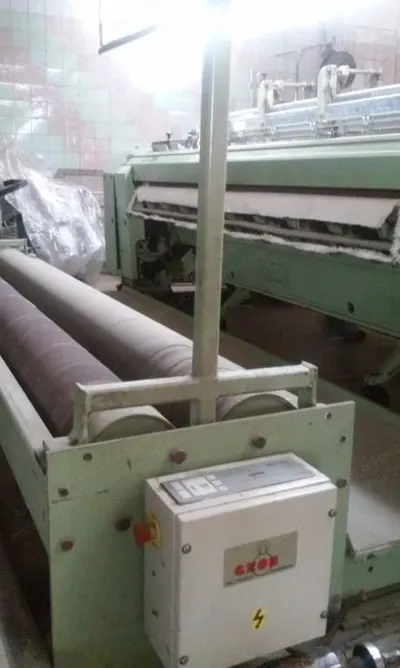

    34. 1 batching motion type Grob, with traverse motion
    35. 2 winding cores
