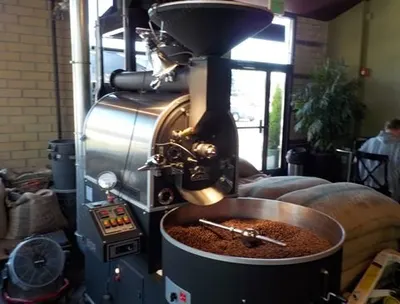

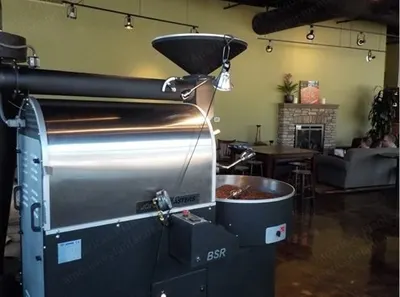

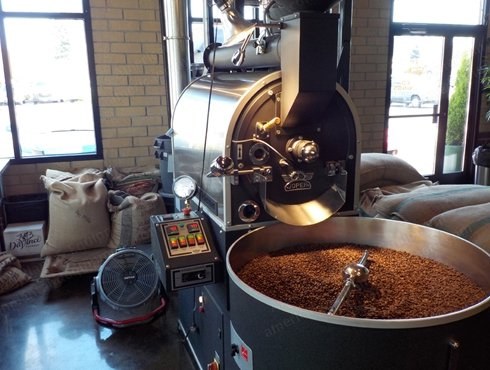

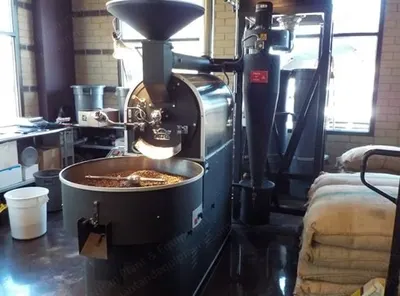

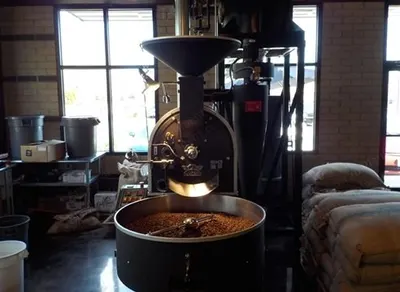

Joper, 15 Kilos, 15 kg Batch Capacity, Natural Gas, 4 Motors

Joper, 15 Kilos, 15 kg Batch Capacity, Natural Gas, 4 Motors

Description

  1. Overview
    1. Batch capacity: 15 kg (33 lbs)
    2. Capacity per hour: 60 kg (132 lbs)
    3. Roasting time: 15 min average
    4. Cooling time: 3 min
  2. Control and Operation
    1. Control design: manual/elapsed time
    2. Temperature readings: inlet air and bean temp
    3. Air control: adjustable
    4. Operation type burner: micro-fine adj with limit set
    5. Gas flow reader: yes
  3. Burner and Fuel
    1. Burning power: 140,000 btu/h (low-nox) 15 kilo
    2. Fuel type (gas oven): natural gas
  4. Electrical Specifications
    1. Power requirements: 20 amps single and 10 amps 3 phase
    2. Voltage/frequency/phases: 220/50-60/trip-single
  5. Dimensions and Weight
    1. Weight: 737 kg (1,620 lbs)
    2. Height: 7'3"
    3. Width: 3" controls
    4. Depth: 8' w/ adjustable remote
  6. Exhaust and Ventilation
    1. Exhaust diameter: 140mm (5.5)
    2. Remote chaff cyclone: position adjustable
  7. Motors and Fans
    1. No. of motors: 4
    2. Roaster fan (normal work conditions running at 60hz, damper 70%): 4
    3. Cooler fan (running at 60hz): 1283 m3/h/755 cfm
