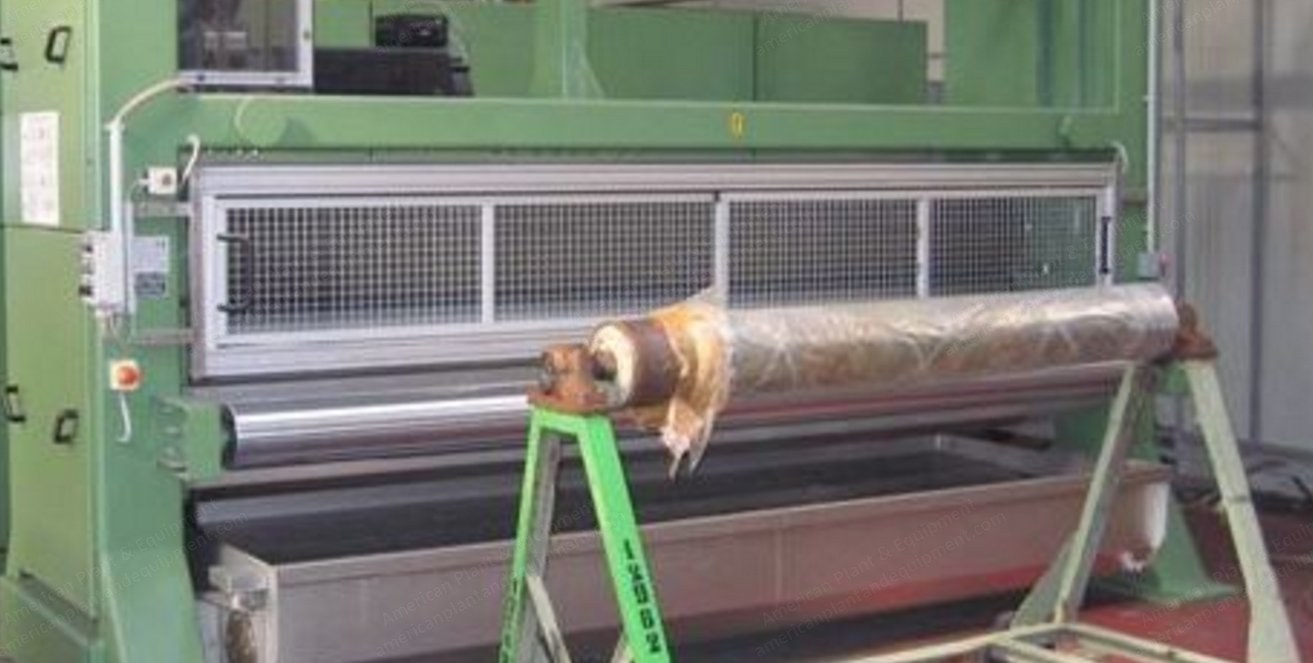

Description Overview Roller squeezers Type: FMC-3 Year: 2004 Number of cylinders: 3 Dimensions Width: 3600 mm Working width: 3400 mm Upper and lower cylinders: 370 mm diameter Central cylinder diameter: 230 mm, chrome and satin One return cylinder: chrome steel and ground on the fore front Cylinder 300 mm: chrome-plated steel and ground Construction Equipressure foulard Frame in painted steel sheet Upper and lower cylinders with internal compensation axes Covered in rubber, 90 shore hardness Parallel cylinder grinding Installed on load cells for adjustment of the shot up to a maximum of 4000 kg mounted on top of the foulard Drive and Power Motor power of 57 kW for the command, using V-belts, the central cylinder Safety Two handguards in stainless steel Two security guards, one on entry and one on output Consisting of sliding doors manually guided, each door equipped with its own switch with electromagnetic lock Safety circuit is fully redundant and includes two security modules in dual channel with feedback control A sensor shaft is stopped and two contactors for motors On the structure of screens are also fitted with two emergency buttons Condition Max pneumatic pressure: 26,000 kg
