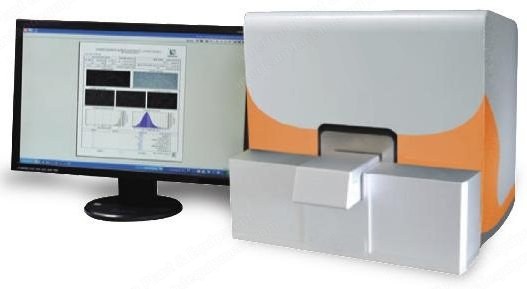

IDM Instruments, FDG-A1, Filler Dispersion Grader, LED Light , 110V/220V

IDM Instruments, FDG-A1, Filler Dispersion Grader, LED Light , 110V/220V

Description

  1. Overview
    1. This instrument provides automatic visual analysis for rapid, comparative and quantitative assessment of filler dispersion in rubber, which may affect many properties including abrasion resistance, tensile strength, tear strength and fatigue resistance.
    2. By utilizing oblique illumination of 30 degrees on the sample, a rubber specimen freshly cut by razor blade, light hitting any agglomerates, is reflected into the sensor with magnification (optical range of 3-57 microns for standard model or 1-20 microns for high resolution model) the bi-level analysis with auto determined thresholds and particle diameter analysis are computed from the captured image.
    3. Original image captured in colour with selectable exposure and colour channel allows the grader to analyse macrodispersion of all types of fillers, such as carbon black, silica and mineral fillers for black and non-black compounds.
    4. Equipped with multi-light matrix and moving camera with autofocus function on precision rails allows multiple operator’s scans per sample placement, either automatically or manually. This feature helps to reduce operator error and improves repeatability.
    5. Selectable illumination direction helps eliminate influence of cutting lines for better dispersion analysis.
    6. Built-in 5 sets, 4 kinds of ISO Philip 10-scale standard: a) carbon black (CB) – 30x and 100x; b) reinforcing carbon black (RCB) – 100x; c) reinforcing carbon black with silica (RCB/silica) – 100x; d) semi-reinforcing carbon black (SRCB) – 100x for automatic assessing the level of dispersion of carbon black and silica in rubber (x and y values).
    7. The system also provides 1000 groups of file establishment capacity for users to freely set up their own standards for automatic grading.
    8. Agglomerate sizes and statistical analysis as well as fillers dispersion (dispersion%, z%) are automatically computed as per ASTM D7723.
    9. The system automatically stores each captured image and testing result, which can be edited, deleted, saved or exported to Microsoft Excel.
  2. Pc System
    1. IBM compatible PC with Windows 7.
    2. 1 TB HDD.
    3. Pre-installed U-CAN FDG software.
    4. 21-inch LCD colour screen.
    5. Colour printer.
  3. Dimensions
    1. L: 430 x W: 240 x H: 310 mm.
  4. Environment
    1. 10 °C to 40 °C.
  5. Electrical Requirements
    1. 110 V 2 A or 220 V 1.2 A.
  6. Options
    1. High manual cured sample cutter.
    2. Unvulcanised sample preparation unit.
  7. Standards
    1. ASTM D773.
    2. ISO 11345 (methods C, D, E).
