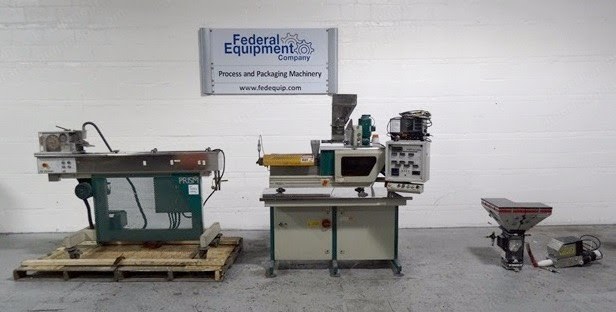

Prism, TSE 24TC, 1996, Twin Screw Extruder, 24mm, 40:1 L/D, Varicut 24 Pelletizer

Prism, TSE 24TC, 1996, Twin Screw Extruder, 24mm, 40:1 L/D, Varicut 24 Pelletizer

Description

  1. Overview
    1. Prism pelletizing line
    2. Model: TSE 24TC
    3. Year: 1996
  2. Extruder

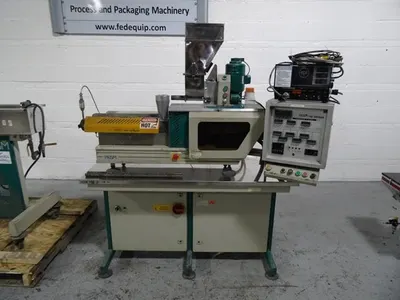

    1. One Prism parallel twin screw extruder
    2. 24 mm co-rotating screws
    3. 40:1 L/D
    4. Electrically heated
    5. Water cooled barrel
    6. Three top vents with two plugged
    7. Six barrel zones with on-board control panel
    8. 3.7 kW
    9. 230 volt AC motor drive with VFD controller
    10. Two hold stand die
  3. Feed System

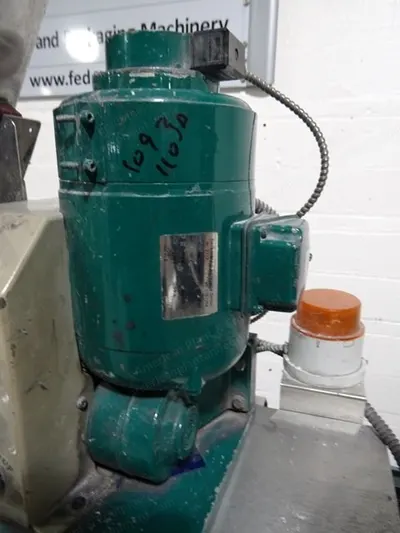

    1. One screw feeder with 0.26 kW motor drive with agitated hopper
    2. One Maguire weigh scale feeder, model WSB-440R
    3. Three material hoppers
    4. One additive feeder with hopper with controller
  4. Pelletizer

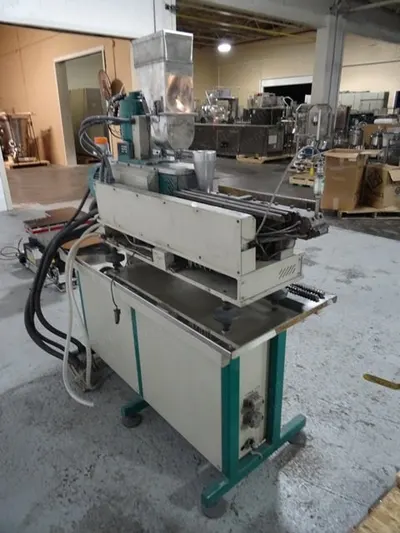

    1. One Prism water bath pelletizer unit, model Varicut 24
    2. Approximately 8 in x 8 in x 59 in long stainless steel water bath
    3. 2.5 in wide air wipe with blower
    4. 2 5/8 in wide stand pelletizer with pull rolls
    5. Helical rotor
    6. 1.1 kW motor drive
