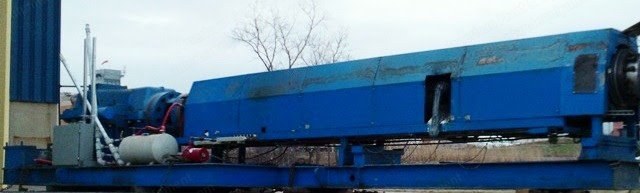

Egan, 8035 D-H, 8" Pelletizing Line, 32:1 L/D, 600 HP, Gala 7 Underwater System

Egan, 8035 D-H, 8" Pelletizing Line, 32:1 L/D, 600 HP, Gala 7 Underwater System

Description

  1. Overview
    1. Egan 8” pelletizing line with Gala 7 system
  2. Extruder specifications
    1. 8” diameter Egan extruder
    2. Model: 8035 D-H
    3. 32:1 L/D ratio
    4. Vented barrel
    5. Electrically heated
    6. Water cooled
    7. 11.73:1 gearbox ratio
    8. 600 hp DC drive with Safetronics SCR

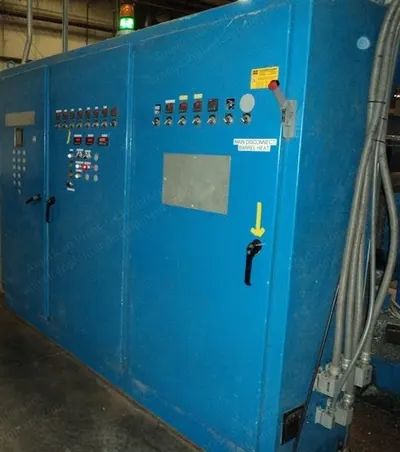

    9. Updated temperature control panel with 6 barrel zones and 1 die zone

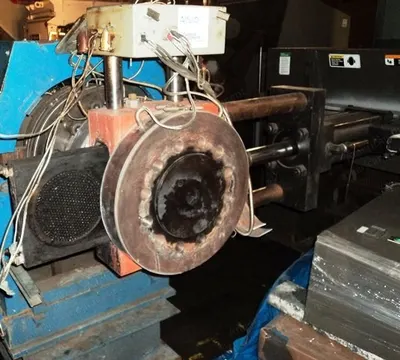

  3. Screen changer
    1. One used 8” Beringer hydraulic screen changer
    2. With 2 hp hydraulic power pack
  4. Pelletizing system
    1. One used Gala 7 underwater pelletizing system
    2. With 15 hp cutting head
    3. With die plate and water box
    4. With Gala 250 gpm model TWS250 tempered water system
    5. With Gala model 52VDW spin dryer
  5. Product specifications
    1. Length to diameter ratio: 32
    2. Manufacturer: Egan
    3. Model: 8035 D-H
    4. Motor hp: 600
    5. Screw diameter: 8 in
