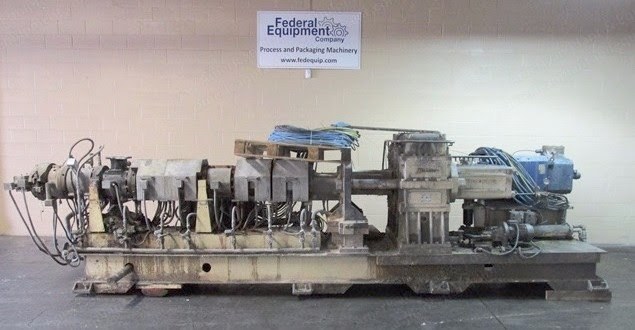

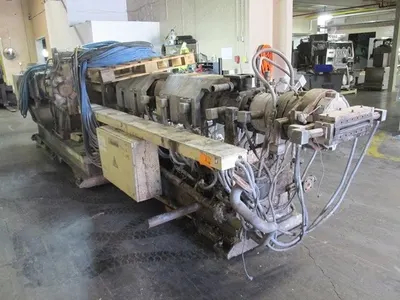

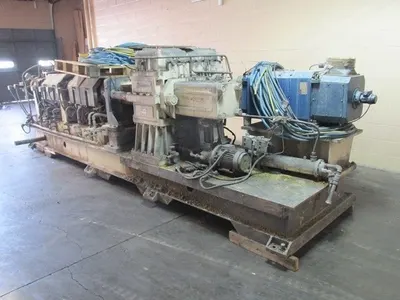

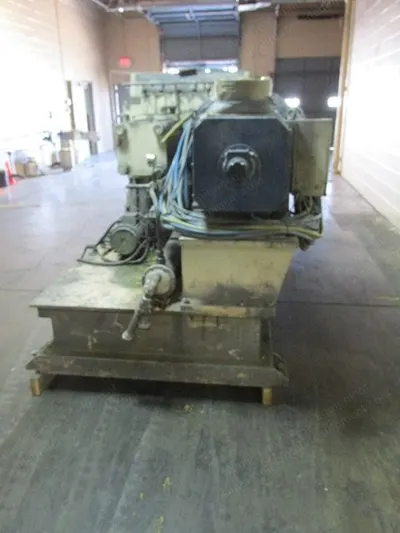

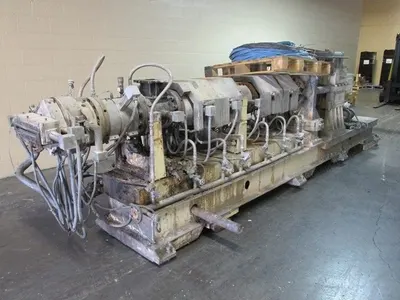

Maris, TM92M, Pelletizing Extrusion Line, 92mm, 30:1 L/D, 292 kW

Maris, TM92M, Pelletizing Extrusion Line, 92mm, 30:1 L/D, 292 kW

Description

  1. Overview
    1. Maris pelletizing line
    2. 92 mm twin screw co-rotating extruder
  2. Extruder Specifications
    1. Type TM92M
    2. 30:1 L/D
    3. Electrically heated
    4. Water cooled barrel with closed water circulation system with pump, heat exchanger and reservoir
    5. 9 total barrel sections consisting of 1 feed section, 7 non-vented sections and 1 vented barrel section
    6. 292 kW, 460 volt DC motor with SCR controller
    7. Control panel with Eurotherm 7100S controllers and operator touch screen interface
  3. Downstream Equipment
    1. One strand die
    2. One 19 in wide x 25 in long stainless steel water bath
    3. One stainless steel air wipe
    4. One Cumberland stand quietizer pelletizer, model Q212, nominally 12 in wide with pull rolls
    5. 48 blade helical rotor driven by 15 kW, 416 volt AC motor with VFD controller
    6. One Vibra Maschinenfabrik classifier, type SRK 10/55-II-V-DV, stainless steel, approximately 22 in wide x 42 in long classifying section
  4. Product Specification
    1. Manufacturer: Maris
