Complete Ring Spinning Plant, 3840 Spindles, 3675 to 4605 kg/24h Capacity

Complete Ring Spinning Plant, 3840 Spindles, 3675 to 4605 kg/24h Capacity

Description

  1. Overview
    1. Complete ring spinning plants for worsted wool-acrylic-mix fibers, year 1978 to 2000
    2. 3840 spindles
    3. Medium count – Nm 30.000
    4. Production capacity: 3675 kg/24 hours of 100% wool
    5. 4605 kg/24 hours of 100% acrylic
    6. Still running
  2. Item 001: Spinning Preparation for Wool/Acrylic Fibers

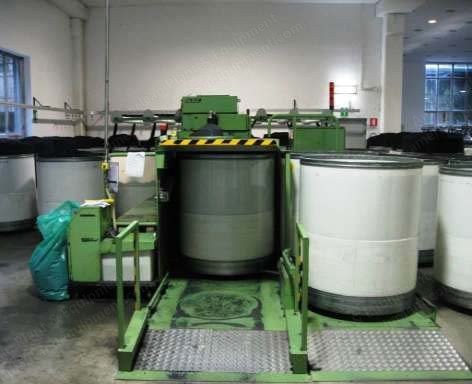

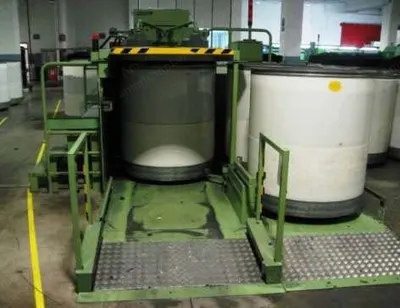

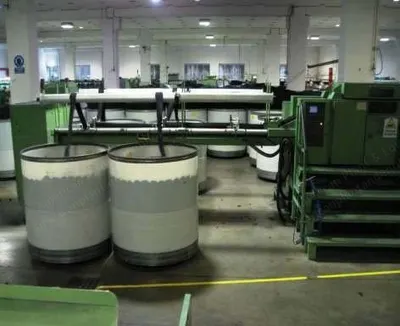

    1. N 1 NSC draw intersecting (gill box) model GC15, year 2000, 1st passage: feeding creel 8 positions cans 1200 x 1400mm, exit 1 sliver in 1 can 1200 x 1400mm with automatic cans change, oiling device at the exit, electronic autoleveler, motors with inverter control, power 3ph 380 volts - 50 Hz
    2. N 1 NSC draw intersecting (gill box) model GC15, year 2000, 2nd passage, double precombing: feeding creel 3+3 can 1200 x 1400mm, exit 2 slivers in one can 1200 x 1400mm with automatic can change, 3ph x 380 volts - 50 Hz
    3. N 1 NSC draw intersecting (gill box) model GC15, year 2000: feeding creel 8 positions can 1200 x 1400mm, exit one sliver in one can 1200 x 1400mm with automatic can change, oiling device at the exit, power 3ph 380 volts - 50 Hz
    4. N 160 cans 1200 x 1400mm
  3. Item 002: Spinning Line for Worsted Wool or Mixed Fibers, or Acrylic
    1. 1280 spindles
    2. Medium count – Nm 30,000
    3. Production capacity: 1225 kg/24 hours of 100% wool
    4. 1535 kg/24 hours of 100% acrylic
    5. N 1 Sant'Andrea finisher model RSS 2: feeder creel to 40 cans, n.20 bobbins, tube length 290mm diameter 50mm, complete automatic doffing, automatic feeder of tubes, year 1981 (all reconditioned in 2002)

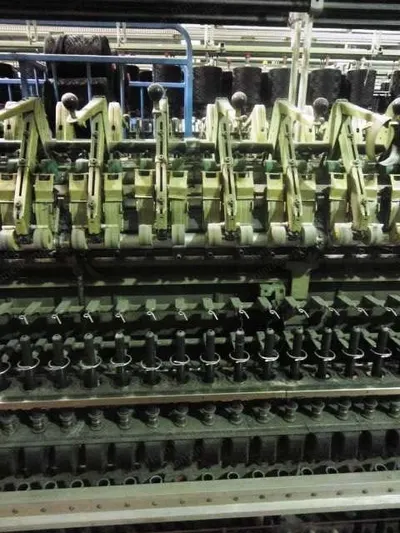

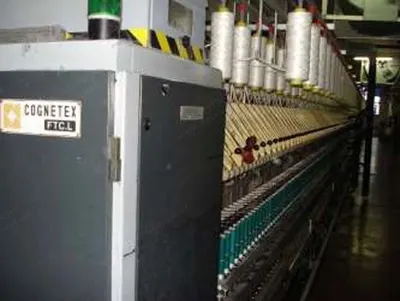

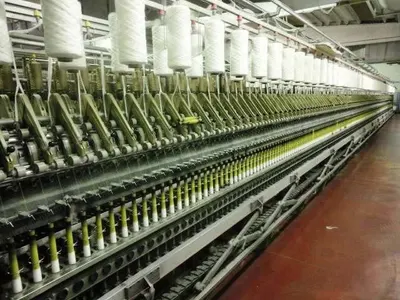

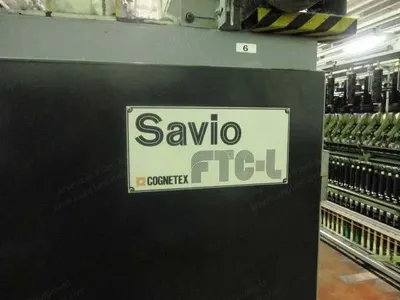

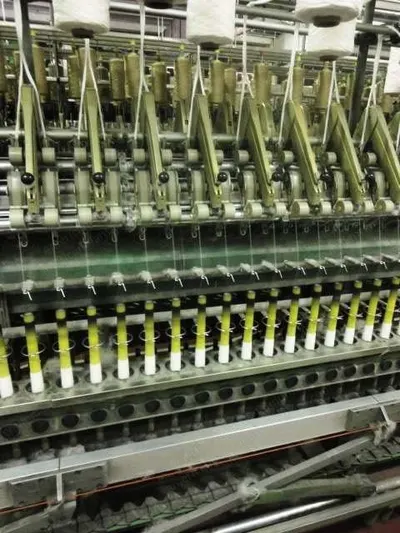

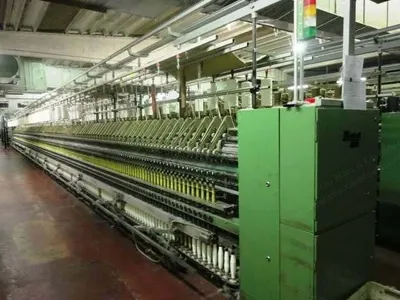

    6. N 1 Cognetex ring spinning model FTC 8L: 640 spindles, monopower device, ring diameter 51mm or diameter 60mm, gauge 82.5mm, tube length 260mm, draw system SKF PK 1601, automatic doffing mono-pince, Magitex fan type to chain with collection box, automatic tubes loader, year 1995

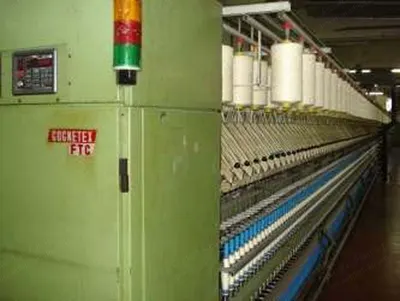

    7. N 1 Cognetex ring spinning model FTC 8L (green): n.640 spindles, monopower device, ring diameter 60mm, gauge 82.5mm, tube length 260mm, draw system SKF PK 1601, automatic doffing to double pince, automatic loader tubes, Magitex fan type to chain, year 1986

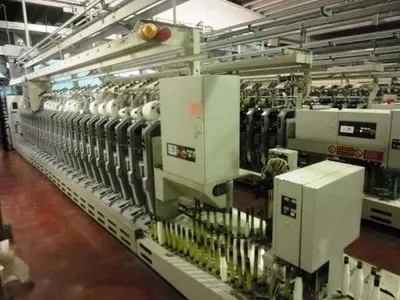

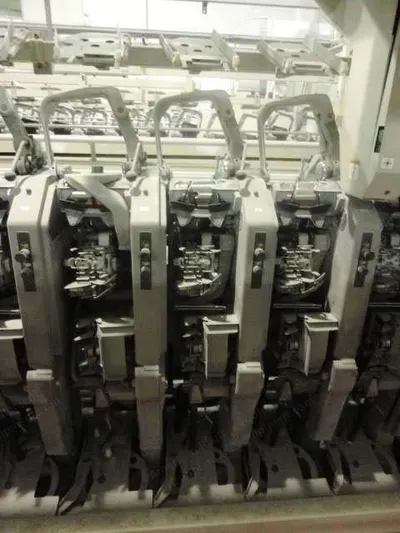

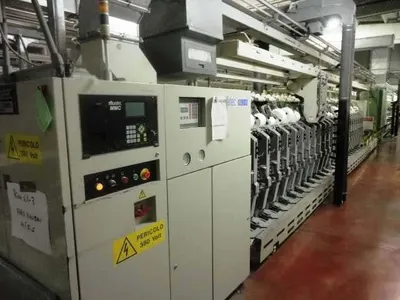

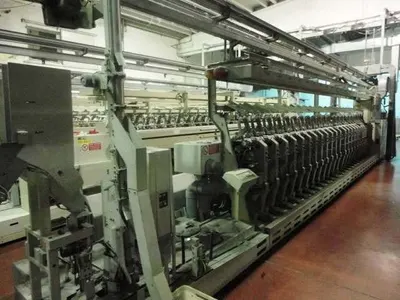

    8. N 1 Savio automatic winder model Espero E: n.32 heads, head device SX, automatic feeding to coops with loader type Smart Feeder, traverse 6" (152mm) x conical cone 4°20', cylinder to 2 principles adjustable step diameter 94mm, waxing device + break yarn double section, Mesdan knotting device type splicer model 490L, Peyer electronic cleaning yarn, 1 trolley automatic doffing of cones, carpet transporter and unloading cones, lighting, inspector control, Electroject cleaning fan, year 1996
    9. N 1 Savio automatic winder model Espero E: n.40 heads, head device DX, automatic feeding to coops with loader, traverse 6" (152mm) x conical cone 4°20', cylinder to 2 principles parallel, waxing device + break yarn double section, Mesdan knotting device type splicer model 490L, Peyer electronic cleaning yarn, 2 trolleys automatic doffing of cones, carpet transporter and unloading cones, lighting, inspector control, Magitex cleaning fan, year 1993
    10. Accessories for complete plant: spinning cans, 70 cans 700x100 with plate spring, 80 cans 700x100 without plate spring, 32 cans 1200x1200 for preparation passages
    11. Finisher tubes different colors, 9700 (blue, green, red)
    12. E 10 - different box
    13. Trolleys for coops 140x80 number: 81
    14. Tubes for spinning different colors
    15. Trolleys for cones, revolver pneumatic
    16. 2 electronic trolleys: Cesab Eco ML 300 3.0 tons, Cesab Eco D 16 1.6 tons
    17. Available many spare parts, plus whiler
  4. Item 004: Spinning Line for Worsted Wool or Mixed Fibers, or Acrylic
    1. 2560 spindles
    2. Medium count – Nm 30.000
    3. Production capacity: 2450 kg/24 hours of 100% wool
    4. 3070 kg/24 hours of 100% acrylic

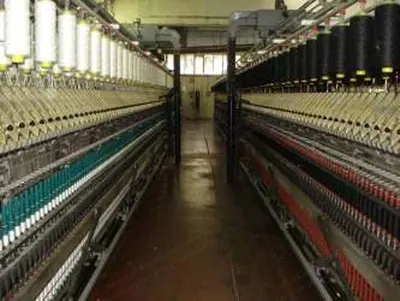

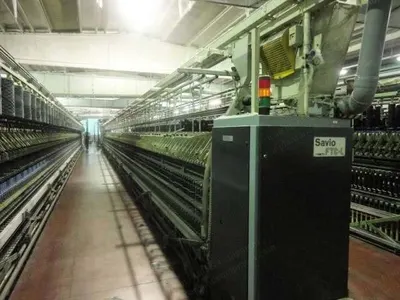

    5. Spinning department: N 1 - year 1994 - Cognetex ring spinning frames model FTC8L, 640 spindles each, arm draw system SKF 1601, tube 280mm, ring diameter 55mm, gauge 82.5mm, automatic doffing, link-coner

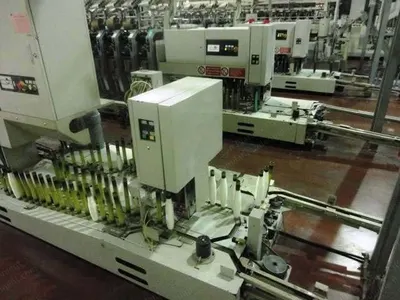

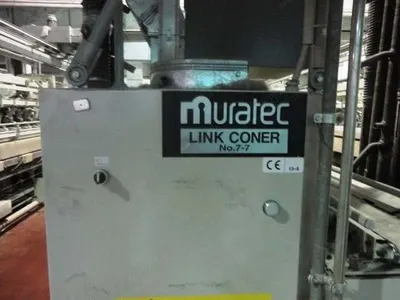

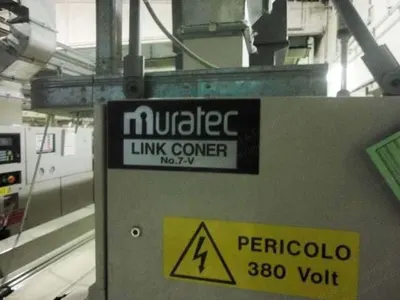

    6. N 1 - year 1997 - Murata link coner, Autoconer winding machines model 7 V, 28 heads each, cones exit 6" bicones, splicers knotters, electronic clearer yarns, waxing device, steamer, ribbon bobbins uncharge

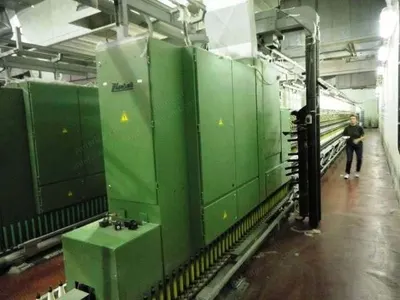

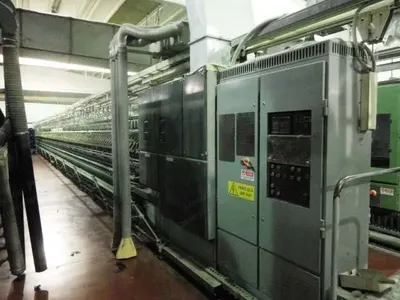

    7. N 3 - year 1992 to 1994 - Zinser ring spinning frames model 421/E, 640 spindles each, tubes l. 260mm, ring diameter 55mm, drafting SKF PK 1601, gauge 82.5mm, with electronic control inverter, Cowemat automatic doffing, Electrojet blowers
    8. N 3 - year 1992 to 1994 - Murata link coner Muratech, Autoconer winding machines model 7 V, 24 heads each, cones exit 6" bicones, splicers knotters, electronic clearer yarns, waxing device, steamer, ribbon bobbins uncharge
  5. Laboratory Department
    1. N 1 Keisoki evenness tester 80, type B
    2. N 1 top tester
    3. N 1 Wira fibre diagram machine, solid state
    4. N 1 Uster automatic dynamometer for tenacity tester of yarn
    5. N 1 Obem steamer model, year 1978, with 3 trolleys, total capacity kg.450/500, 380V, 50Hz, 3 ph, max temperature 98°C, supplied with minimum dotation, aluminum perforated trolleys
    6. Accessories and spare parts for machines, cans, tubes, trolleys, etc.
