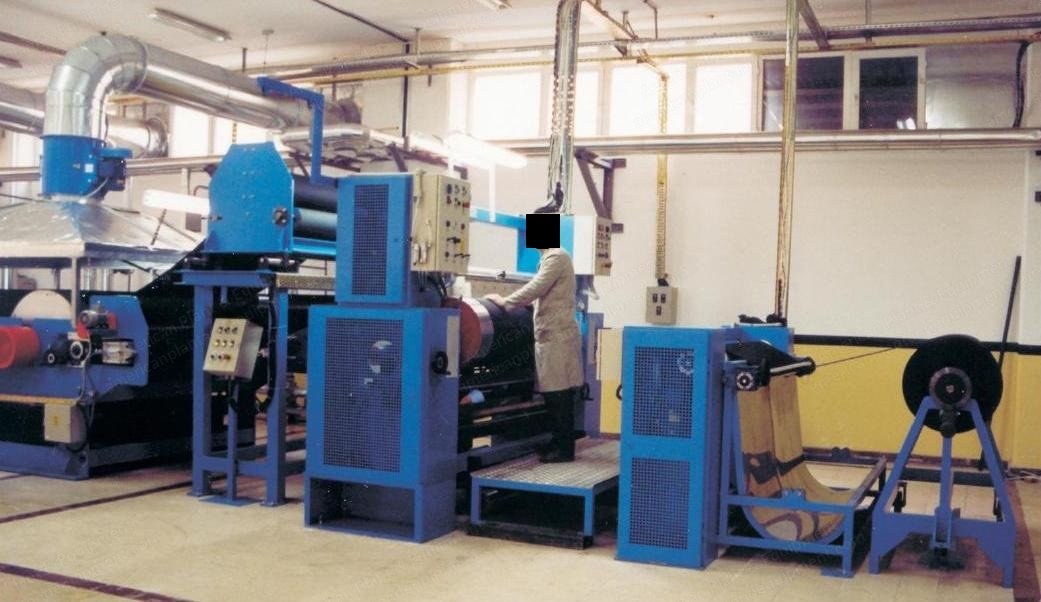

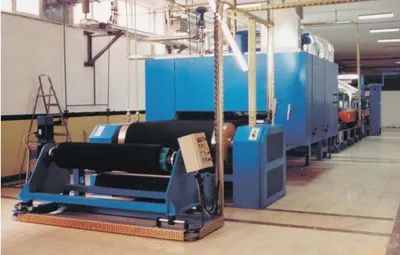

Aigle, AT2, 1999, Direct Coating and Laminating Line, 1850mm Working Width, 400V

Aigle, AT2, 1999, Direct Coating and Laminating Line, 1850mm Working Width, 400V

Description

  1. Overview
    1. Direct coating and laminating line
    2. Brand: Aigle
    3. Model: Laminating line mod. AT2
    4. Year: 1999 to 2001
    5. Working width: 1850 mm
  2. Specifications
    1. Power supply: 400 V / 50 Hz / three-phase
    2. Installed power: 5 kW
    3. Compressed air: 7 ± 1 kg/cm²
    4. Cylinders heating: diathermic oil
    5. Diathermic oil temperature: 280 °C
  3. Unwinding Group Mod. UT2/AS
    1. Unwinding trolley for large rolls mod. UT2
    2. Axial unwinder mod. AS with universal fast joint for unwinding trolley connection
  4. Coating Head Mod. BS2
    1. Designed and built so that different coating techniques can be employed (see relevant leaflet)

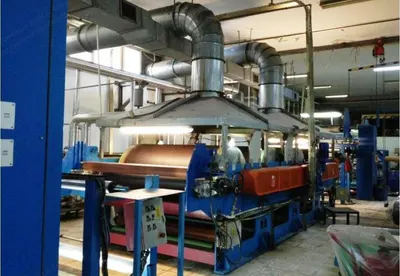

  5. Lamination Unit Mod. AT2
    1. Unwinding group to pull the material requiring lamination without tension
    2. Lamination unit consisting of:
      1. Two cylinders heated with diathermic oil (Ø 2000 mm)
      2. Stainless steel surface, covered in Teflon
      3. One lamination rubber cylinder (Ø 200 mm) opposite to the first cylinder
      4. Cylinder motion obtained through a pneumatic piston with adjustable pressure and equipped with motorized micrometric adjustment of lamination thickness
      5. Two release idle cylinders opposite to the two main cylinders
      6. Idle cylinders to pass material
    3. Unit driven by an A.C. motor with inverter and potentiometer for line synchronization
    4. Equipped with a pump for oil circulation and thermoregulation
  6. Rewinding Group Mod. UT2/AS
    1. Rewinding trolley for large rolls mod. UT2
    2. Axial rewinder mod. AS consisting of a lateral supporting structure with asynchronous induction motors
    3. A.C. motorization and control panels mod. QE
  7. Unit for Dry-Coat Process
    1. Moving unwinder mounted on wheels and running on rails; can be placed before the first heating cylinder and unwind material that requires lamination, or after the second heating cylinder and function as a “dry-coat” unit
    2. Calendering unit consisting of:
      1. Counter-cylinder covered in neoprene of adequate hardness
      2. Steel upper calendering cylinder
      3. Pressure between the two rollers controlled by two pneumatic pistons which can be accurately adjusted to obtain uniform pressure all along the width of the table
      4. With complete working case
