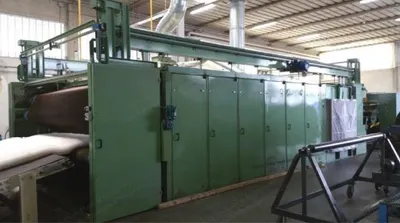

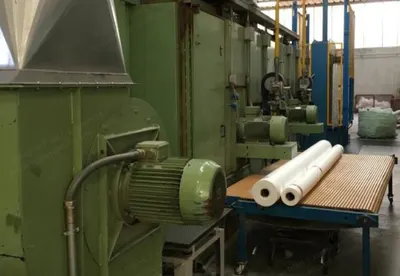

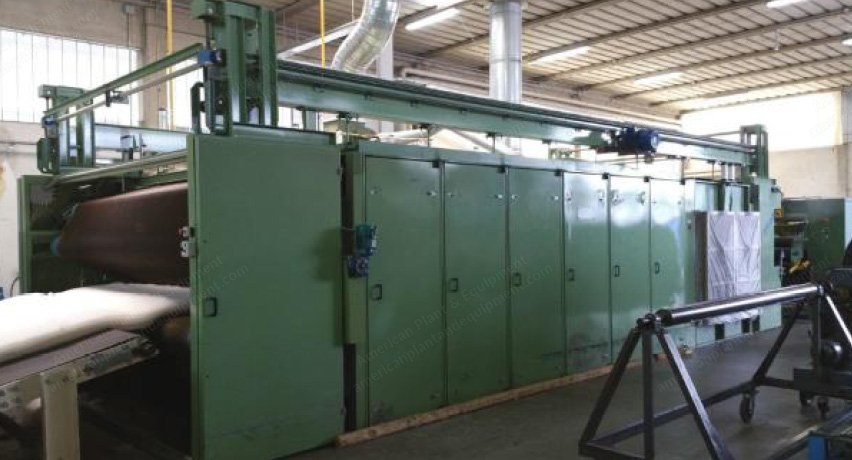

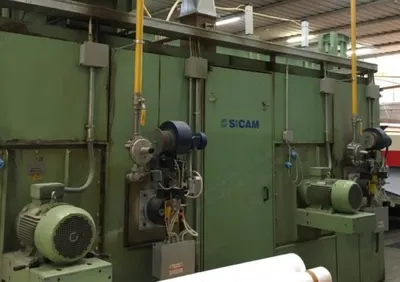

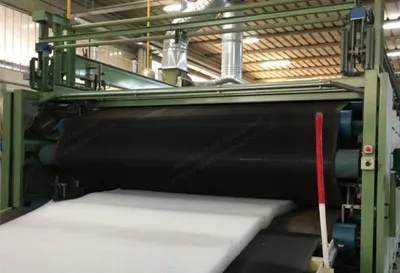

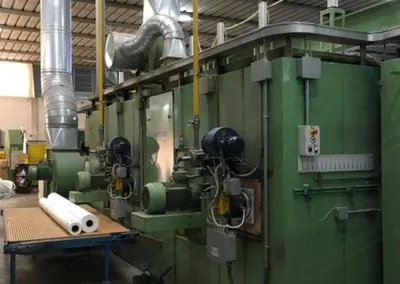

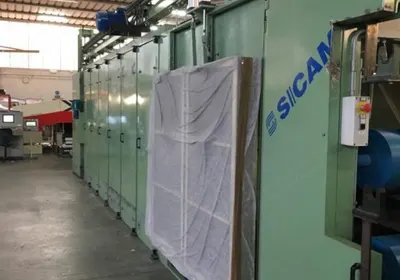

Description Overview Machine type: OTC Year: 2001 Type: Flat oven, single pass, with air trough technology Production: Machine is capable for thermos bonding of wadding in polyester fibers in blend with bicomponent polyester (low melt) Weight range: From 50 to 1000 gsm Specifications Belts width: 3500 mm Hot sections: 2 Length of each section: 2880 mm Additional section: Entry section + built in cooling + exit section Material transportation: 1 lower belt + 1 superior belt (lower belt is recently changed) Belts adjustable distance from control board: From 15 mm to 150 mm, with motors, screw jacks and display in control panel Mechanical speed: 12/15 m/min 2 systems for belts driving, by driven rolls 2 systems for belt tensioning, by pneumatic pistons 2 systems for belt guiding 2 air fans driven with frequency converters, adjustable to force the air throughout the web and through the burner. One fan each section Heating by 2 gas burners of 300.000 kcal/h Incorporated smokes extracting system Doors for inspection Insulation made with sandwich panels filled with pressed rockwool Final built-in cooling equipped with fan. Length: 2100 mm Double belt for final calibration Fan with frequency converter to adjust the flow, directly controlled from operator panel System to close the air on the side of the web to avoid loss of efficiency Control board with operator panel Condition Very good technical condition of the oven Machine in working condition, actually running Commercial condition Included Goods shipped: Customer Disassembly and loading into container or trucks: Customer Reassembly and start up: Customer Shipping time: After agreement
