Schonherr, CTM 640/1 Alpha 300, 1994 to 2007, Complete Carpet Production Line, 4000mm Width

Schonherr, CTM 640/1 Alpha 300, 1994 to 2007, Complete Carpet Production Line, 4000mm Width Sold

Description

  1. Overview
    1. Complete line for the production of carpets
    2. Status: available
  2. Item 001 - Carpet loom Schönherr
    1. Width: 4000 mm
    2. Quantity: 2

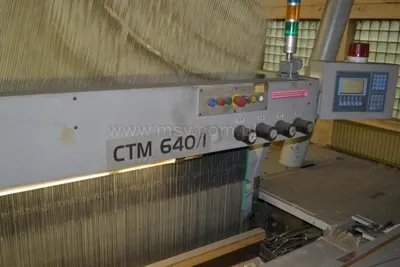

  3. Item 002 - Schönherr CTM 640/1
    1. Year: 1998
    2. Warp 4 shafts with a diameter of 1000 mm
    3. 3280 and 5248 ends of yarn
    4. 7880 tips fleece yarn on the frame
    5. Two devices Jacquard Staubli BFM / COF, two years of production - 11/2000
    6. Required space: width 16 m x height 9 m x length 40 m
    7. With a framework on two levels
  4. Item 003 - Schönherr Alpha 300
    1. Year: 1999
    2. 4 warp shafts having a diameter of 1250 mm
    3. 2688 and 5248 ends of yarn
    4. Fleece tips 7880 on the frame
    5. Required space: width 16 m x height 9 m x length 30 m
    6. With a framework on two levels
    7. Loom equipped with: electronic Jacquard looms Razor Staubli type LX 2490, 8064 format
    8. Bridge and frames pulling year 12/1999

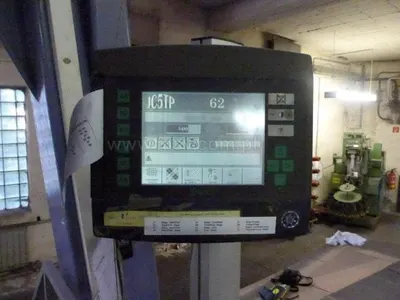

    9. Controller Jacquard JC5
  5. Item 004 - Titan strapping knots
    1. Type 6 KM-D
    2. With the track KS2 / KS2H
  6. Item 005 - Line for finishing carpets
    1. Width: 4500 mm
    2. Configuration: the device machining
    3. Kiss roll system
    4. Hair preliminary
    5. Evaporator
    6. Tumble dryer
    7. Along with three reels of diameter 1900 mm
    8. Steam heating system exhaust
    9. Two postrzygarki with the system exhaust system
    10. Longitudinal cutting Matthys
    11. 5 position, J-box for non-stop production system
    12. Hem and pipe-laying
    13. Sewing machines Dohle on the tracks driving
  7. Item 006 - Joining longitudinal engine with variable width
    1. Brand: Matthys
    2. Year: 2006
  8. Item 007 - Control, gluing, rolling system and packaging Matthys
    1. Year: 2007
  9. Item 008 - Latex kitchen mixing pumps
    1. Latex recycling system and a pump
  10. Item 009 - Steam boiler Loos
    1. UL type
    2. Steam capacity: 3200 kg/h
    3. 8 bar Weishaupt burner type GL 01/09 -0
    4. TMD oil or gas
    5. Year: 1994
    6. Water softener
    7. Steel condensate tank
    8. Chimney
  11. Item 010 - Air compressors
    1. Atlas Copco brand
    2. Type GA 15 of air dryer FX7
  12. Item 011 - Rewinder
    1. Brand Dietze & Schell
    2. 6 position
  13. Item 012 - Machine Ti cops
    1. Brand Evilo
    2. 16 items
  14. Item 013 - Power generator
    1. Gas oil
    2. Capacity: 38 kVA
    3. 380 V, 50 Hz
  15. Item 014 - Small quantity of finished carpets and polypropylene yarns
    1. Finished carpets
    2. Polypropylene yarns
