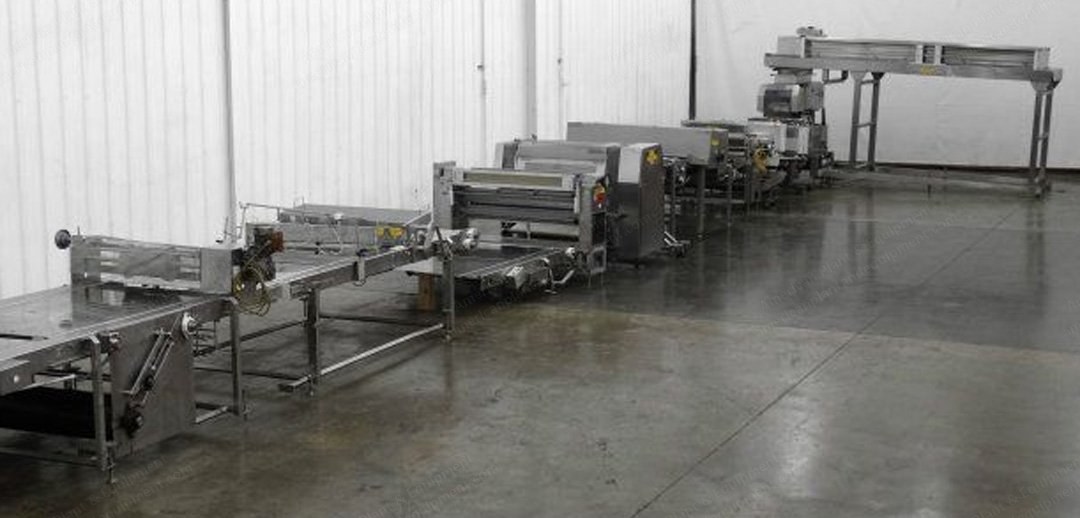

Rheon, V4, 1998, Dough Sheeting Line, Stress Free Roller, 43 inch Conveyor Width

Rheon, V4, 1998, Dough Sheeting Line, Stress Free Roller, 43 inch Conveyor Width

Description

  1. Overview
    1. Rheon V4 dough sheeting line stress free roller
    2. Brand: Rheon
    3. Model: V4
    4. Year: 1998
    5. Used Rheon dough sheeting line with labor free dough supply production for various type of product
    6. Stress free dough sheet can be constantly fed even extremely delicate dough
    7. Transform your existing manual dough feeding line into completely automated labor free production
    8. Since no mechanical pressure is applied, dough remains undamaged
  2. Specifications
    1. Voltage: 220 V
    2. Phase: 3 ph
    3. Hertz: 60 Hz
    4. Amperage: 24 A
    5. Allen Bradley 600 panel view interface
    6. Stainless steel easy wash down components

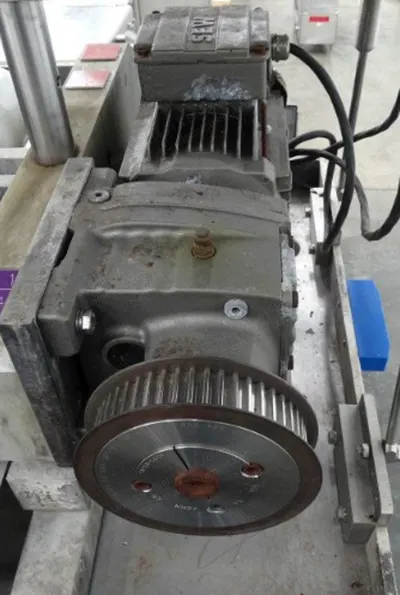

    7. Sew 1.5 horsepower motor
  3. Elevated Infeed Mod Dough Conveyor
    1. Food grade conveyor 43 inches width x 164 inches length x 14 inches deep
    2. Conveyor elevation 102 inches from ground
    3. Conveyor outfeed opening 38 inches length x 15 inches wide
    4. Stainless steel
    5. Out feed opening 38.5 inches length x 15 inches width
    6. Conveyor 102 inches elevation
  4. V Feeder - Dough Chunker
    1. None stick rollers
    2. Flour duster for none stick conveyor
  5. Flour Dusters
    1. Four flour dusters
    2. Stainless rollers
    3. Product opening 37.5 inches length x 6 inches width x 4 inches deep
  6. Cross Rollers
    1. Two cross rollers, 9 inches width roller
    2. 9 inches wide roller for dough thinnest
    3. Rademaker cross rollers
  7. Two Roll Sheeter
    1. Two stainless steel rollers 57 inches length x 7 inches diameter
    2. Adjustable for product thickness
  8. Dough Cutter
    1. Single head 16 inches diameter dough cutter
  9. Dough Scrap Return Conveyor
    1. Belt conveyor 9.5 inches width x 77 inches length
    2. Sew.5 horsepower electric conveyor motor
    3. 35.5 inches return roller x 6 inches diameter
    4. Saves cost of product
    5. Belt conveyor 77 inches length x 9.5 inches width
    6. Sew.5 horsepower electric motor
    7. Roller 52 inches length x 6 inches diameter
    8. Saves money and cost of product

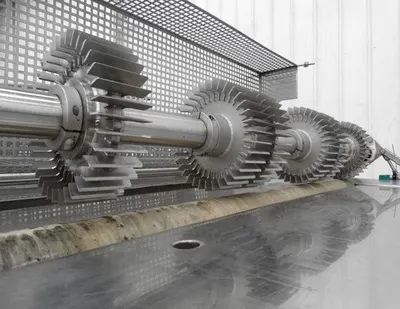

  10. Multi Roller Assembly
    1. Multi roller assembly stress free roller
  11. Dough Docker
    1. Six stainless steel dockers with.75 inches spacing
    2. Adjustable docker spacing for product needs
    3. Three pneumatic product sprayers
    4. Pneumatic cylinder control dockers adjustment for dough thickness
    5. Allen Bradley limit switch
  12. Stainless Steel Conveyor
    1. Conveyor is approximate 45 inches wide x 783 inches length
    2. Seven sections
    3. 42 inches product roller
