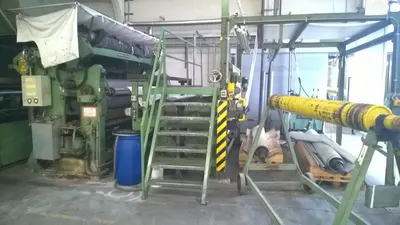

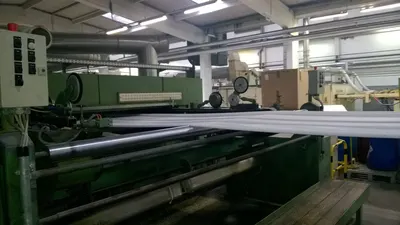

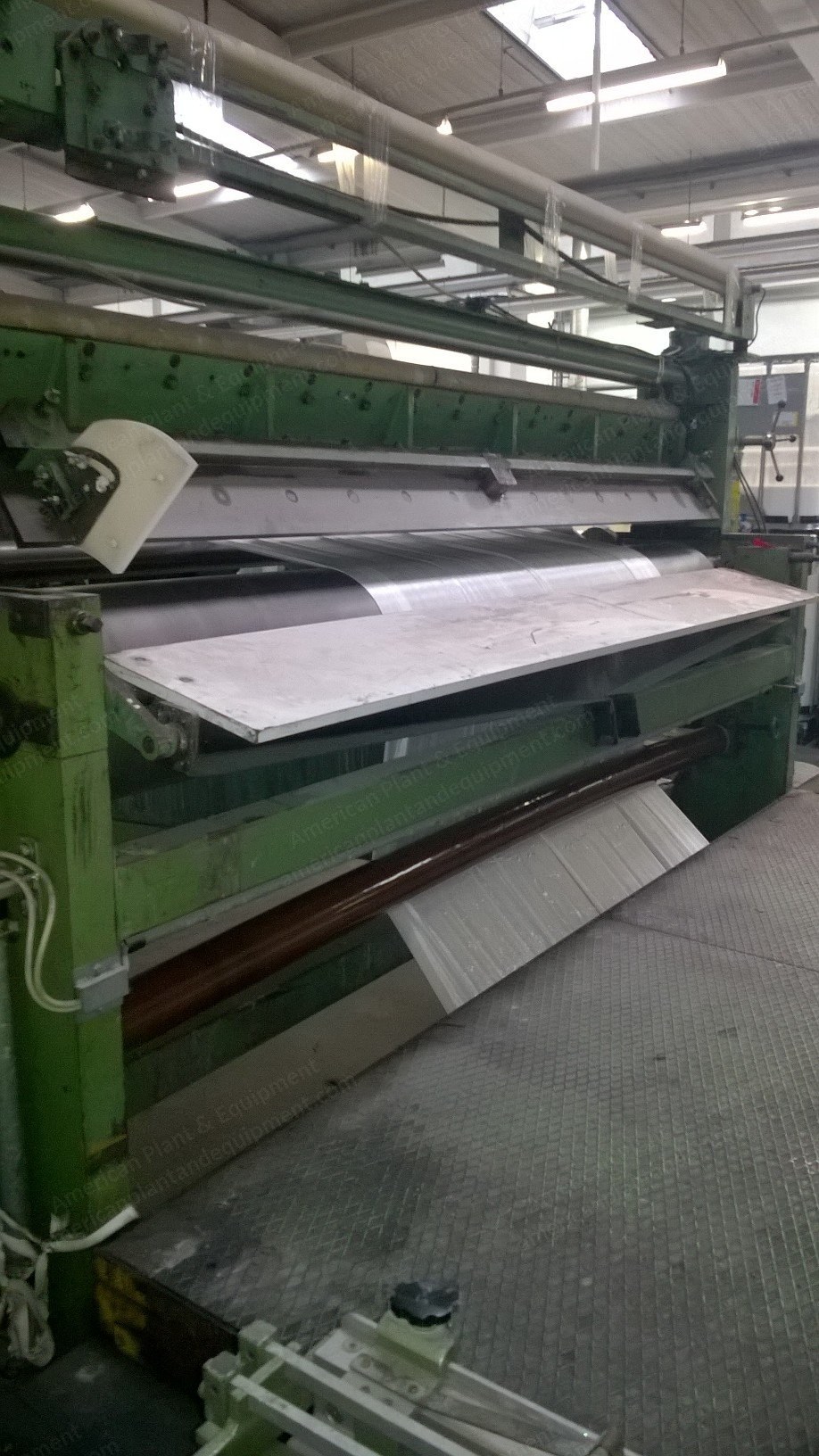

Bruckner Coating Line, 1973, 2800mm Working Width, 7 Fields, Steam Heated

Bruckner Coating Line, 1973, 2800mm Working Width, 7 Fields, Steam Heated Sold

Description

  1. Overview
    1. For doctor coating process
    2. 1 coating head (PVC-tarpaulin/tilt cloth)
    3. Machine type: direct coating machine
  2. Specifications
    1. Working width: 2800 mm
    2. Fabric width: 2750 mm
    3. Speed: 4 to 40 m/min
    4. Channel: 7 fields of 3 m length with 5 temperature controls
    5. Installed heating capacity: approx. 1,000,000 kcal/h
    6. Suction capacity: max. 12,000 m³/h
    7. Cloth transport with vertical chain
    8. Heating: saturated steam 25 bar
    9. Drive side: left in direction of goods movement
    10. Operating side: right in direction of goods movement
    11. Power connections: left on the drive side
  3. Condition and Updates
    1. The clip chain in the gelation channel was renewed in 1998
    2. The drive and temperature control system was renewed in 2002 (three-phase 400 V)
  4. Inspection
    1. Visiting is possible
