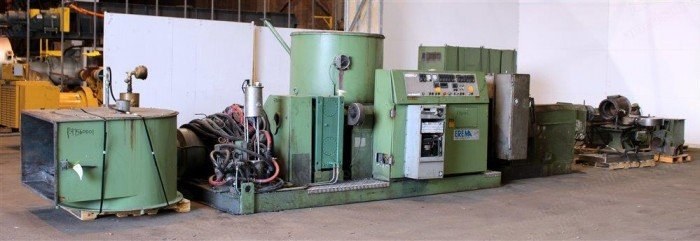

Erema RM120TVE Film/Fiber Pelletizing Line, new in 2000
Model: RM120TVE
5.0″ 36/1
120mm
Line Components

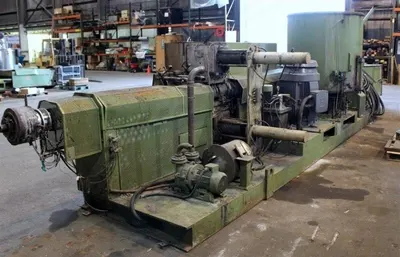

Erema Model RM120TVE
120mm extruder with 36/1 L/D double vented barrel
Extruder driven by a 160kW AC motor with inverter
Double vent includes a stainless steel Deker vacuum pump

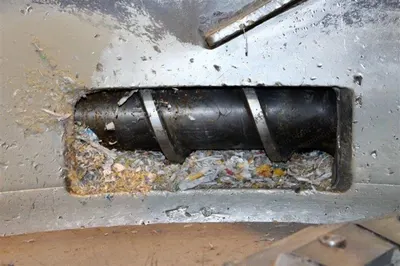

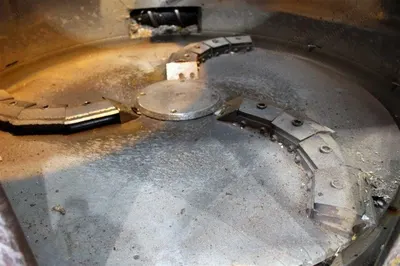

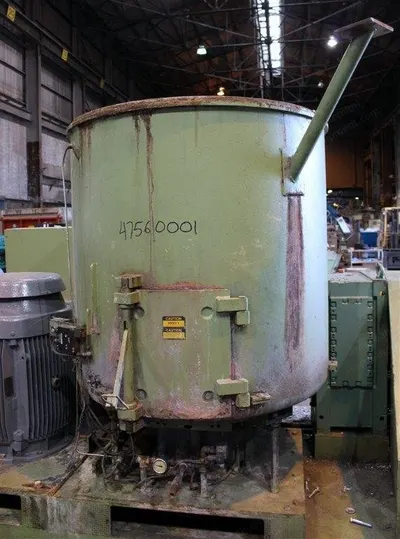

Approximately 50 cubic foot stainless steel cutter/compactor mounted at feed section
Fed by a 35″ wide x 20′ long inclined belt conveyor

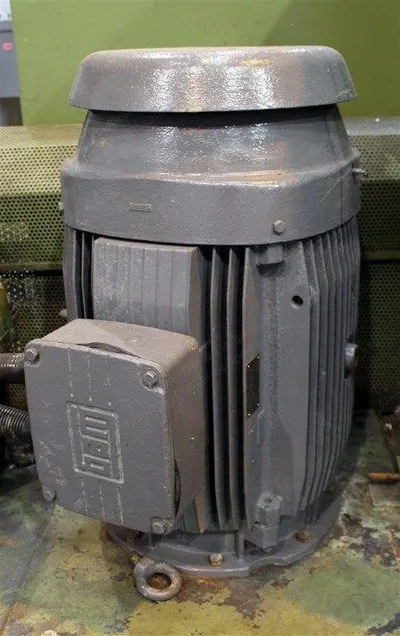

Cutter compactor driven by a 105 kW, 480 Volt AC motor
Includes temperature control panel with Erema Series 988 instruments (17 total zones), melt pressure indicator, amp meter for extruder and cutter compactor
Barrel is electrically heated and water cooled and includes water pump and heat exchanger (common system with water pellet cooling slushway)

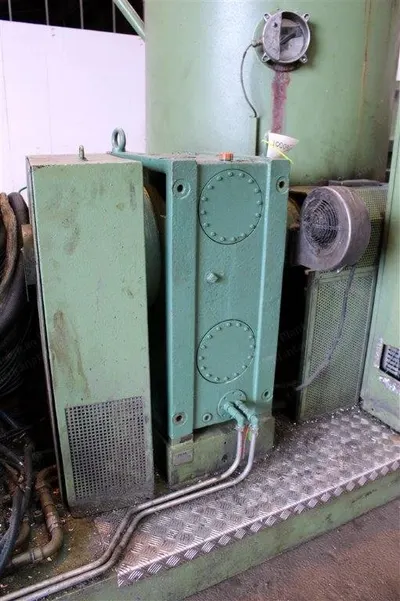

Extruder gearbox was replaced in July 2015, new screw in 2013, new cutter compactor motor in 2013 and new belt for cutter compactor was installed in 2013

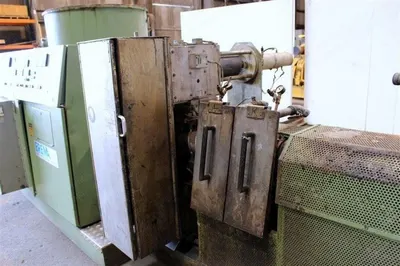

Extruder equipped with dual bolt screen changer with hydraulic pumping system

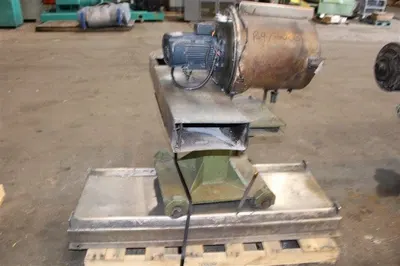

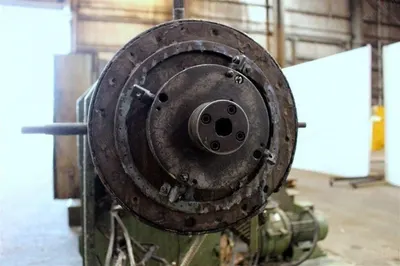

Approximately 40 hole single row die plate with 4-knife cutter head, and includes water ring pelletizer

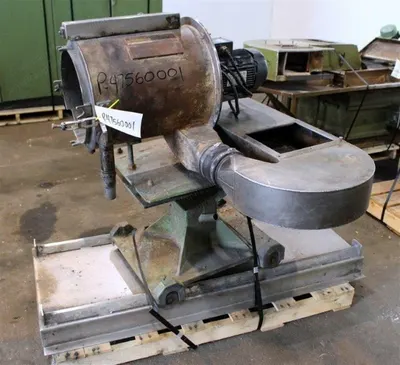

Stainless steel slushway with vibrating screen/classifier and centrifugal dryer
Condition and Performance
Line previously run on polypropylene at approximately 1000 lbs per hour
