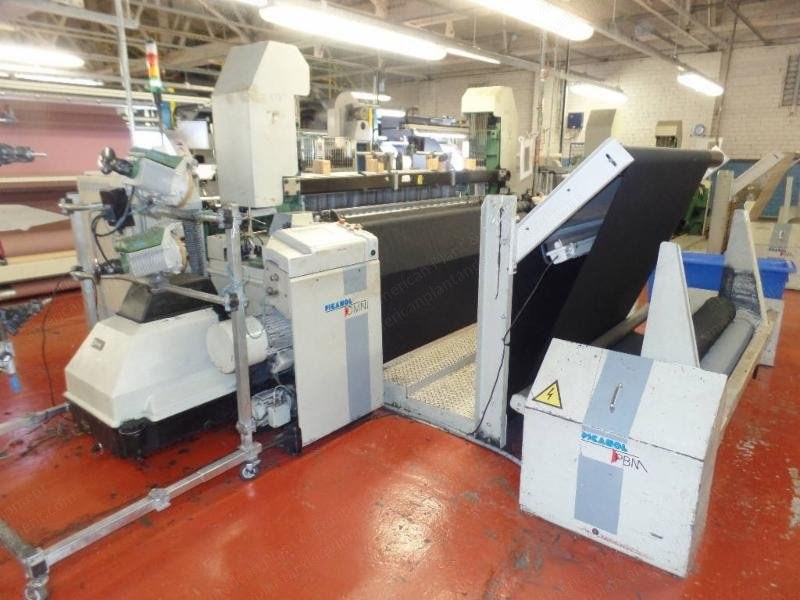

Picanol, Omni-F-4-R, 1994 to 1997, 1900mm Width, 4 Colors, Staubli 2580RS Dobby

Picanol, Omni-F-4-R, 1994 to 1997, 1900mm Width, 4 Colors, Staubli 2580RS Dobby

Description

  1. Overview
    1. Brand: Picanol
    2. Model: Omni-F-4-R
    3. Type of weft insertion: Airjet
    4. Weft colors: 4
    5. Electronic selectors (esc): 2 to 4
    6. Accumulators: 2 to 4
    7. Cone stand: Yes
    8. Spares: Yes
  2. Specifications
    1. Width: 1900 mm
    2. Dobby make and model: Staubli 2580RS
    3. Installed levers and shafts: 14 (14 possible)
    4. Frames supplied: 14 (approx)
    5. Loom take-up: Electrical
    6. Loom let-off: Electrical
    7. Dropper bars: 4 to 6
    8. Beam installation: Single warp beam
    9. Warp beams: 1.5
    10. Flange diameter: 800 mm
    11. Cloth rollers: 2
    12. Heald wires per frame: To be confirmed
    13. Droppers supplied: To be confirmed
  3. Year
    1. 4 x year: 1994
    2. 6 x year: 1997
  4. Condition
    1. Status: Still operating
    2. Condition: Good
  5. Machine Dimensions
    1. Width: 1.8 metres
    2. Length: 4.7 metres
    3. Height: 1.5 metres
