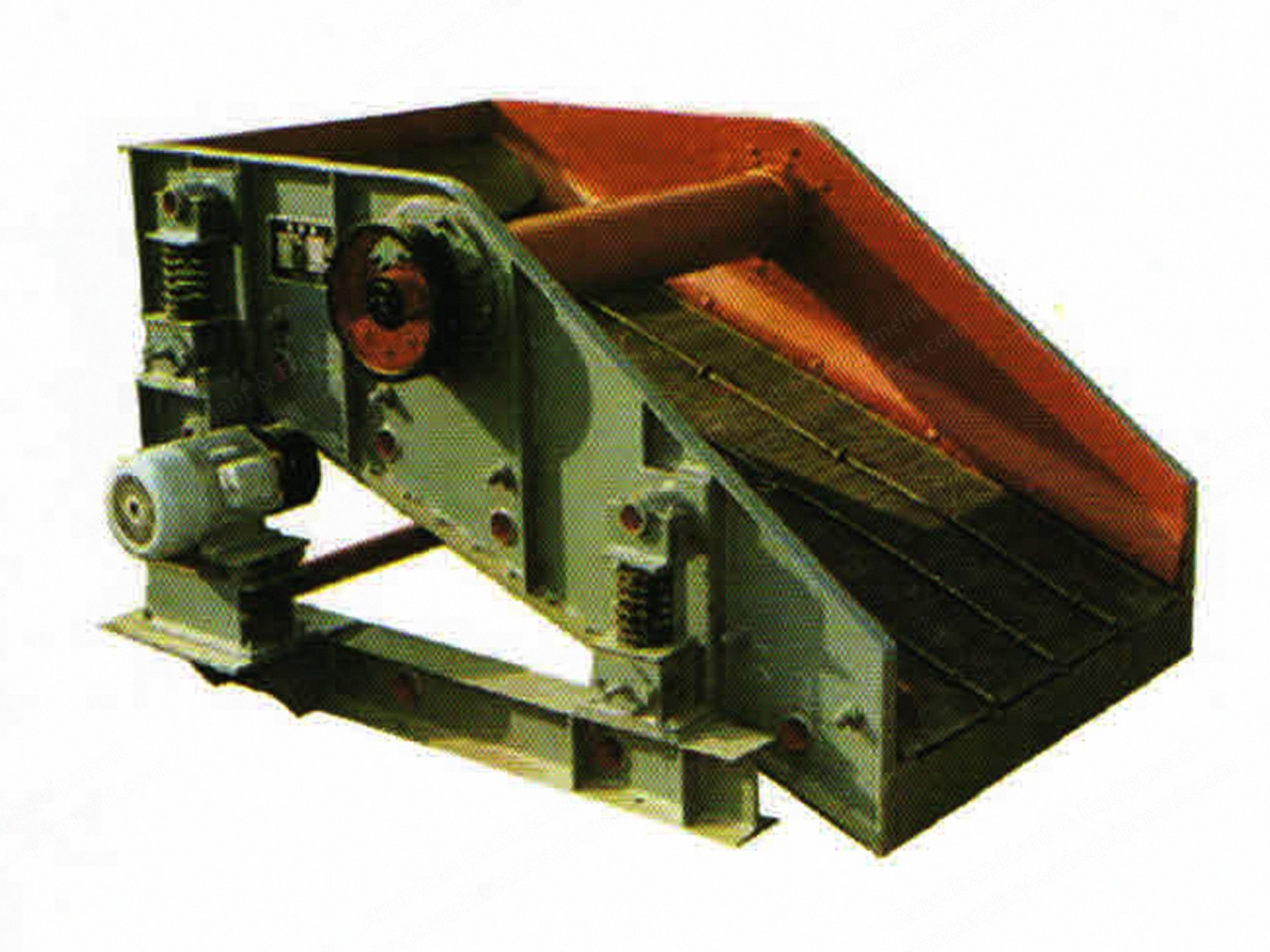

NovaStar, CO105, Single Shaft Vibrating Screen, 1.6 to 12 m2 Screening Area, 10 to 540 t/h Capacity (New)

NovaStar, CO105, Single Shaft Vibrating Screen, 1.6 to 12 m2 Screening Area, 10 to 540 t/h Capacity

Description

  1. Overview
    1. Circular moment track, single-shaft vibrating screen suitable for dry classification of medium grain materials.
    2. Advantages include simple installation, convenient maintenance, reliable operation, high screening efficiency, and good screening ability.
  2. Specifications
    1. Model D918: screening area 1.6 m², 1 layer, max feed particle size 60 mm, processing power 10-30 t/h, mesh size 1-25 mm, double amplitude 6 mm, vibration time 1000 times/min, motor model Y100L1-4, motor power 2.2 kW, weight 553 kg.
    2. Model D₂918: screening area 1.6 m², 2 layers, max feed particle size 60 mm, processing power 10-30 t/h, mesh size 1-25 mm, double amplitude 6 mm, vibration time 1000 times/min, motor model Y100L1-4, motor power 2.2 kW, weight 702 kg.
    3. Model D1224: screening area 2.9 m², 1 layer, max feed particle size 100 mm, processing power 70-210 t/h, mesh size 6-40 mm, double amplitude 0-7 mm, vibration time 1000 times/min, motor model Y112M-4, motor power 4 kW, weight 1130 kg.
    4. Model D₂1224: screening area 2.9 m², 2 layers, max feed particle size 100 mm, processing power 70-210 t/h, mesh size 6-40 mm, double amplitude 0-7 mm, vibration time 850 times/min, motor model Y112M-4, motor power 4 kW, weight 1545 kg.
    5. Model D1530: screening area 4.5 m², 1 layer, max feed particle size 100 mm, processing power 90-270 t/h, mesh size 6-50 mm, double amplitude 6-7 mm, vibration time 850 times/min, motor model Y132S-4, motor power 5.5 kW, weight 1650 kg.
    6. Model D₂1530: screening area 4.5 m², 2 layers, max feed particle size 100 mm, processing power 90-270 t/h, mesh size 6-50 mm, double amplitude 6-7 mm, vibration time 850 times/min, motor model Y132S-4, motor power 5.5 kW, weight 2260 kg.
    7. Model D1540: screening area 6 m², 1 layer, max feed particle size 100 mm, processing power 90-270 t/h, mesh size 6-50 mm, double amplitude 7 mm, vibration time 850 times/min, motor model Y132M-4, motor power 7.5 kW, weight 2070 kg.
    8. Model D₂1540: screening area 6 m², 2 layers, max feed particle size 100 mm, processing power 90-270 t/h, mesh size 6-50 mm, double amplitude 7 mm, vibration time 850 times/min, motor model Y132M-4, motor power 7.5 kW, weight 2850 kg.
    9. Model D1836: screening area 6.5 m², 1 layer, max feed particle size 150 mm, processing power 100-300 t/h, mesh size 6-50 mm, double amplitude 7 mm, vibration time 850 times/min, motor model Y160M-4, motor power 11 kW, weight 1960 kg.
    10. Model D₂1836: screening area 6.5 m², 2 layers, max feed particle size 150 mm, processing power 100-300 t/h, mesh size 6-50 mm, double amplitude 7 mm, vibration time 850 times/min, motor model Y160M-4, motor power 11 kW, weight 2840 kg.
    11. Model D2160: screening area 12 m², 1 layer, max feed particle size 150 mm, processing power 240-540 t/h, mesh size 10-50 mm, double amplitude 8 mm, vibration time 900 times/min, motor model Y180L-4, motor power 22 kW, weight 6529 kg.
  3. Ordering Remarks
    1. When ordering, please indicate the type, quantity, as well as the mesh size and screen mesh form.
    2. Since the motor can be installed on either the left or the right, if you have a special requirement about installation, please specify; otherwise, we will deliver the goods as per our installation drawing.
    3. Non-standard feeders shall be designed and made according to the user's requirements.
