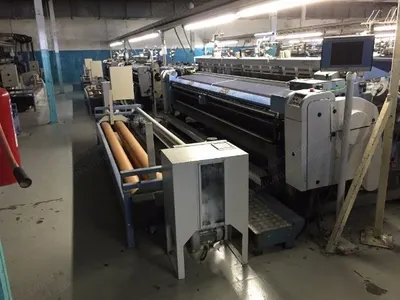

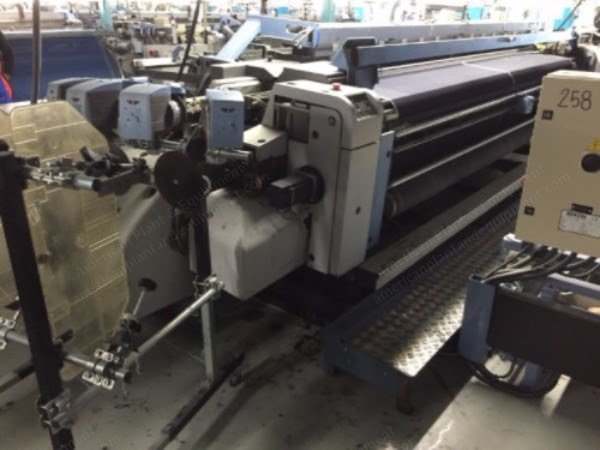

Sulzer, P7300 HP B 360 N4 SP D 12 R, 2004, 3600mm Width, 4 Colors, Staubli 2665 Electronic Dobby

Sulzer, P7300 HP B 360 N4 SP D 12 R, 2004, 3600mm Width, 4 Colors, Staubli 2665 Electronic Dobby

Description

  1. Overview
    1. Manufacturer: Sulzer
    2. Machine type: Projectile weaving machine
    3. Model: P7300 HP B 360 N4 SP D 12 R
    4. Year: 2004 (renewed by Sulzer in 2009)
    5. Reinforced execution
  2. Specifications
    1. Width: 3600 mm
    2. 4 colors installed
    3. 4 electronic programmable filling brakes
    4. Split beam execution
    5. Staubli model 2665 electronic dobby
    6. 18 shafts installed
    7. Steel projectile D12
    8. Voltage: 380 volts / 50 Hz / 3 phase
    9. Equipped with floating take up
    10. Touch up screen and main control box
    11. Machine updated by Sulzer to V8 in 2008 where possible (does not include main drive update)
    12. 8 harness frames
    13. Approximately 10,000 heddles as fitted
    14. 3 split beams (1 ½ full beam equivalent)
    15. 1100 mm beam flange diameter

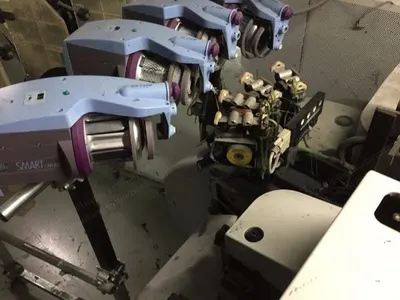

    16. 3 LGL model smart canbus filling feeders with stand and corresponding filling creel
    17. 16 bar warp stop motion
    18. Approximately 10,000 closed droppers as fitted
    19. Let off and take up equipped for course range as per density table range: course
  3. Included
    1. 1 Ferber off loom batcher with walking platform included
  4. Quantity
    1. 18 units available
