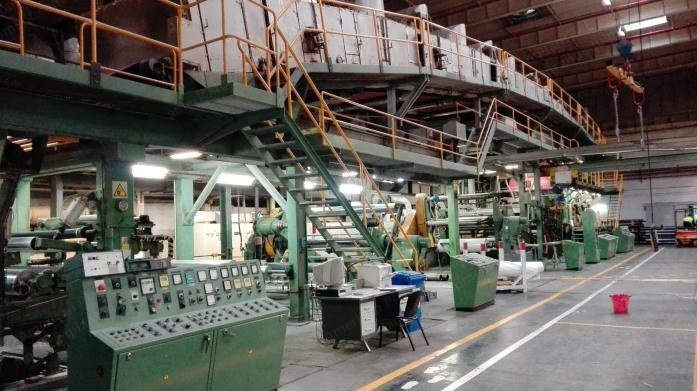

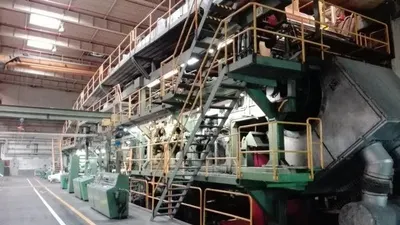

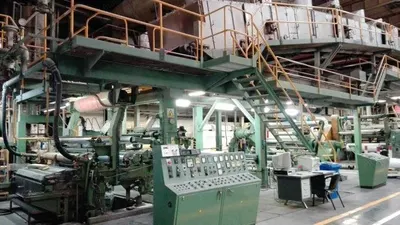

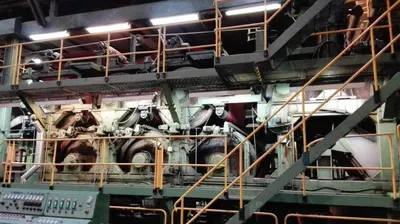

Description Overview Speed: 650 m/min Working width: 1850 mm Rewinding reel diameter: 1400 mm Installed to manufacture papers from 50 to 90 gr/m² 1 side application Unwinding Stand Revolver type Unwinding reel diameter: 1400 mm Max. width: 1850 mm Coating Station Coating application by rolls Face length: 1950 mm Max. working width: 1850 mm 1 side application from 2 to 4 gr/m² Drying System Hot air tunnel Drying section: 8 dryers Brand: Black Clawson Face length: 2240 mm Total length: 2305 mm Pope neck: 65 mm Diameter: 1500 mm Working pressure: 5.5 bar Drive by gears plus one motor Soft Nip Calender 3 rolls – 2 contacts Top roll: diameter 310 mm, face 1955 mm, heated – soft roll Crown roll: diameter 340 mm, face 2010 mm Bottom roll: diameter 310 mm, face 1955 mm, heated – soft roll Additional Equipment Scanner
