Trutzschler, Zinser, Schlafhorst, Ring and Open End Spinning Plants, 7200 Spindles, 1900 Rotors

Trutzschler, Zinser, Schlafhorst, Ring and Open End Spinning Plants, 7200 Spindles, 1900 Rotors

Description

  1. Opener Plant Cotton Line
    1. Consists of the following units of equipment.

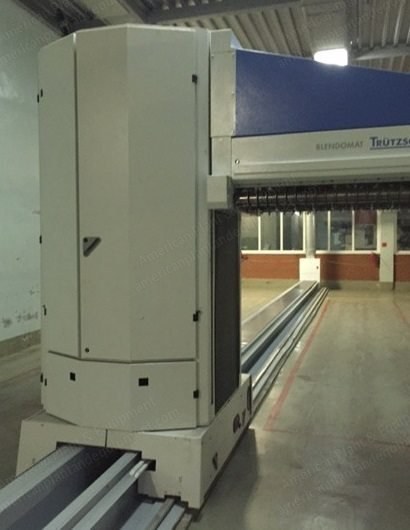

  2. Item 001: Automatic Bale Opener
    1. Manufacturer: Trutzschler, Germany.
    2. Model: Blendomat BO-A 1720.
    3. Width of treatment max 1720 mm, up to 3 groups of bale of each side.
    4. Feeding up to free lines.
    5. Total length 18185 mm.
    6. Micro computer control.
    7. Installed power: 12.5 kW.
    8. Year: 2007.
  3. Item 002: Feed Unit of the Opener Plant P-1
    1. Manufacturer: Kalinin Furfactory, Russia.
    2. Working width 1060 mm max.
    3. Maximum output: 320 kg/h.
    4. Length of converted fiber: 25-65 mm.
    5. Degree of opening (weight of one patch): 0.3-1.0 gr.
    6. Installed power: 1.5 kW.
    7. Year: 1984.
  4. Item 003: Integrated Separator of Heavy Particles (Electronic Metal Separator) SP-EM
    1. Manufacturer: Trutzschler, Germany.
    2. With integrated spark signaling.
    3. Fire sensor and cylinder CO2.
    4. Micro computer control system.
    5. Maximum output: 1800 kg/h.
    6. Year: 2007.
  5. Item 004: Firefighting Device LC-F1
    1. Firefighting device for the entire system of the opener line with fire signaling.
    2. Early warning system of fire FMZ 4100 GAB-6.
    3. Year: 2006.
  6. Item 005: Support of the Condenser BR-CO Staend
    1. Manufacturer: Trutzschler, Germany.
    2. Steady for mounting the condenser BR-CO.
    3. Condenser BR-COI.
    4. Material separator with a built-in fan.
    5. Separate drive for the filter drum and fan.
    6. Frame width on light: 1000 mm.
    7. Installed power: 8.6 kW.
    8. Year: 2006 to 2007.
    9. Quantity: 5.
  7. Item 006: Precleaner CL-P
    1. Manufacturer: Trutzschler, Germany.
    2. Double shaft cleaner to clean cotton.
    3. Computer control system.
    4. Installed power: 7.87 kW.
    5. Year: 2006.
  8. Item 007: Integrated Blending Machine MX-16
    1. Manufacturer: Trutzschler, Germany.
    2. Blend with mixer 6 bunkers for controlled mixing.
    3. Micro computer control system.
    4. Installed power: 5.3 kW.

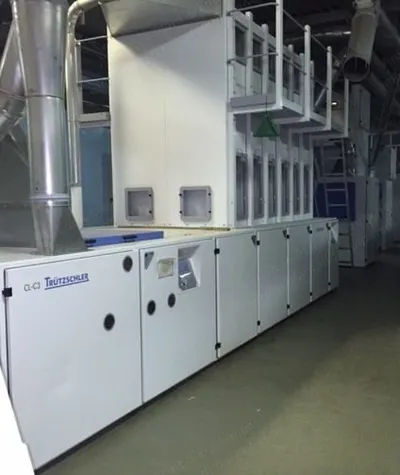

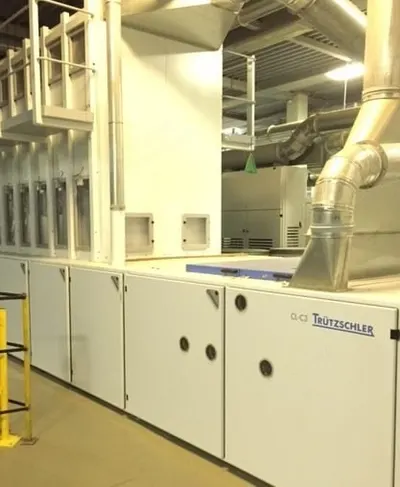

    5. Cleaner Gleanomat CL-C3 with 3 cleaning shafts.
    6. Micro computer control system.
    7. Installed power: 13.61 kW.
    8. Year: 2006.
    9. Has new set of three cleaning shafts.
    10. Quantity: 2.
  9. Item 008: Separator of Foreign Particles Securomat SP-E
    1. Manufacturer: Trutzschler, Germany.
    2. Machine for the selective separation of foreign particles and fibers, fitted units of loosening with integrated system of dedusting.
    3. 2 digital cameras.
    4. 32 injectors to separate foreign particles.
    5. Micro computer control system.
    6. Installed power: 6.5 kW.
    7. Condenser BR-MS1600.
    8. Width on light: 1600 mm.
    9. Installed power: 6.6 kW.
    10. Year: 2007.
    11. Quantity: 2.
  10. Item 009: Fan BR-FD 425
    1. Manufacturer: Trutzschler, Germany.
    2. Fan for material transportation.
    3. Diameter of the blade: 425 mm.
    4. The fan speed is controlled by the motor controlled by frequency.
    5. Installed power: 3 kW.
    6. Year: 2006 to 2007.
  11. Item 010: Magnetic Catcher BR-MT
    1. Manufacturer: Trutzschler, Germany.
    2. Integrated in the pipe line.
    3. For collecting metal objects passing through the pipeline.
    4. Year: 2006.
  12. Item 011: Switching Manual Damper BR-MC
    1. Manufacturer: Trutzschler, Germany.
    2. For changing the direction of flow of the material inserted into the pipeline.
    3. Switching manual damper BR-MC 180.
    4. Switching manual damper BR-FD 425.
    5. Year: 2006.
    6. Quantity: 4.
  13. Item 012: Fire Damper BR-FP (FSK)
    1. Manufacturer: Trutzschler, Germany.
    2. Safety device integrated into pipeline which automatically closes in the event of fire.
    3. Year: 2006 to 2007.
    4. Quantity: 2.
  14. Item 013: Waste Collector BR-WC
    1. Movable container for waste collection.
    2. Year: 2006.
  15. Item 014: Electronic Control Installation LC-M
    1. Manufacturer: Trutzschler, Germany.
    2. Electronic control system of installation includes switchgear for all connected machines.
    3. Excluding carding machines and tape.
    4. Year: 2006.
  16. Item 015: T-Shaped Separator BR-TD
    1. Manufacturer: Trutzschler, Germany.
    2. Built-in pipeline for separating the locks of fibers into 2 groups carding machine.
    3. Year: 2007.
  17. Carding Line (For Cotton)

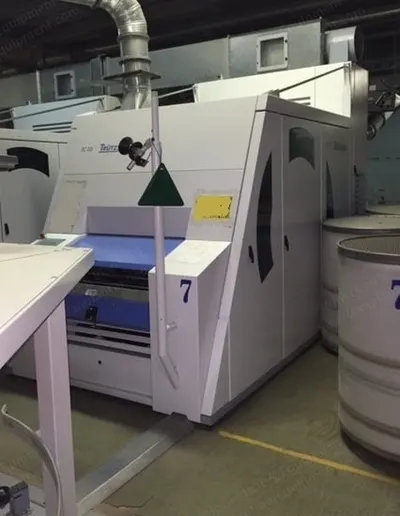

    1. Item 016: High-Carding Machine TC-03.
    2. Manufacturer: Trutzschler, Germany.
    3. Has integral bunker feeder direct feed.
    4. Detection of the thickening and the presence of metal in the stream.
    5. Node of pre-opening web feed with three opener shafts.
    6. Multifunctional package of technology of intensive cleaning multiwebclean.
    7. Micro computer control system with color touch screen.
    8. Extensive quality control (linear density of the tape, unevenness of the tape, spectrogram, thickenings).
    9. Output: 150 kg/h.
    10. Installed power: 9.5 kW.

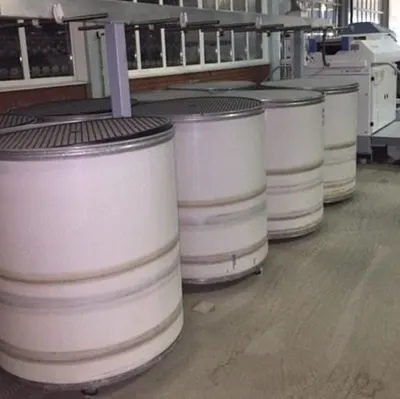

    11. Device for can changer TC-CC 1000 for installation underfloor, for the can with the diameter 1000 mm.
    12. Year: 2006 to 2007.
    13. After replacing the last sets passed: 933 T, 947 T, 1456 T, 296 T, 302 T, 290 T, 291 T.
    14. Quantity: 14.
  18. Item 017: Support for Grinding System TC-SF
    1. Manufacturer: Graf, Germany.
    2. Pair of adapters for shaft removal during the grinding of flat TC-03.
    3. Year: 2006 to 2007.
    4. Quantity: 4.
  19. Item 018: Tapes Grinding Machine TSG
    1. Manufacturer: Graf, Germany.
    2. For set grinding of the main drum of carding machine TC-03.
    3. Year: 2005.
  20. Item 019: Tapes Grinding Machine PSG
    1. Manufacturer: Graf, Germany.
    2. Transportable tapes grinding roller for grinding of flat of carding machine TC-03.
    3. Year: 2005.
  21. Item 020: Device TC-ME for Main and Removable Cylinder Covering of Carding Machines TC-03
    1. Manufacturer: Graf, Germany.
    2. Year: 2006.

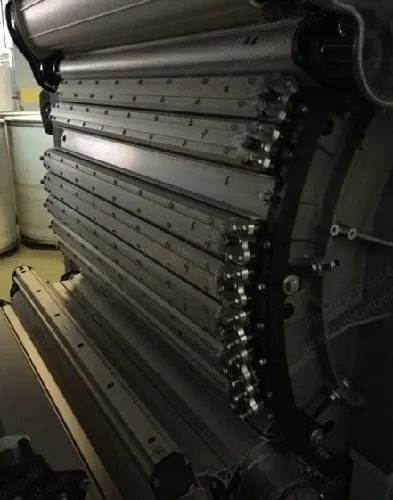

  22. Item 021: Machine for Removing Flats
    1. Manufacturer: Trutzschler, Germany.
    2. For removing of flat tops with castor aluminum rod.
    3. Power consumption: 0.75 kW.
    4. Output: 15 m/min.
    5. Year: 2007.
  23. Item 022: Pneumatic Machine for Mounting Accessories on Flat RFM-40
    1. Manufacturer: Trutzschler, Germany.
    2. For mounting of movable flats on cast or aluminum rod.
    3. Length: 2150 mm.
    4. Width: 750 mm.
    5. Height: 1750 mm.
    6. Weight: 500 kg.
    7. Power: 0.75 kW.
    8. Output: 0.5 m/sec.
    9. Year: 2007.
  24. Cotton Drawing Frame

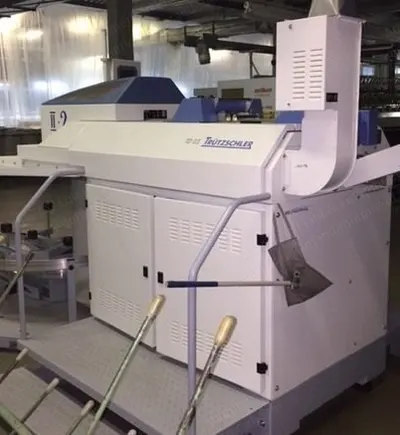

    1. Item 023: Cotton Drawing Frames with High Performance TD-03.
    2. Manufacturer: Trutzschler, Germany.
    3. Highly dynamic servo drives.
    4. Separate drives for adjusting of speed, release and extraction.

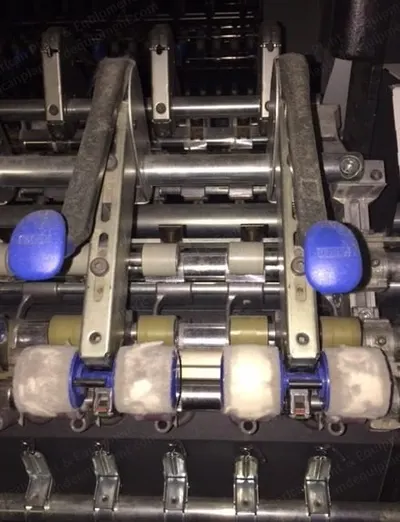

    5. Drafting system "four to free" with adjustable pressure.
    6. Pneumatic regulator load on each of the upper shafts.
    7. Computer control with touch display.
    8. Centralized exhaust of air.
    9. Also the system TD-AL for adjustment in servodraft with automatic device for quality control of the tape sliver focus (linear density of tape, unevenness, thickening, spectrograms).
    10. Self-optimization system.
    11. Device for the can
