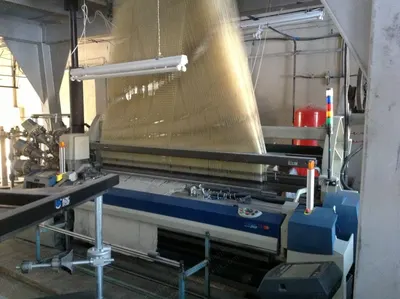

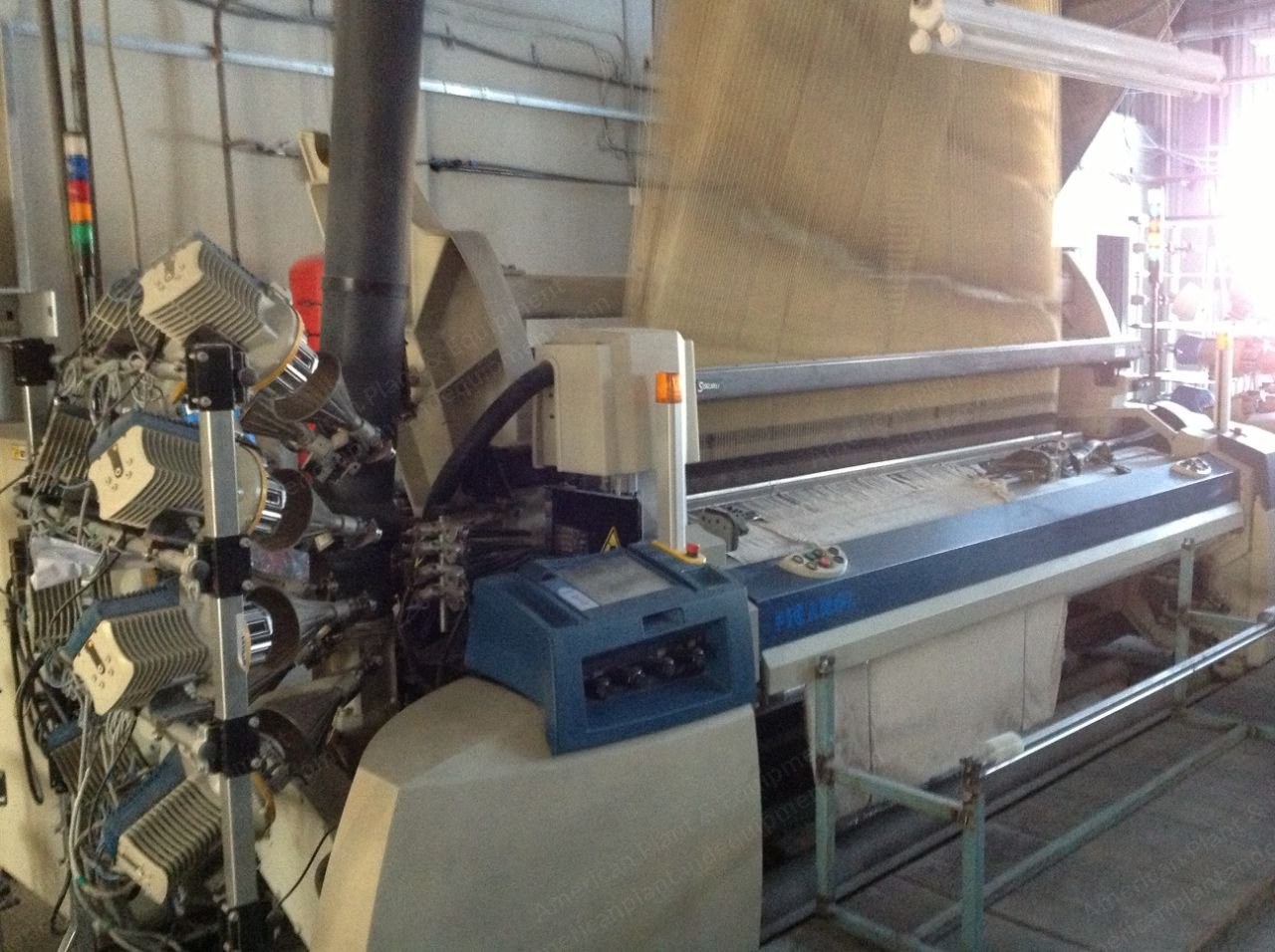

Picanol, Terry Plus 800-8-J, 2010, 2600mm Width, Jacquard, 8 Colors

Picanol, Terry Plus 800-8-J, 2010, 2600mm Width, Jacquard, 8 Colors

Description

  1. Overview
    1. Picanol Terry Plus 800-8-J loom
    2. Width: 2600 mm
    3. Year: 2010
    4. 8 colors
    5. 8 storage devices plus double creel
  2. Jacquard Specifications

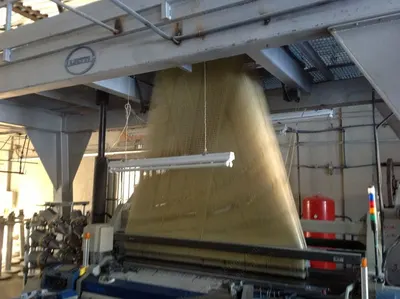

    1. Electric jacquard machine Staubli type LX1602
    2. Frame for 3072 hooks
    3. Completed by 3072 hooks and harness
    4. With springs and 5756 cords
    5. With flyover under jacquards Lietti
  3. Beams And Rollers
    1. Provided for single-section root warp beam, 805 mm: 2 pieces
    2. Provided for the loop warp beam 1000 mm: 2 pieces
    3. Cloth roller: 600 mm
  4. Additional Equipment
    1. Completed PFT, PSO
    2. Interactive display
  5. Electrical And Safety
    1. In accordance with the security CE
    2. 380 V - 50 Hz
