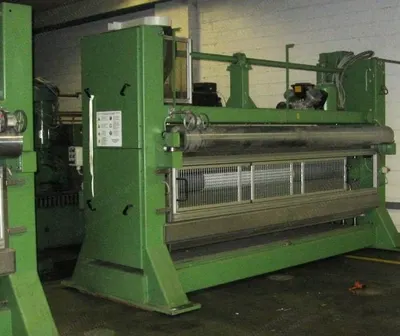

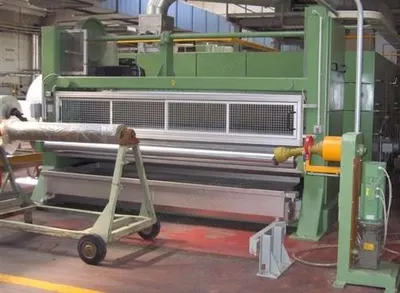

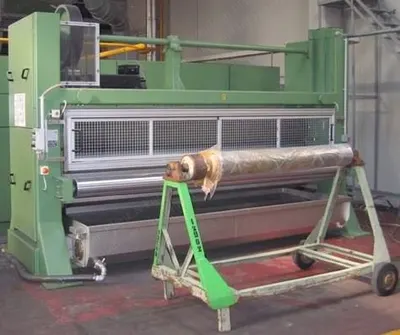

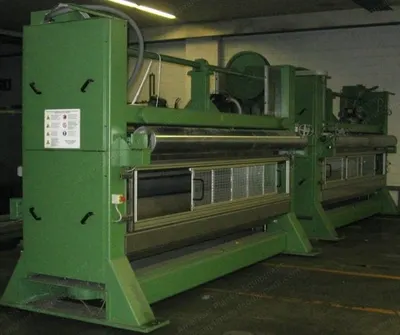

Equipressure foulard with maximum pneumatic pressure of 26,000 kg
Frame in painted steel sheet

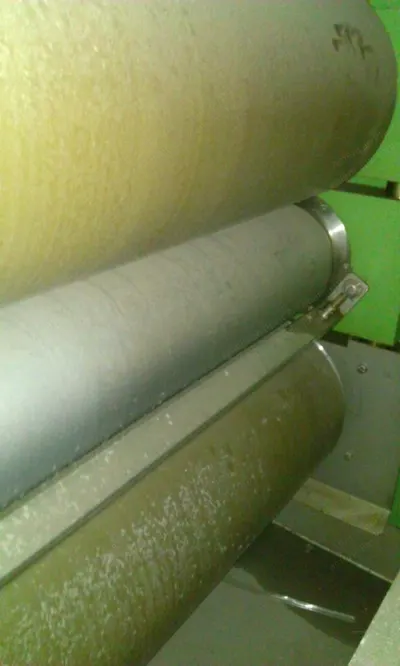

Upper and lower cylinders: 370 mm diameter
With internal compensation axes
Covered in rubber, 90 shore hardness
Central cylinder: 230 mm diameter, chrome and satin finish
Parallel cylinder grinding
1 return cylinder, chrome steel and ground on the fore front
Motor power: 57 kW for the command, using V-belts, the central cylinder
Cylinder 300 mm chrome-plated steel and ground, installed on load cells for adjustment of the shot up to a maximum of 4000 kg mounted on top of the foulard
Cylinders: 3

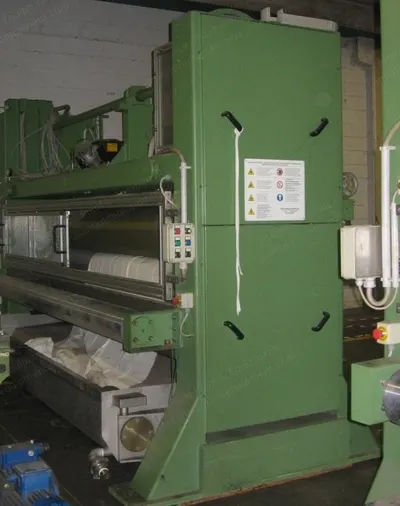

Safety Features
2 handguards in stainless steel
2 security guards, one on entry and one on output
Consisting of sliding doors manually guided
Each door equipped with its own switch with electromagnetic lock
Safety circuit is fully redundant and includes two security modules in dual channel with feedback control
A sensor shaft is stopped and two contactors for motors
On the structure of screens are also fitted with two emergency buttons
