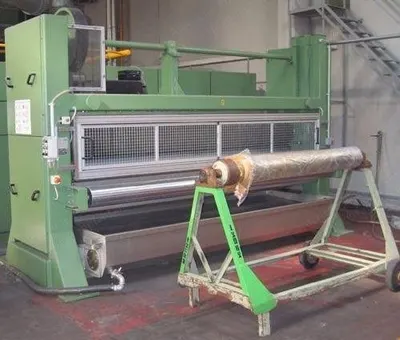

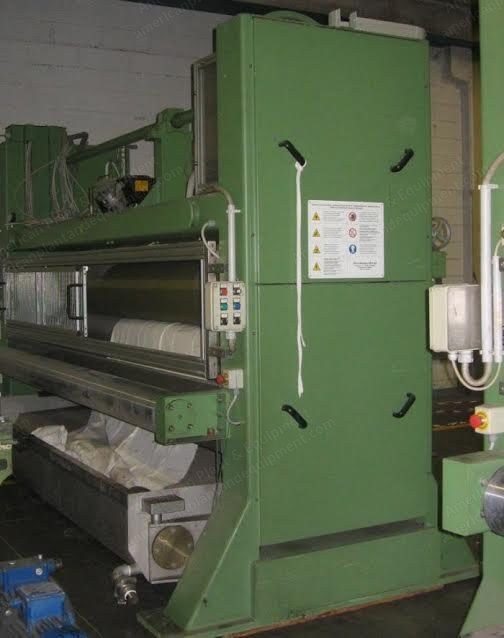

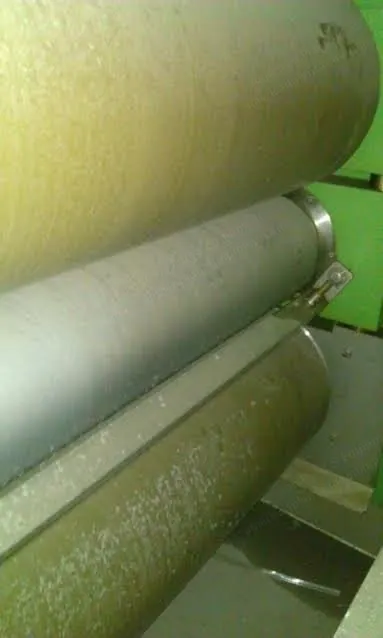

Description Overview Roller squeezers type FMC-3 Year 2004 Three cylinders Dimensions Width 3600 mm Working width 3400 mm Upper and lower cylinders 370 mm diameter Central cylinder diameter 230 mm, chrome and satin One return cylinder, chrome steel and ground on the fore front Cylinder 300 mm chrome-plated steel and ground Construction Frame in painted steel sheet Upper and lower cylinders with internal compensation axes Covered in rubber 90 shore hardness Parallel cylinder grinding Equipressure foulard Drive and Power Motor power of 57 kW for the command, using V-belts, the central cylinder Safety Features Two handguards in stainless steel Safety with two security guards, one on entry and one on output Consisting of sliding doors manually guided, each door equipped with its own switch with electromagnetic lock Safety circuit is fully redundant and includes two security modules in dual channel with feedback control A sensor shaft is stopped and two contactors for motors On the structure of screens are also fitted with two emergency buttons Condition and Included Installed on load cells for the adjustment of the shot up to a maximum of 4,000 kg mounted on top of the foulard Maximum pneumatic pressure 26,000 kg
