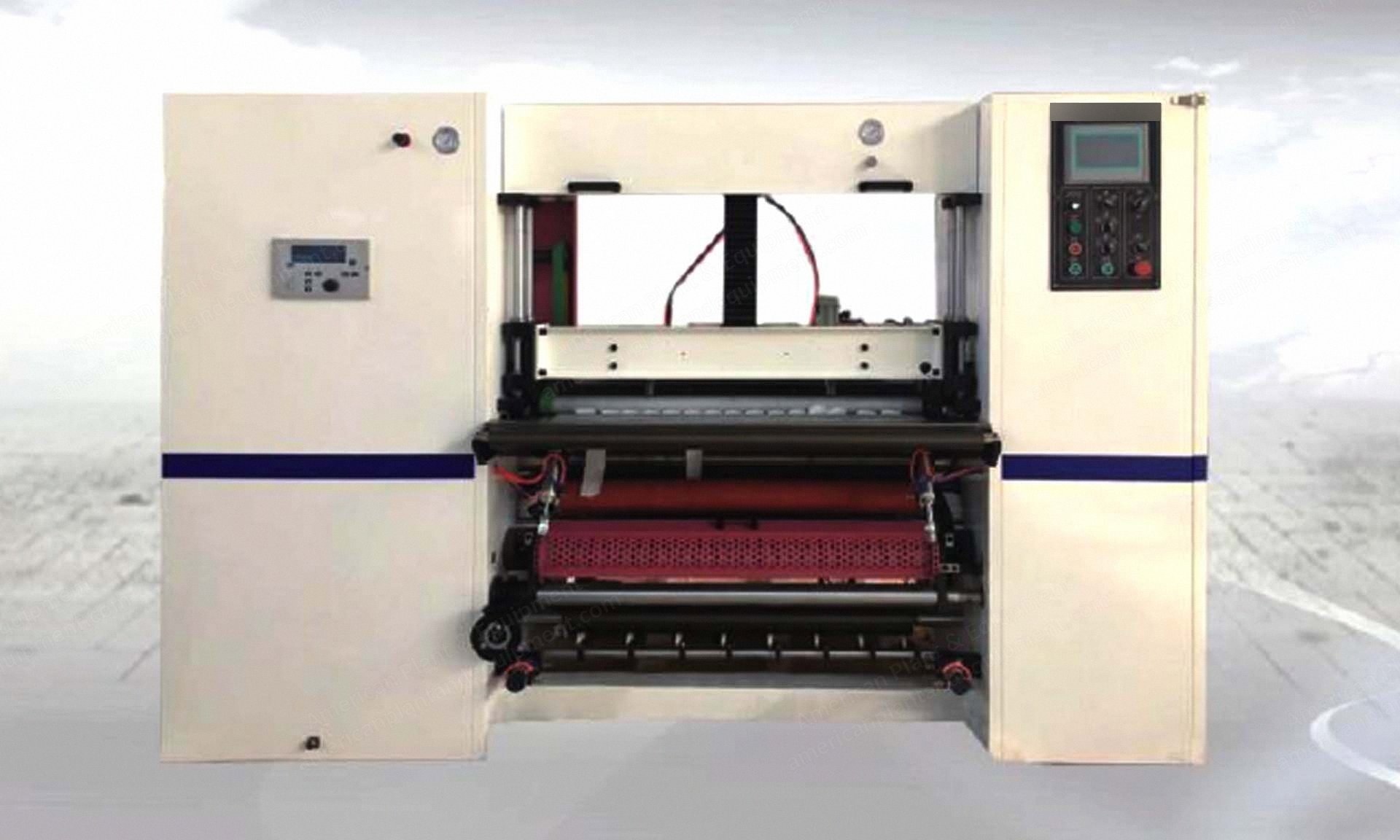

NovaStar, SR212, Shaftless Thermal Paper Slitter Rewinder, Width 900mm, Max Speed 210m/min (New)

NovaStar, SR212, Shaftless Thermal Paper Slitter Rewinder, Width 900mm, Max Speed 210m/min

Description

  1. Overview
    1. Shaftless thermal paper slitter rewinder
    2. Model SLT-900C
    3. Width: 900 mm
    4. Can slit jumbo rolls
    5. Minimum width: 30 mm
    6. Diameter: 250 mm
    7. Max. machine speed: 210 meters per minute
  2. Technical Parameters
    1. Max. unwinding width: 900 mm
    2. Max. unwinding diameter: 800 mm
    3. Max. rewinding diameter: 200 mm
    4. Min. slitting width: 30 mm
    5. Max. machine speed: 210 m/min
    6. Main power: 2.2 kW
    7. Unwinding shaft: shaftless unwinder
    8. Rewinding shaft: 0.5" and 1" each have two pieces
    9. Weight: 1300 kgs
    10. Dimension: 2000 x 1700 x 1500 mm
  3. Control System
    1. Includes Siemens PLC control system and touch screen; all parameters are displayed on the monitor, and the machine will operate automatically
    2. The main motor is controlled by Siemens frequency inverter and Yaskawa frequency inverter from Japan
    3. Includes auto meter counter; when reached the setup data, the machine stops and alarms
  4. Material Handling
    1. Includes hydraulic lift-up loading system for heavy materials loading
    2. Equipped with 20 kg/m² re magnetic braking device
    3. Equipped with balance roller to make the surface of paper smoothly
    4. Equipped with ultrasonic analog EPC to keep the material in a very high precision
    5. Includes Tech Mach floating roller constant control from USA to adjust paper tension
    6. All the transmission roller have been dynamic/static balance treated
    7. Includes banana roller to avoid overlap problem
    8. Includes automatic inserting device and adjusting tightness of rewinding materials
    9. Avoiding overlap of paper reels when finishing slitting
  5. Slitting and Finishing
    1. Includes round blades to slit; the lower round blades are fixed by screw and easy to adjust
    2. Includes red marking device to print a red line at the end of paper reel
    3. Equipped with scraper to scrape the ink
    4. Equipped with emergency switch
    5. Equipped with 1.5 kW air blower for wasting materials edge trimmer
